1970 Blown Big Block Plymouth Duster

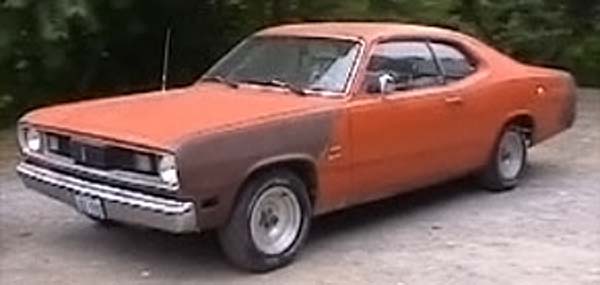

Before shot. Time to get the ugly out.

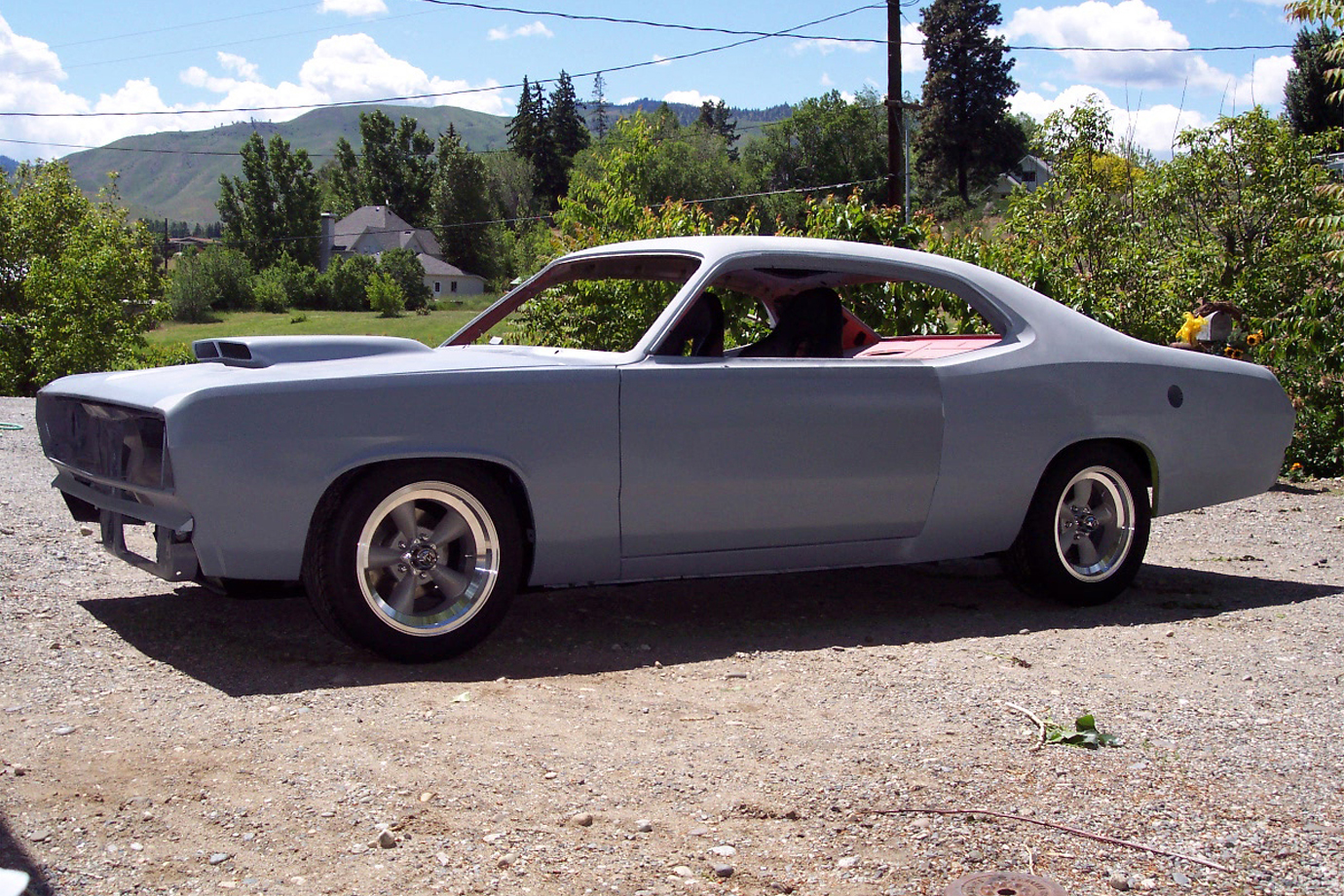

All body work completed and mocked up for fit

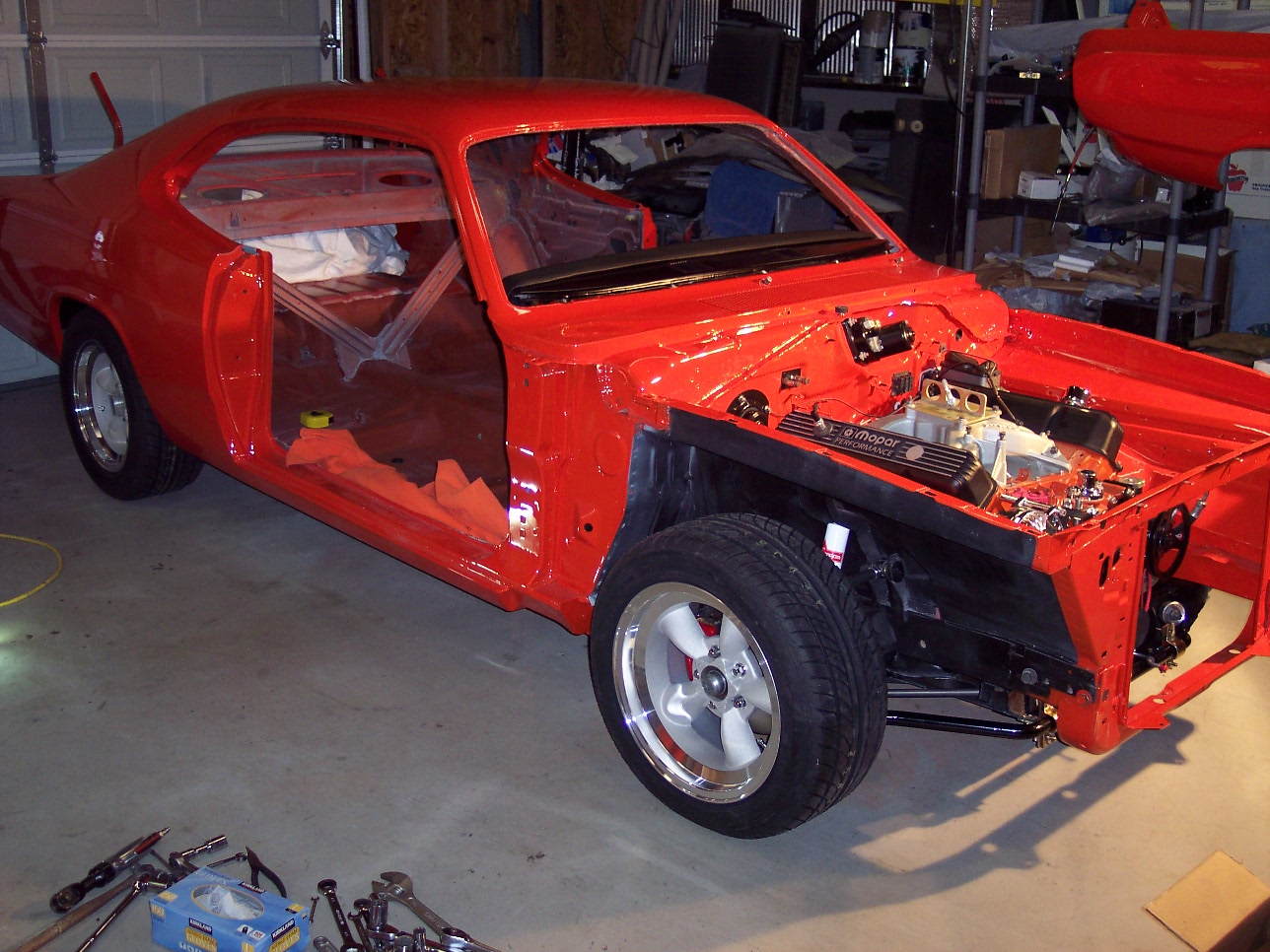

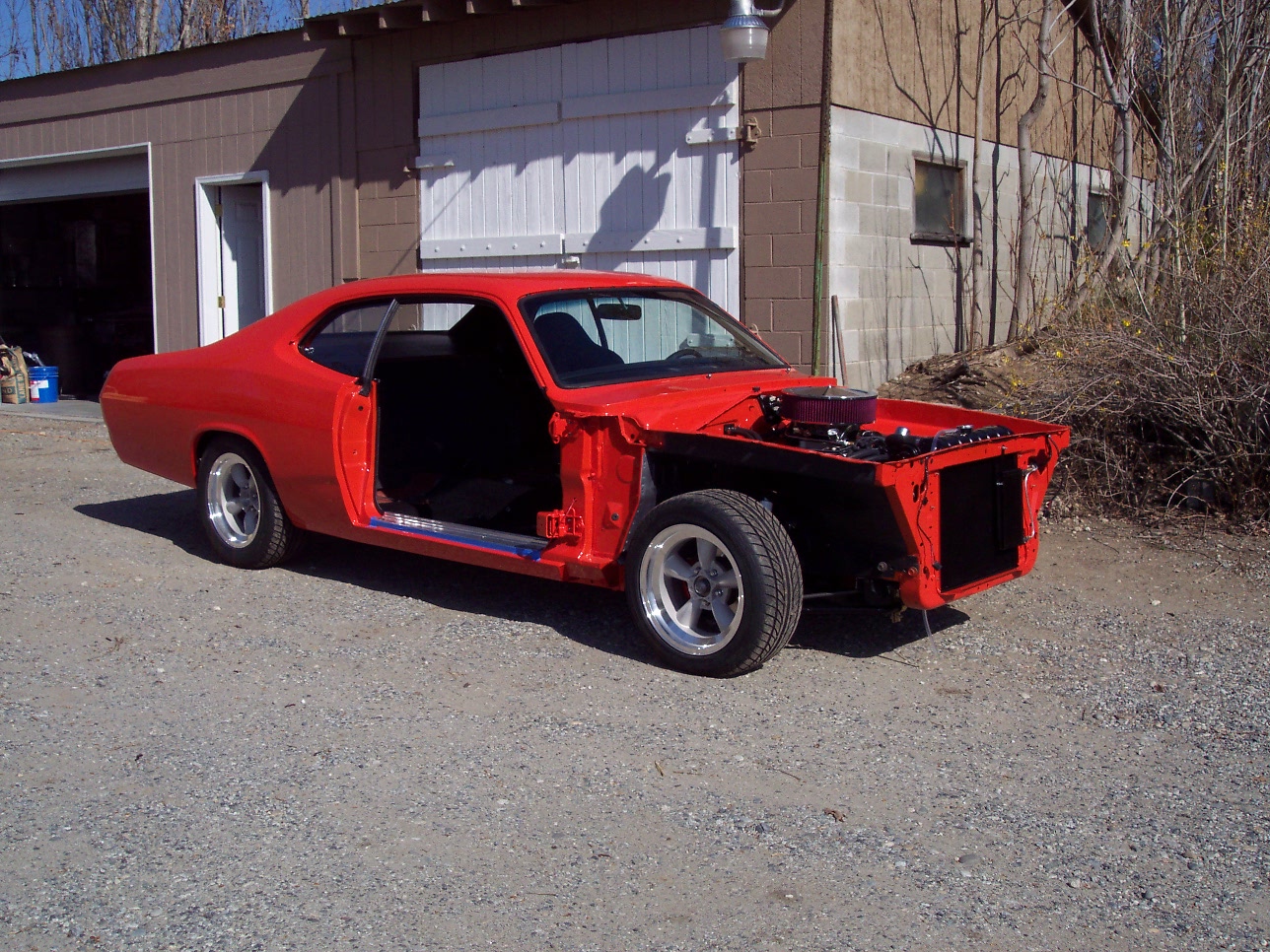

Reassembly begins after paint

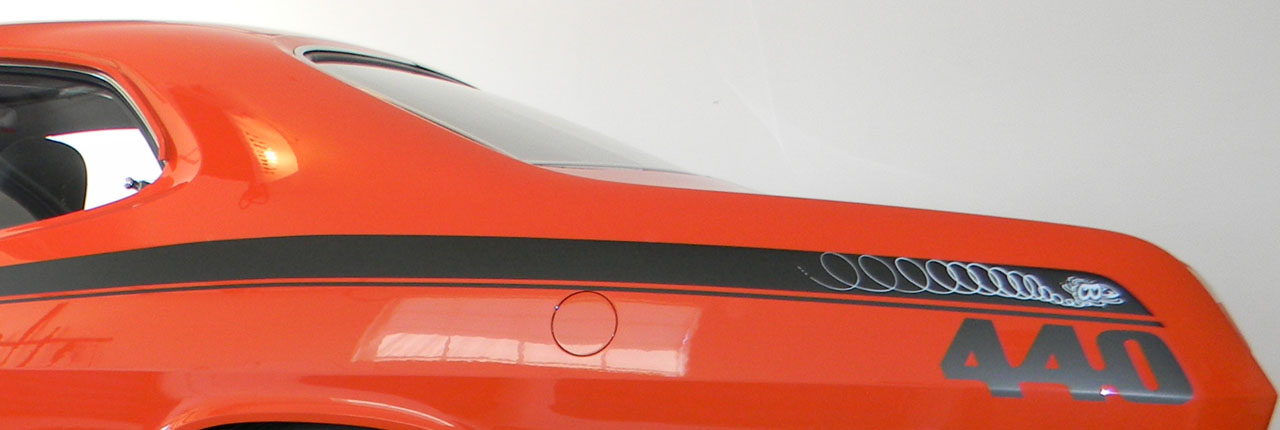

Custom fuel filler door replaced the gas cap wart.

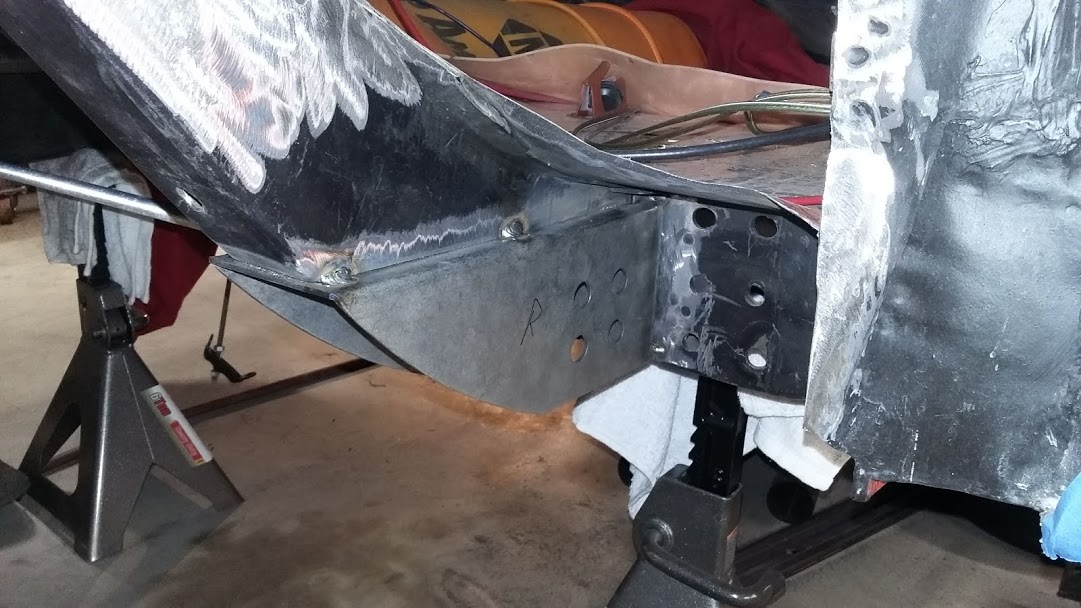

Frame rail cut and spring relocation box positioned

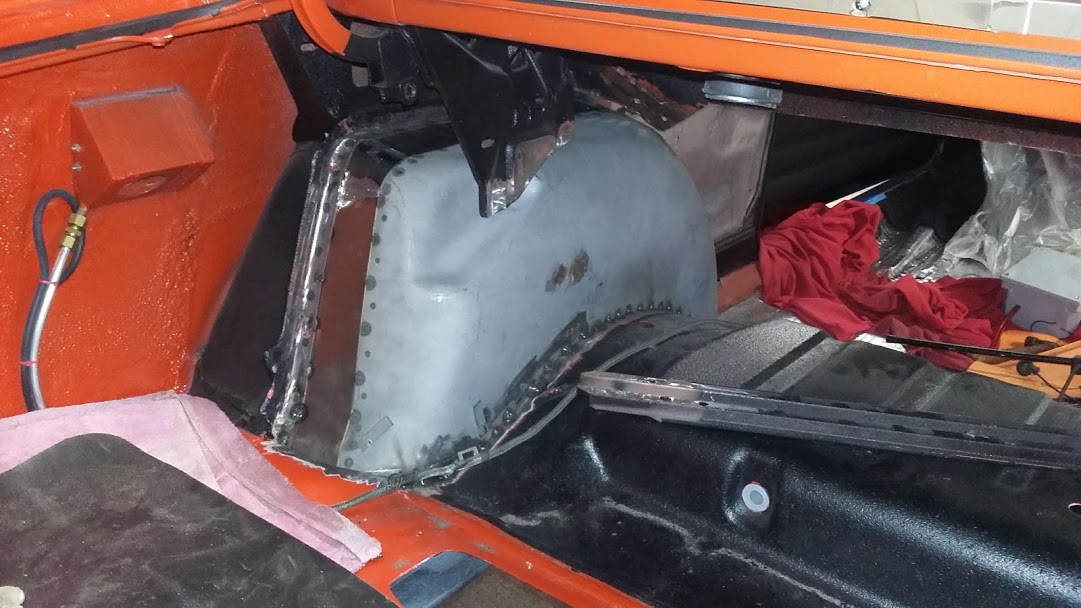

Wheel well moved over 3" to frame rail and gap filled

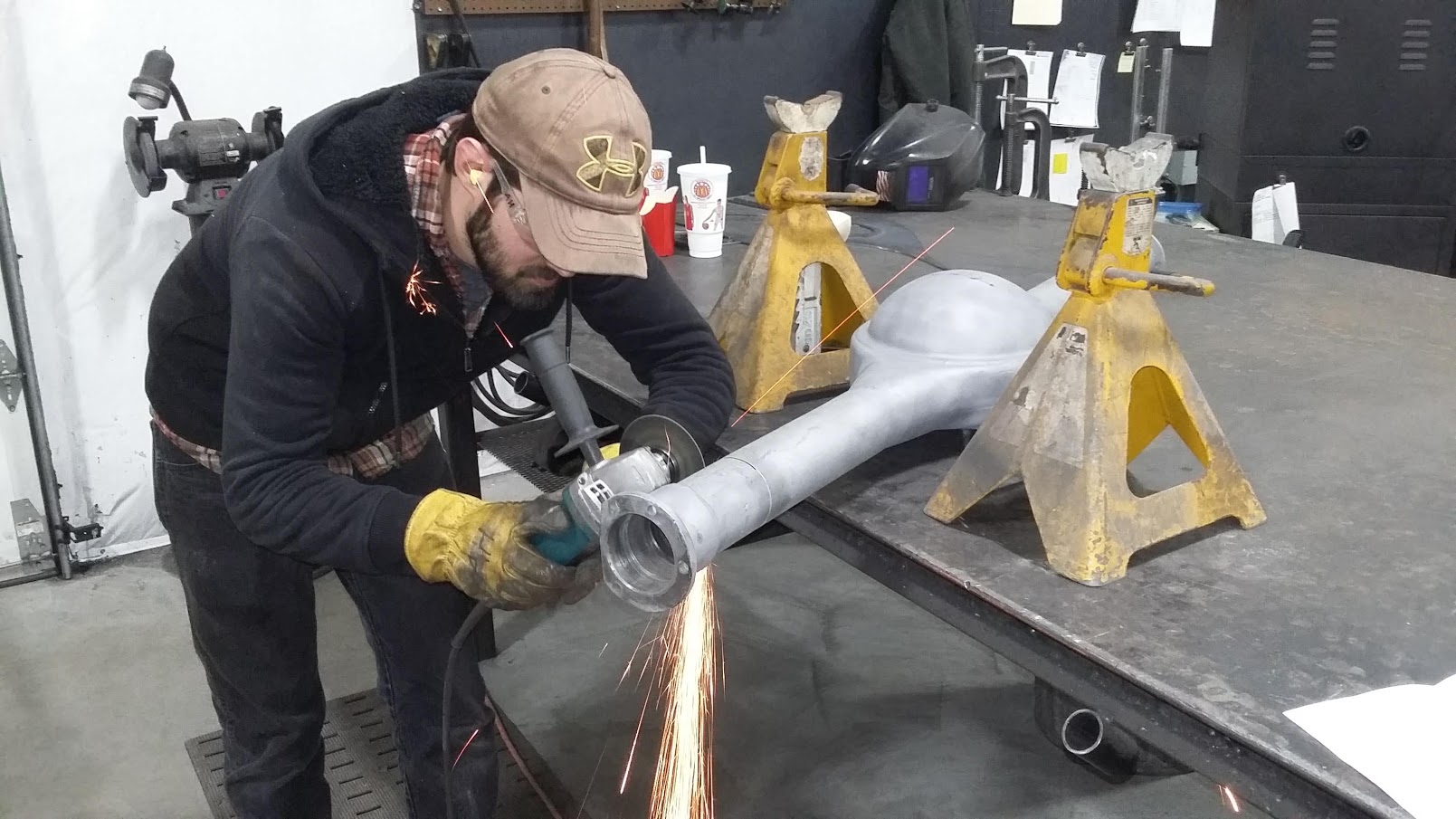

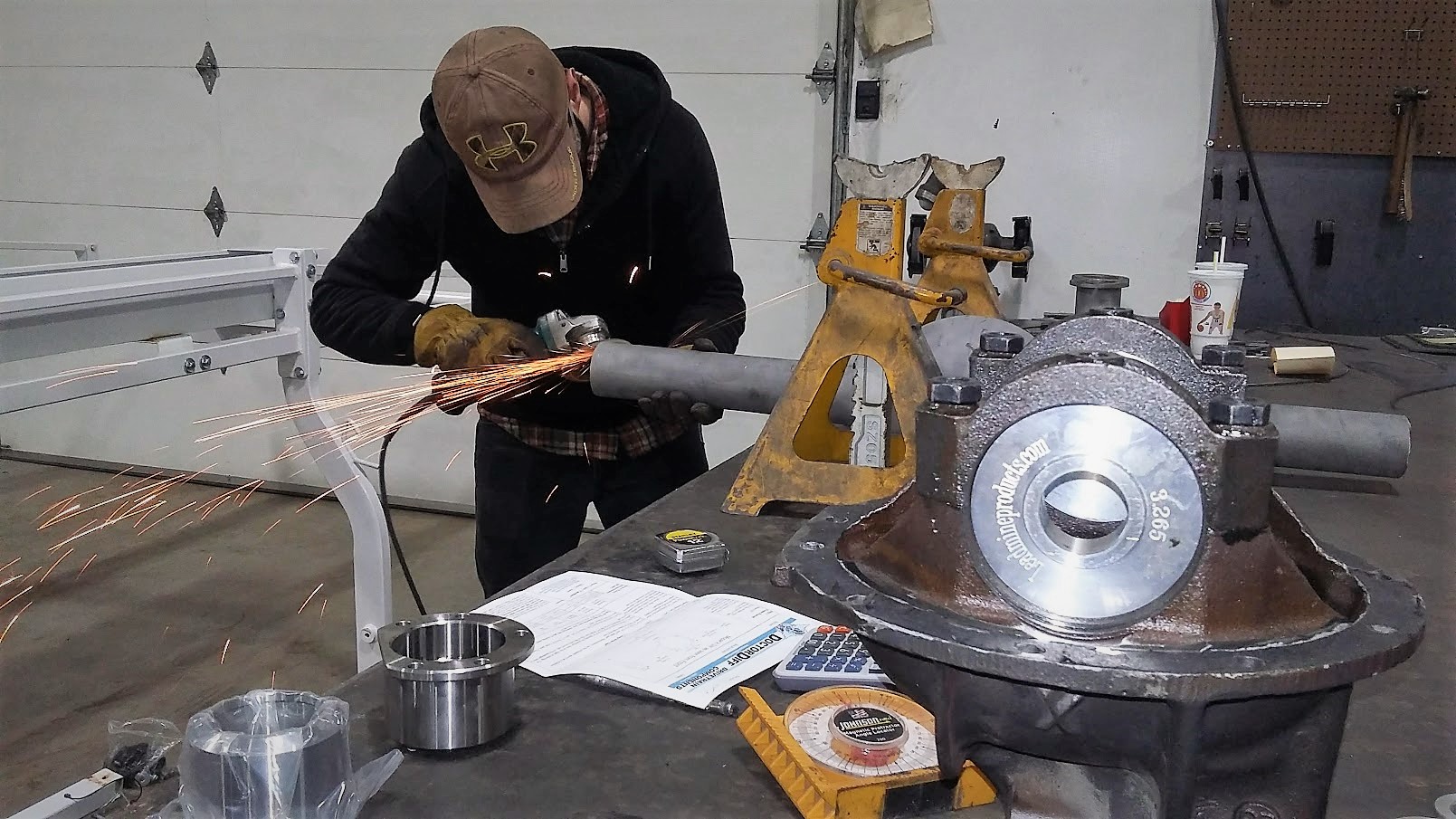

Austin cuts the end of the axle housing for narrowing

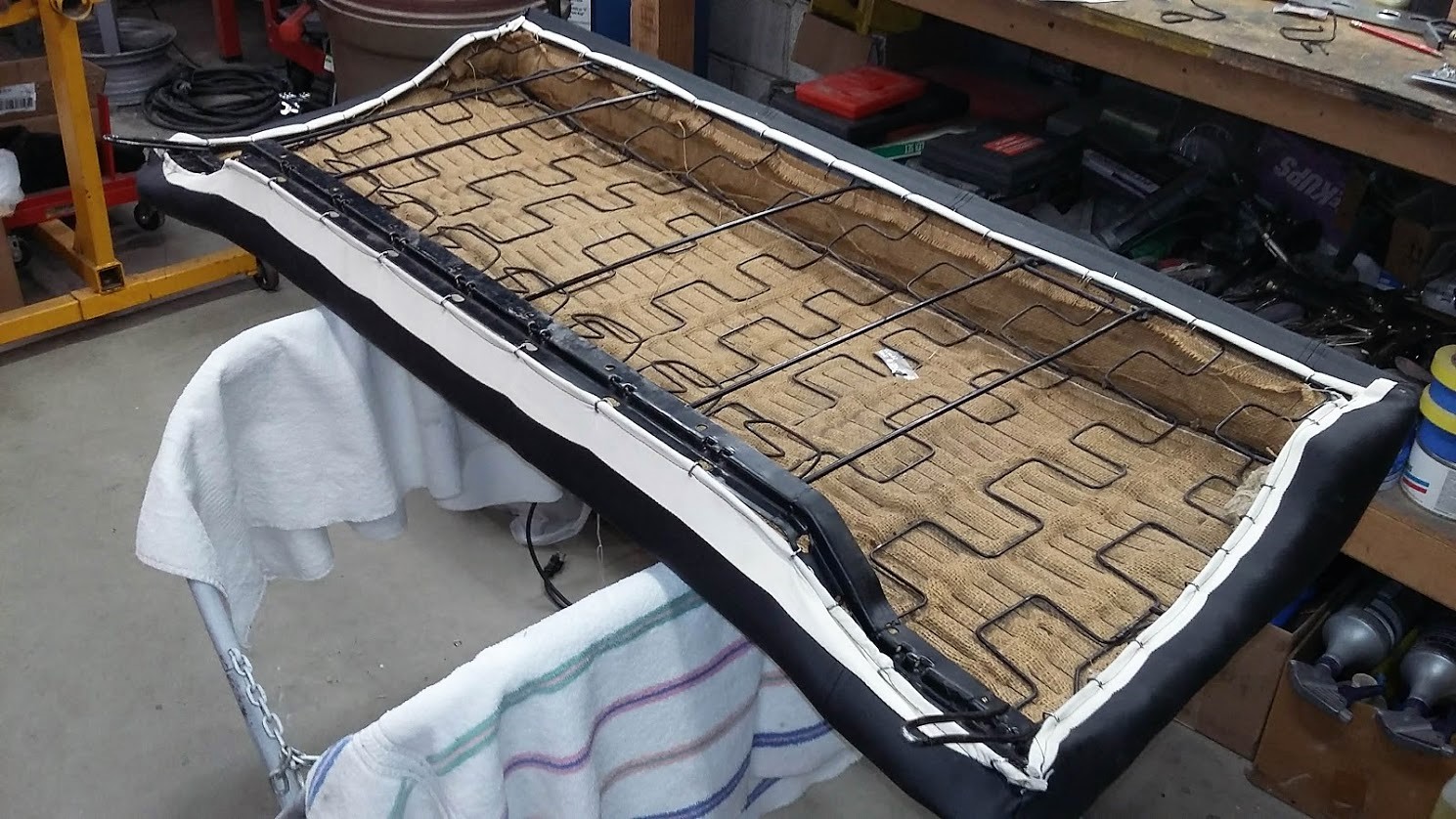

Modified rear seat back required for mini-tubs. Upholstery hog-ringed back in place

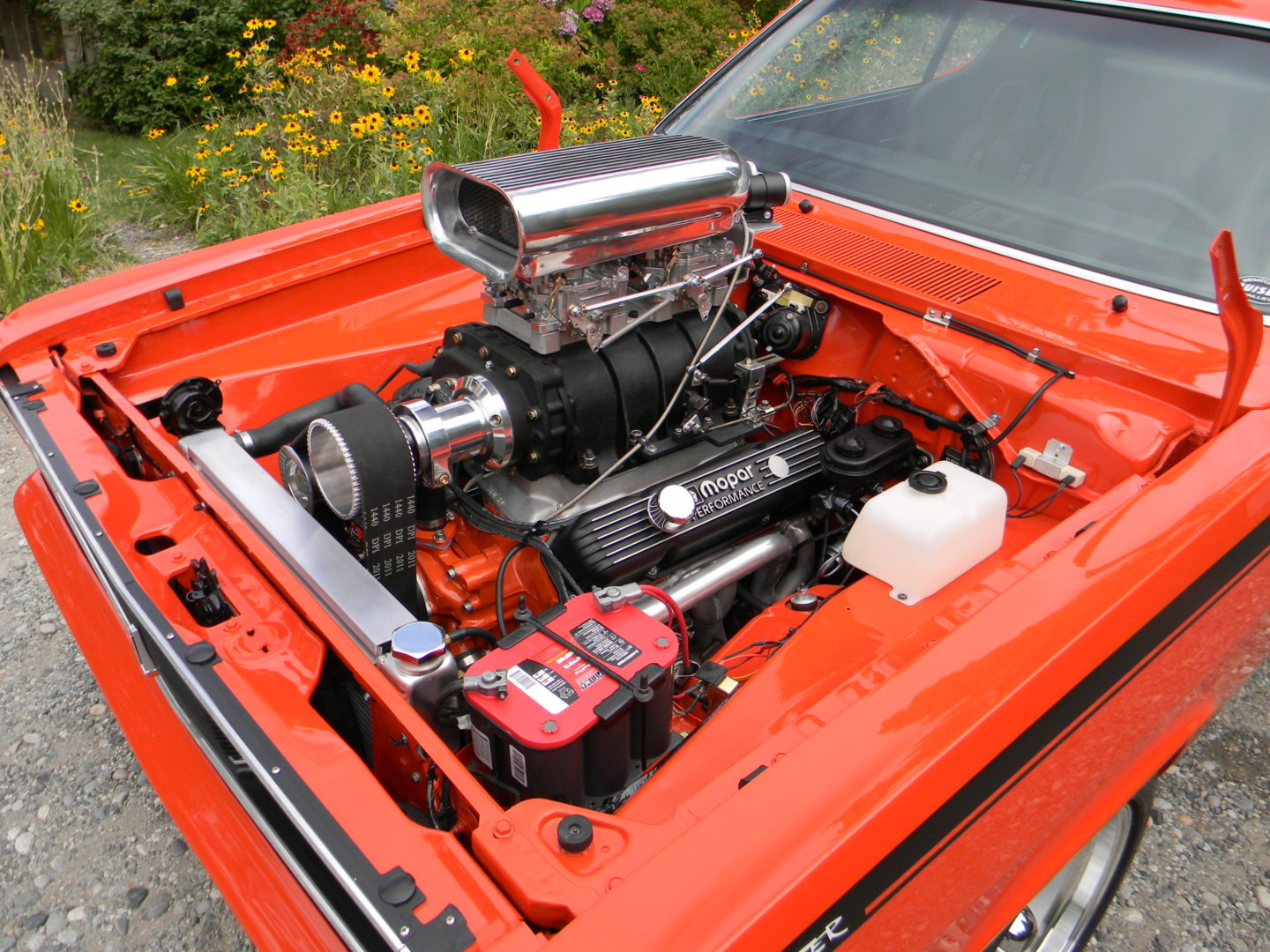

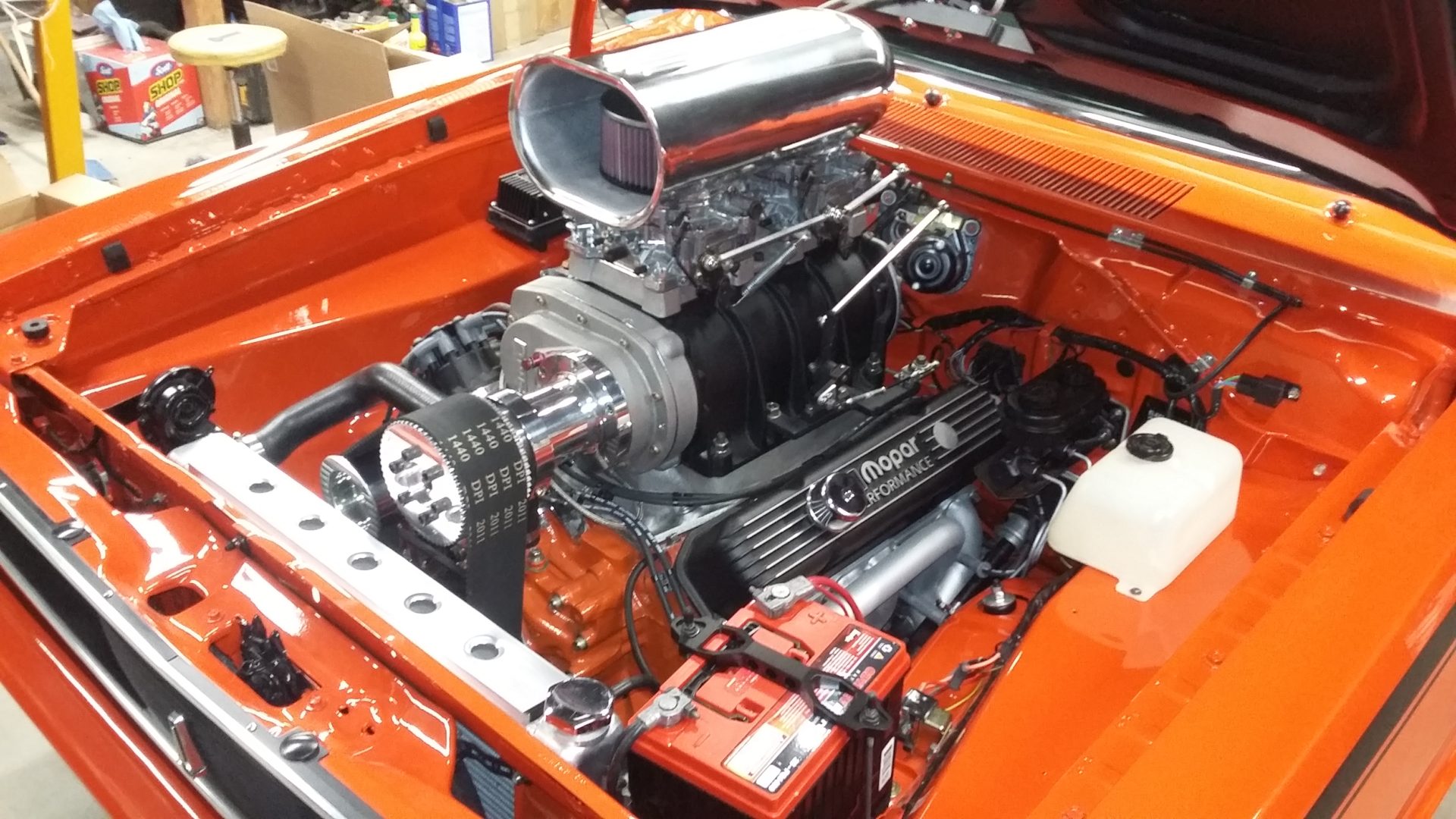

Engine bay after upgraded ignition. Radiator cover has been dimpled died.

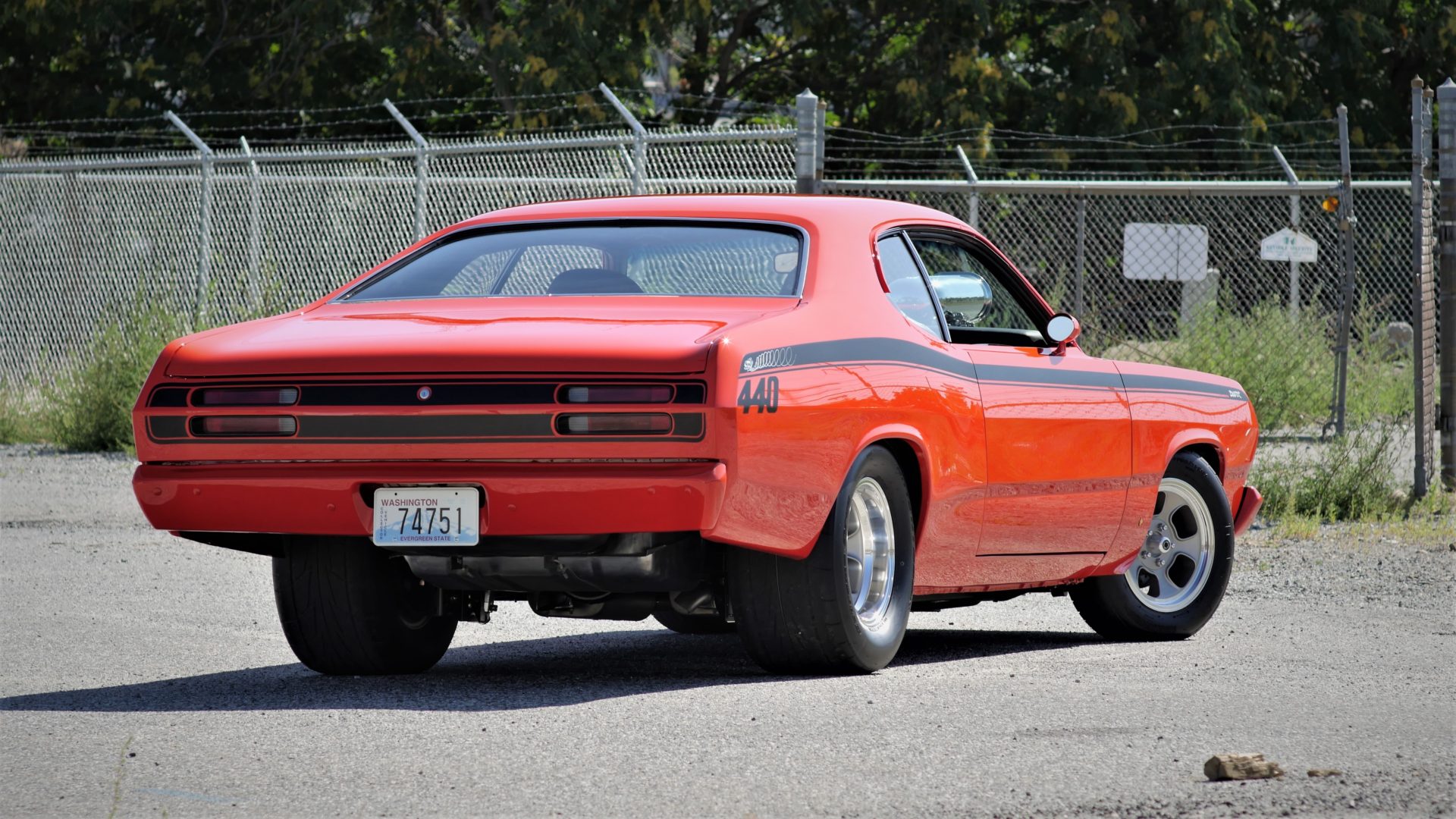

Booty shot

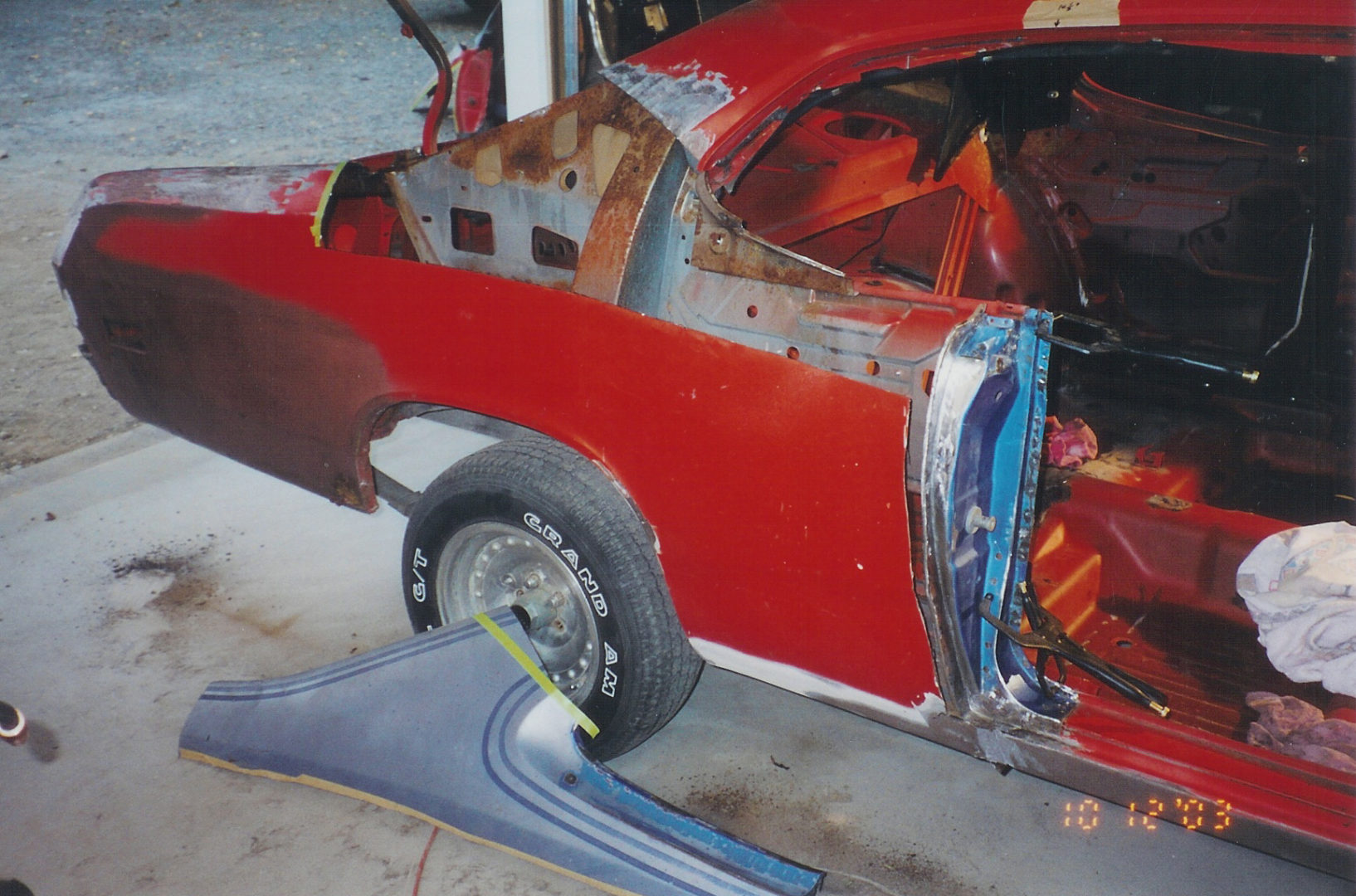

Repairing previous body damage repairs. Door pillar replaced along with sail panel section.

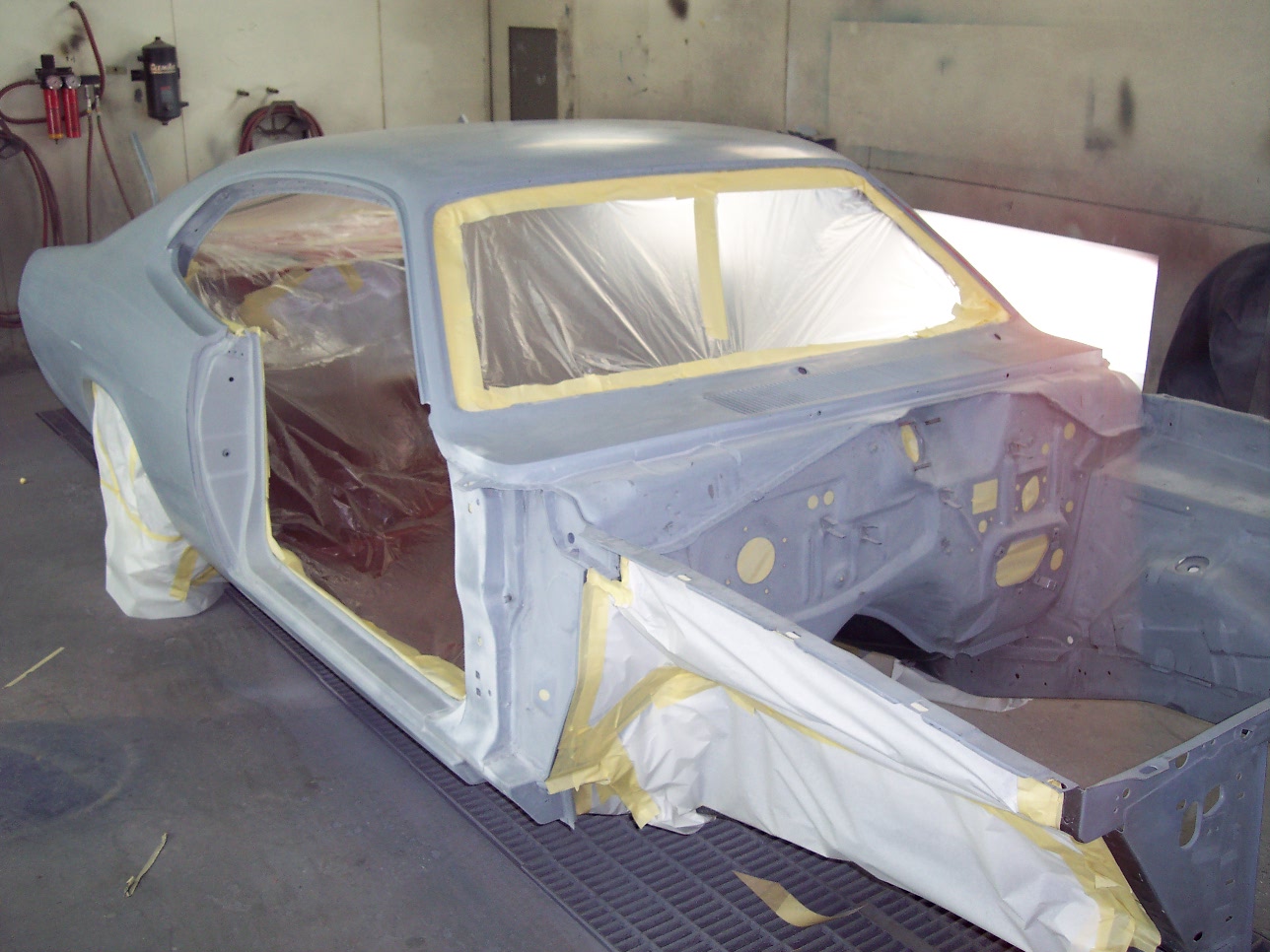

In the paint booth, masked and ready for paint

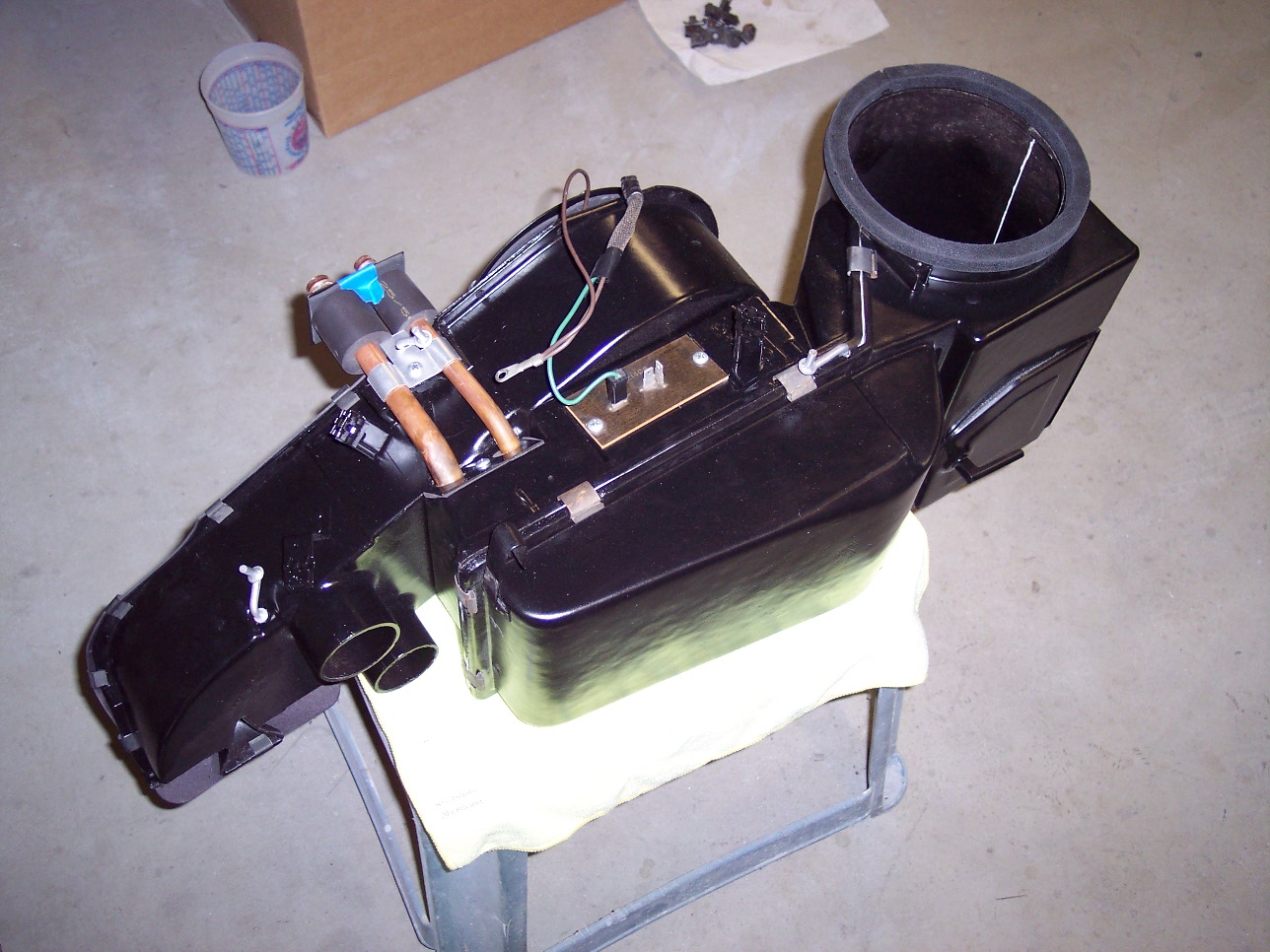

Heater box assembly rebuilt
Ready for initial test drive

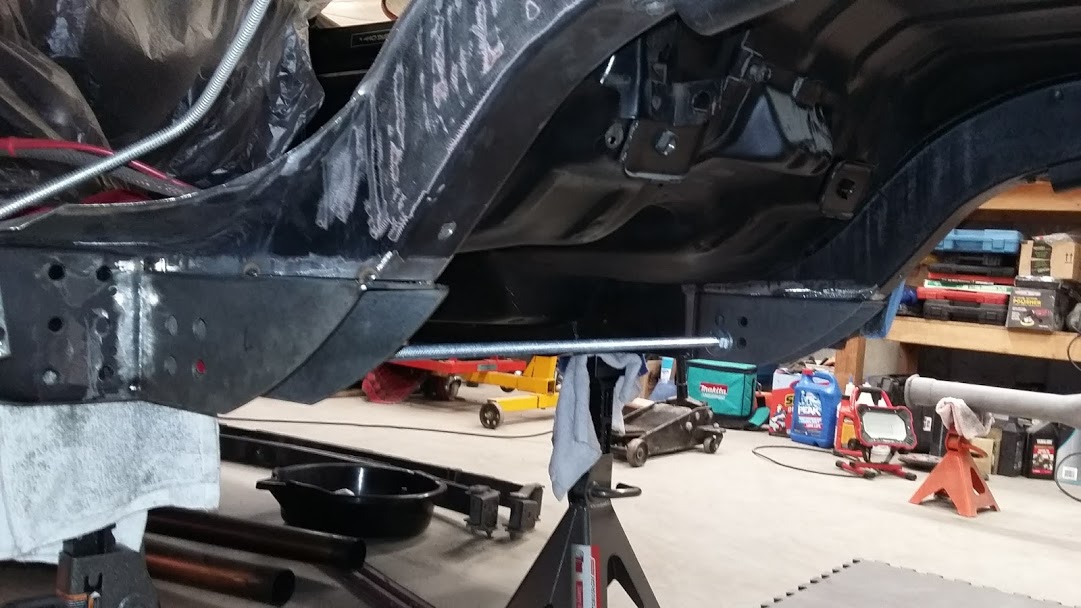

Frame rails cut and both spring relocation boxes located
Wheel well moved over 3" to frame rail and gap filled
Austin bevels cuts in preparation for welding new ends

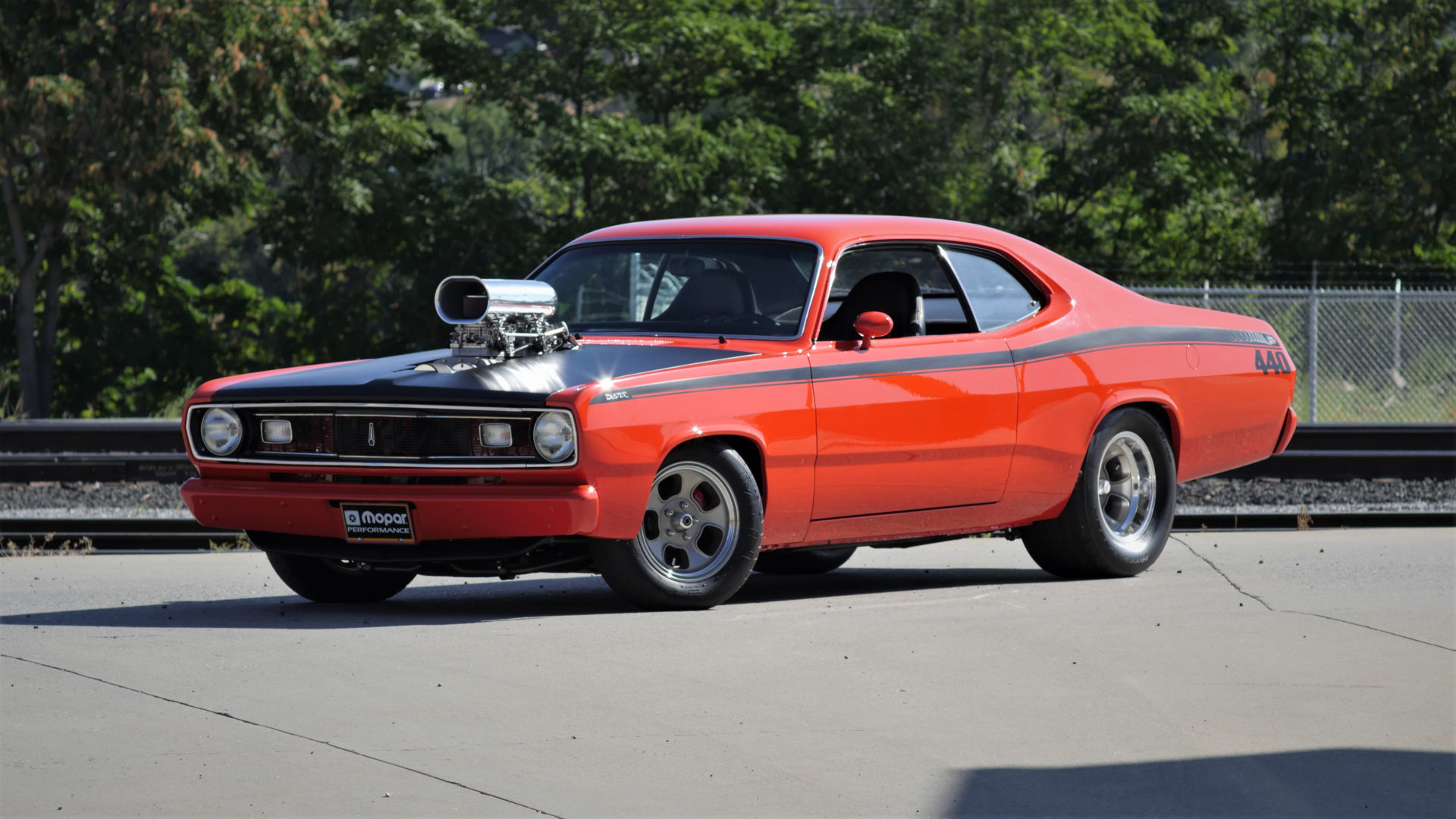

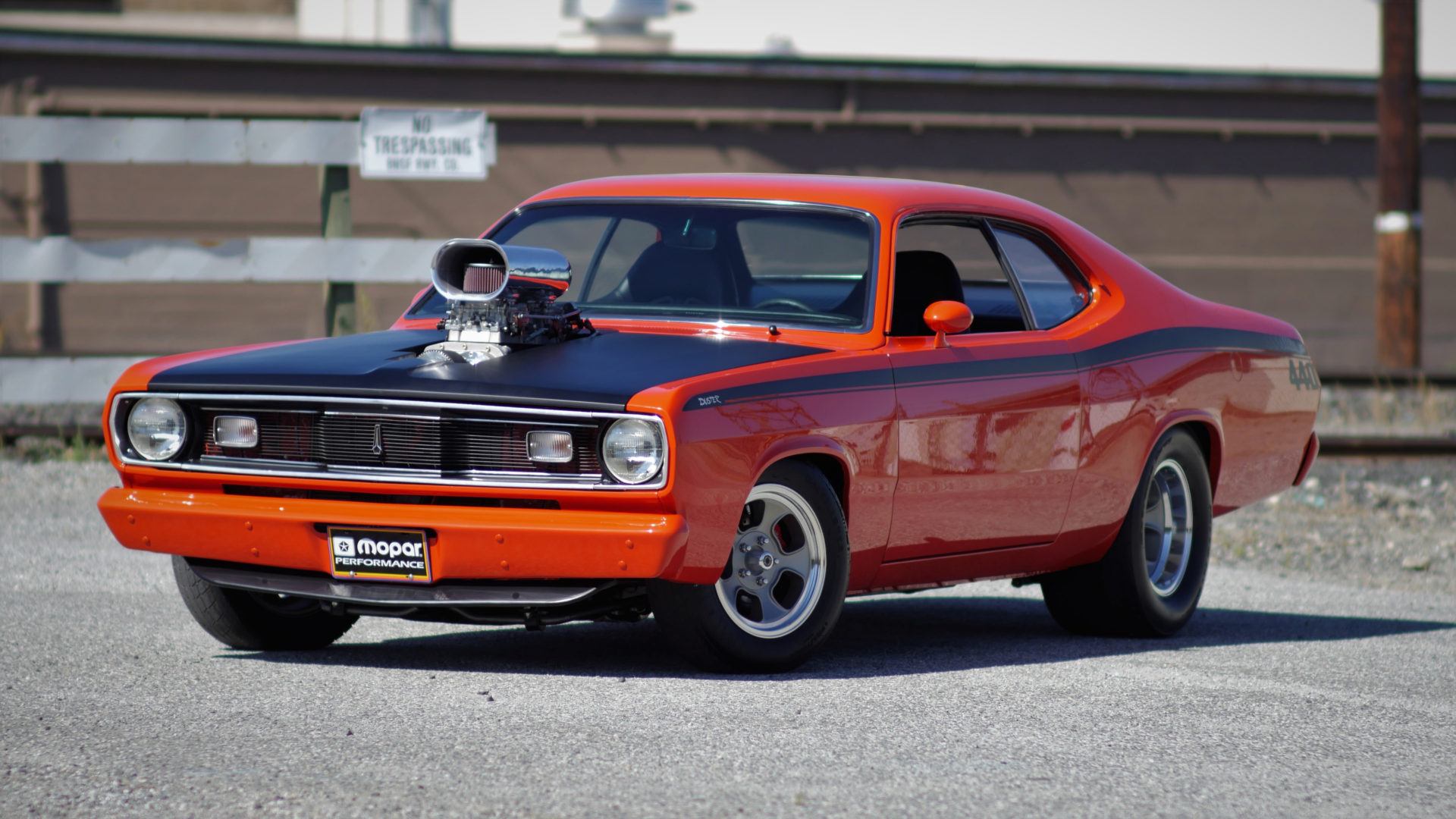

Blown Duster out for test

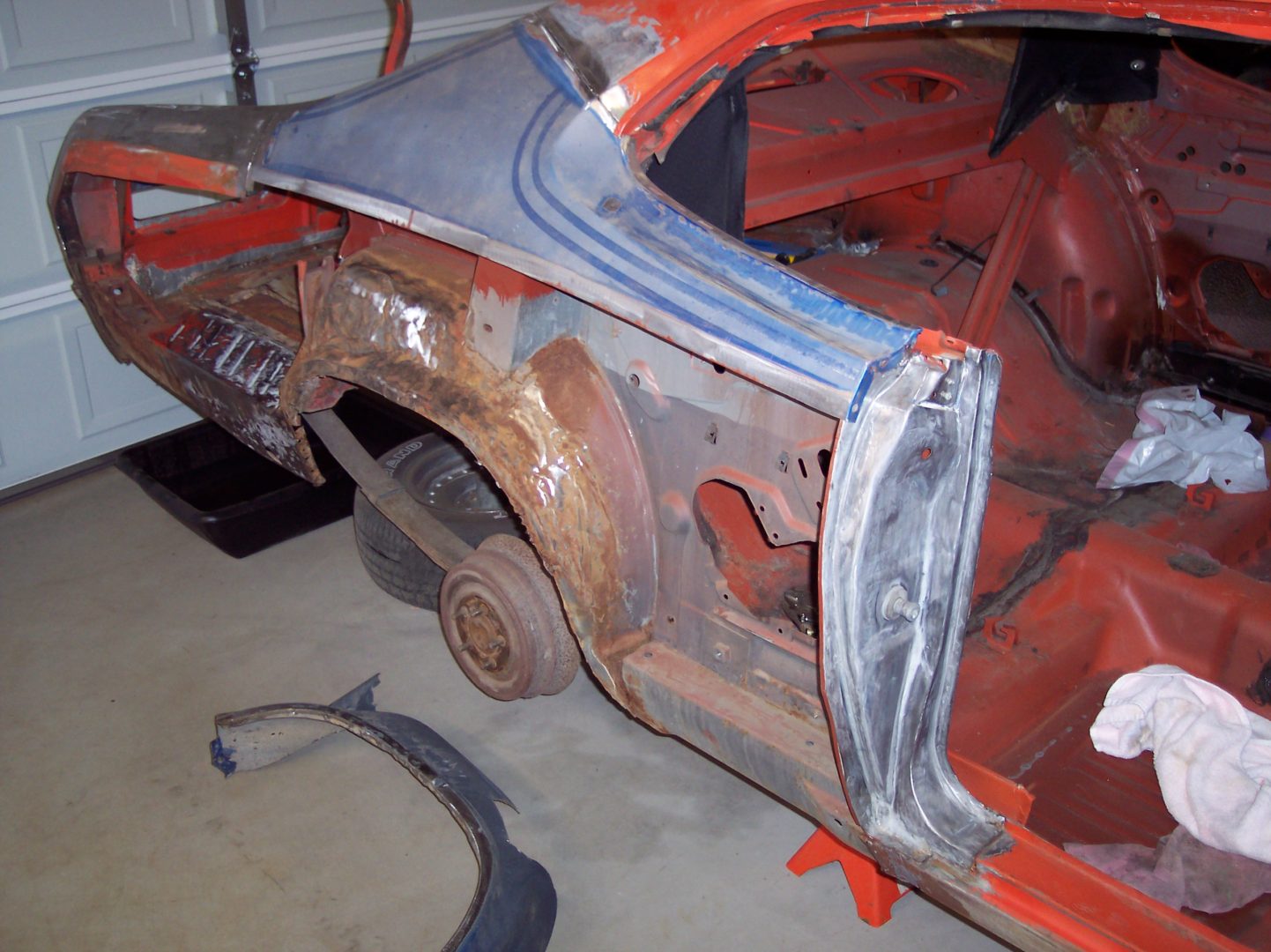

Inner wheel house needs a section replaced along with quarter skin.

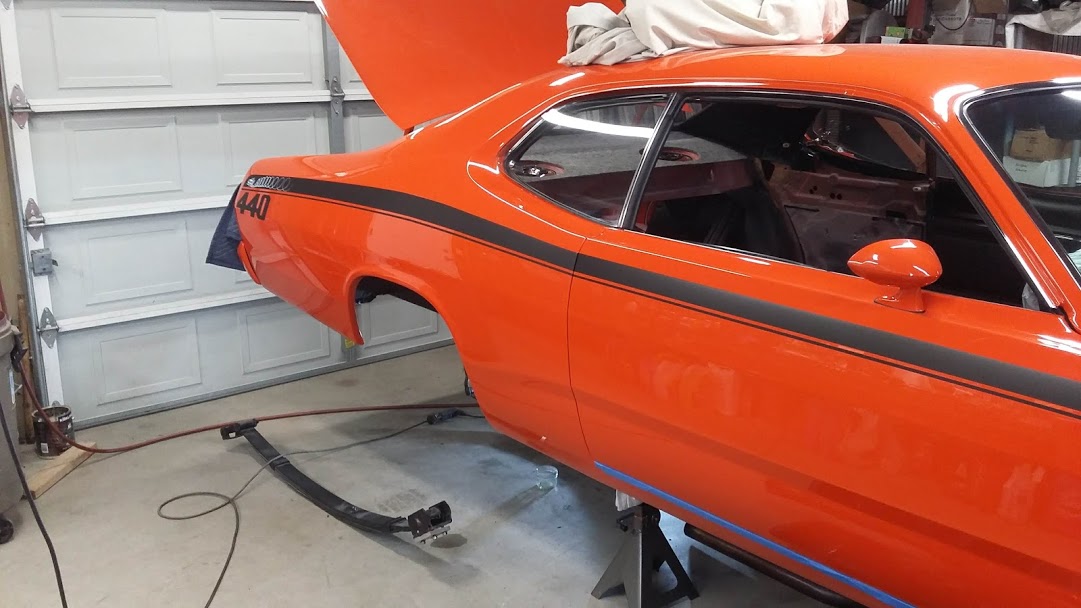

Body painted

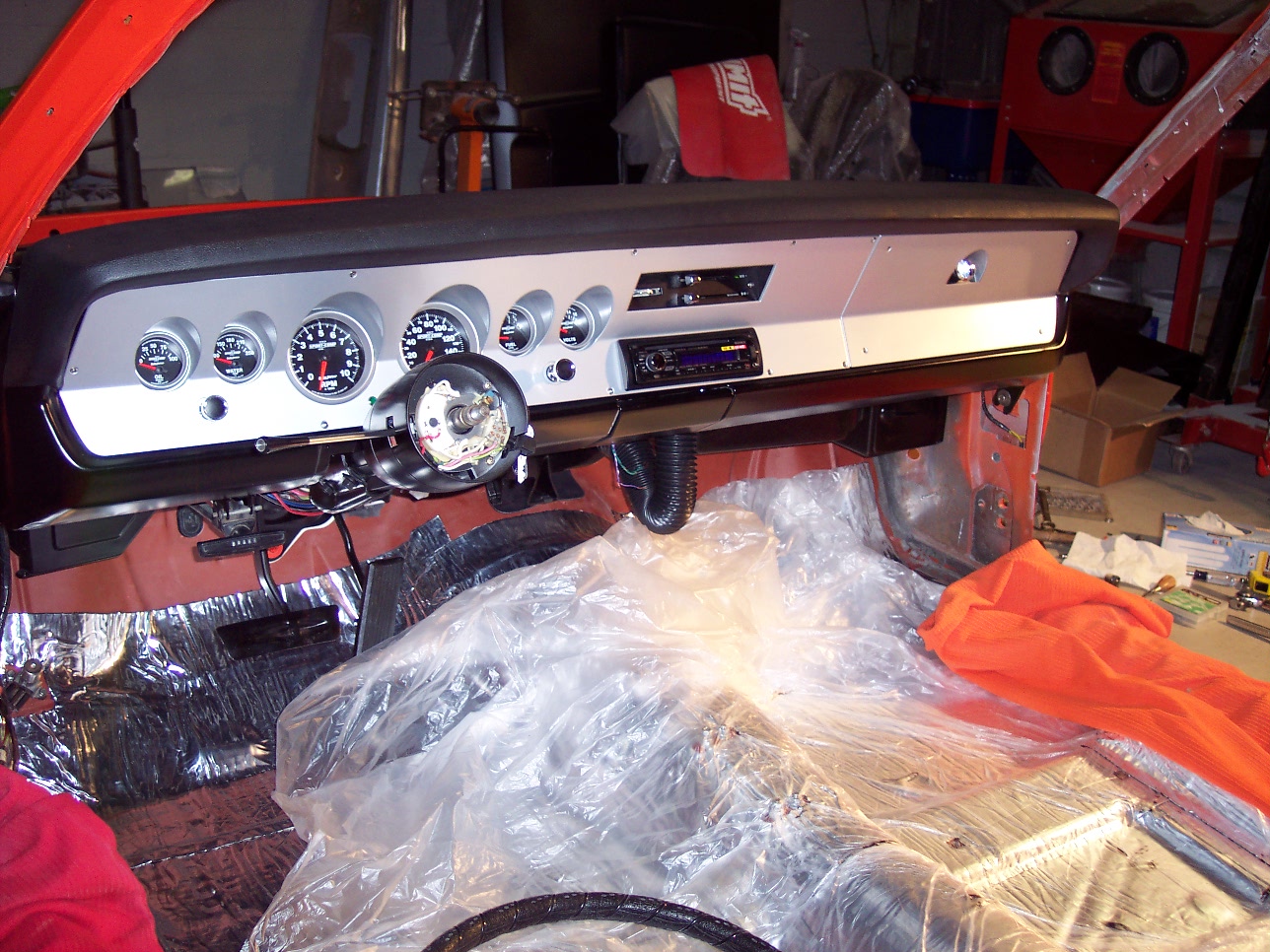

Custom dash with Auto Meter gauges
Rear suspension coming out for upgrades

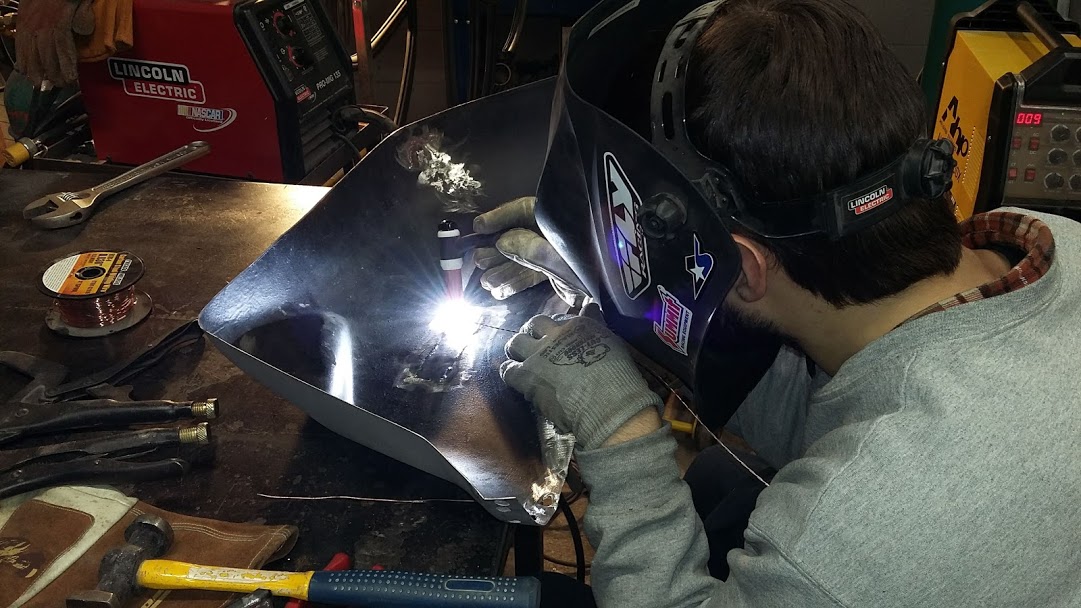

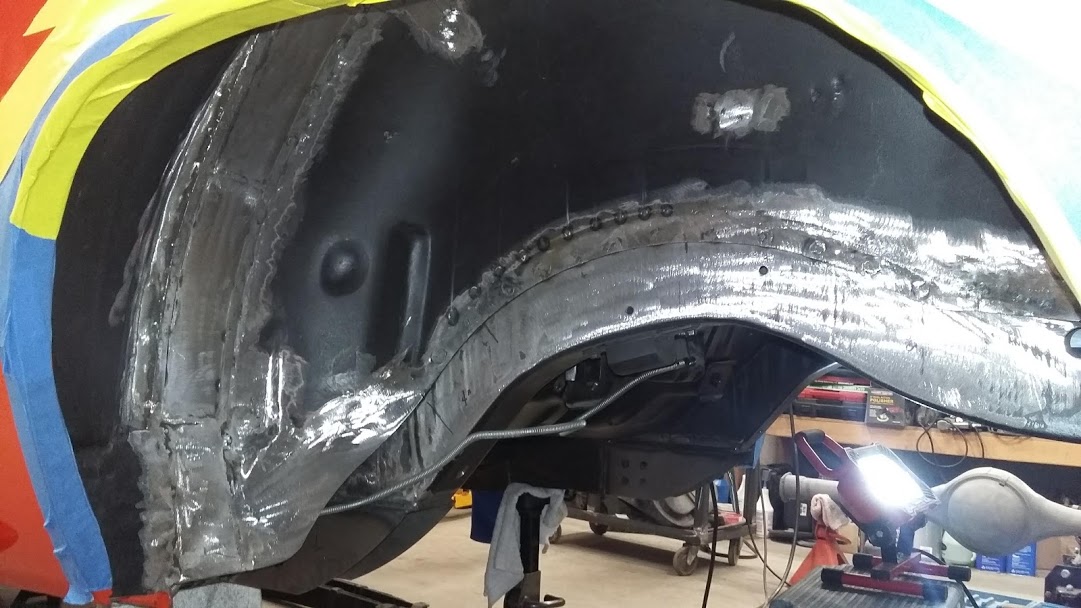

Austin TIG welds repair to wheel well

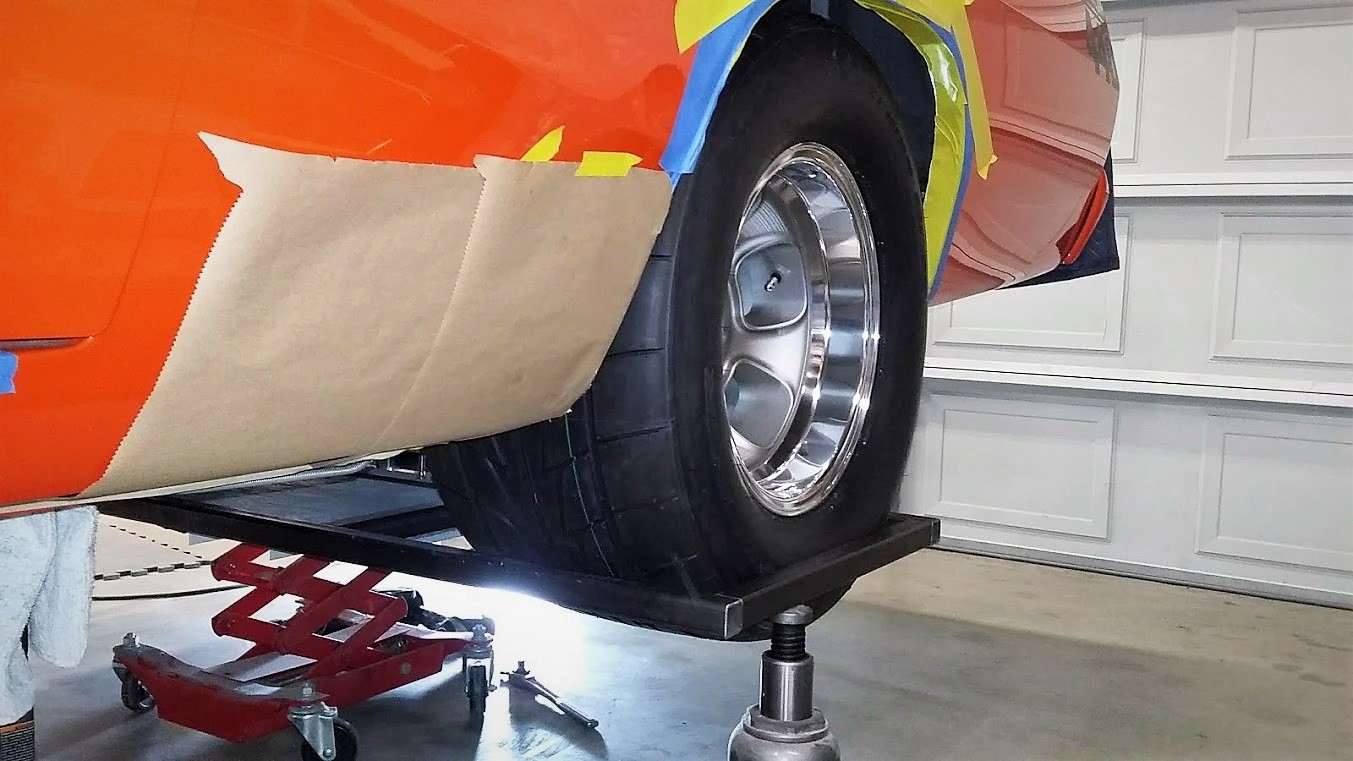

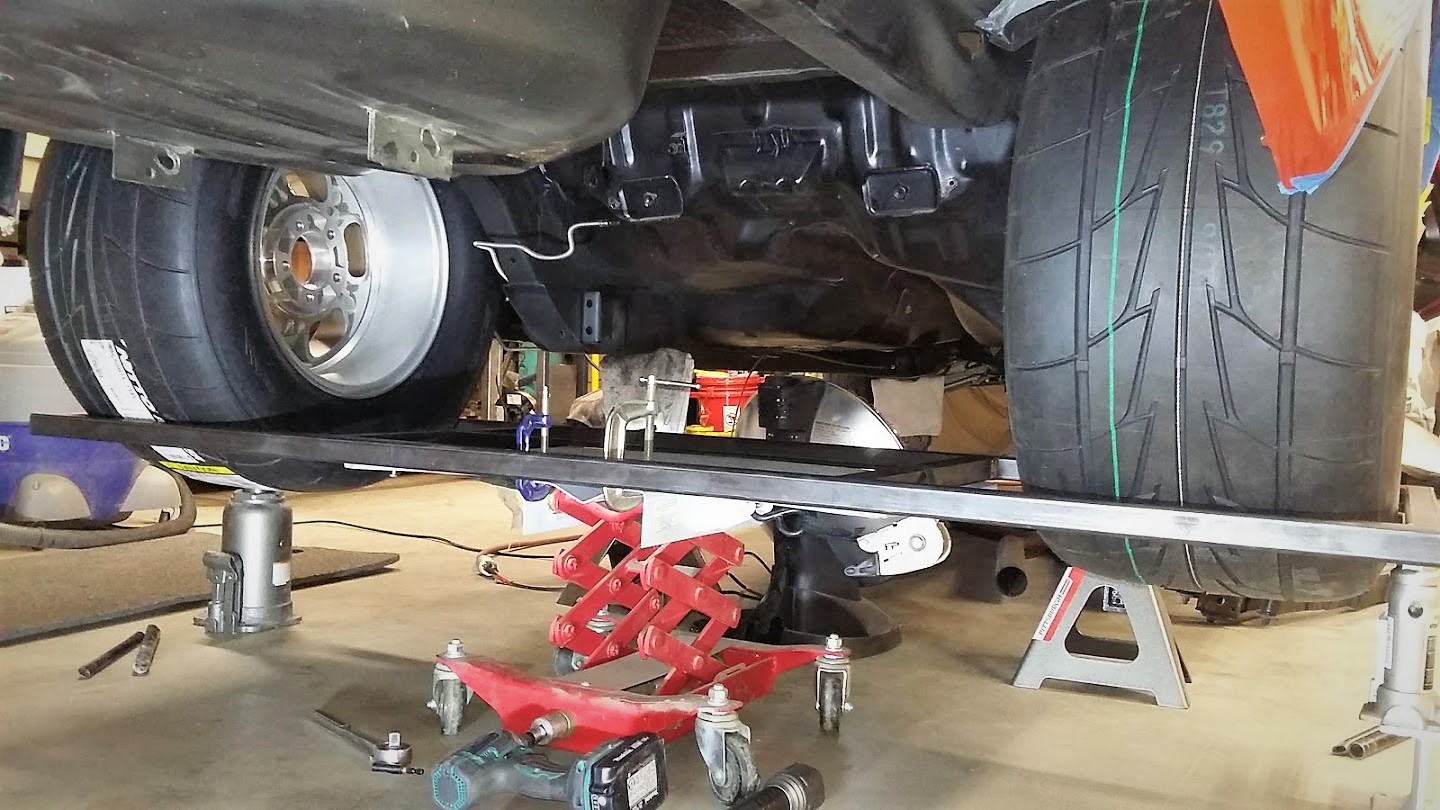

325 tire and small backspace wheels are mocked into position to measure for axle width

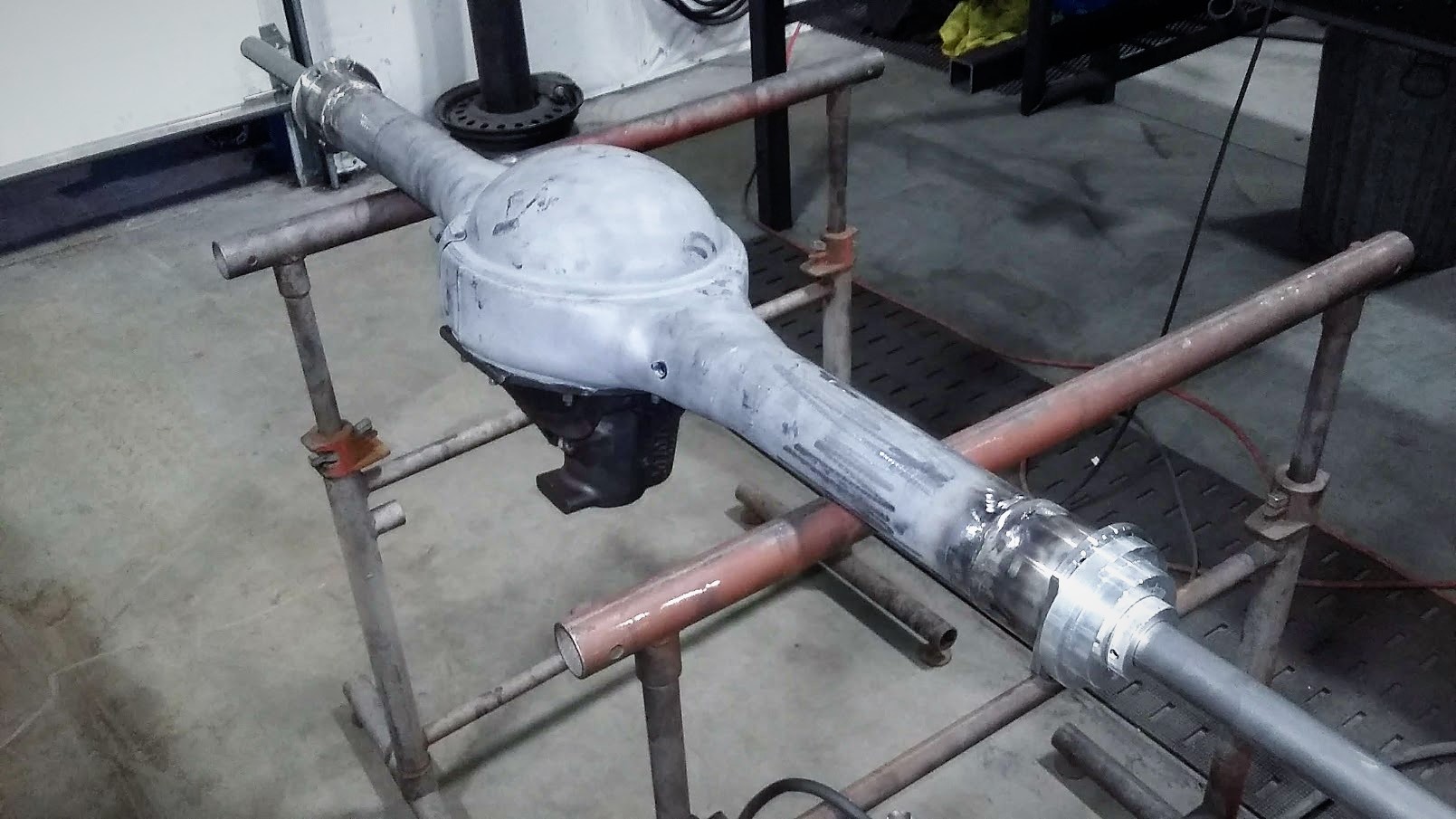

Axle housing narrowed with new ends held in place with alignment jig

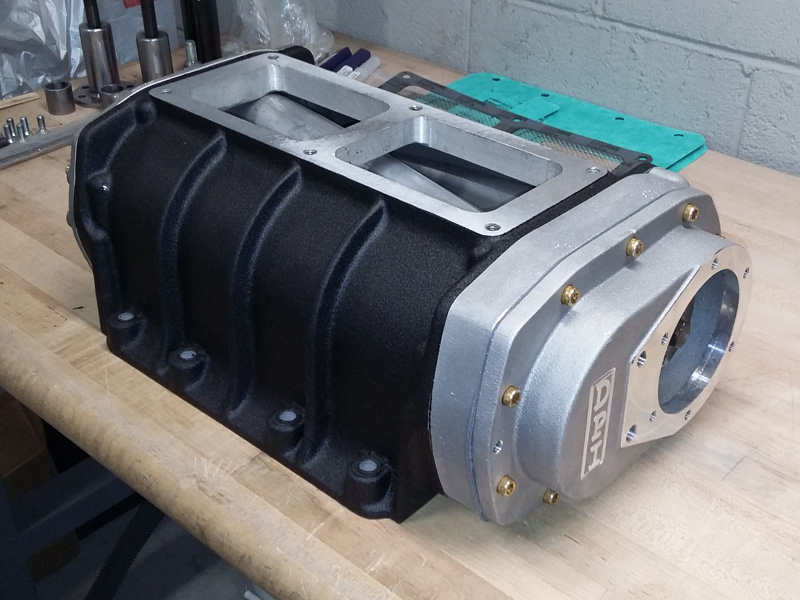

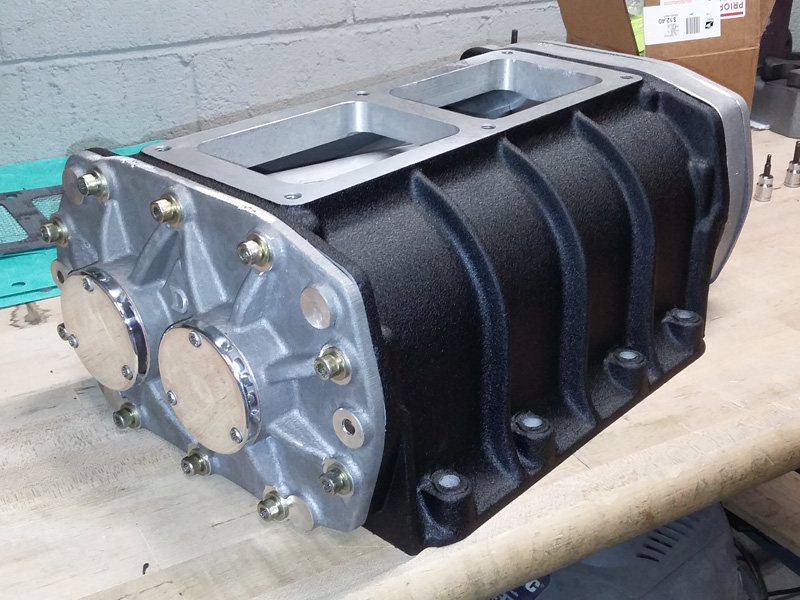

6-71 Blower built with DPI bearing plates, front cover. Case is powder coated in black wrinkle finish

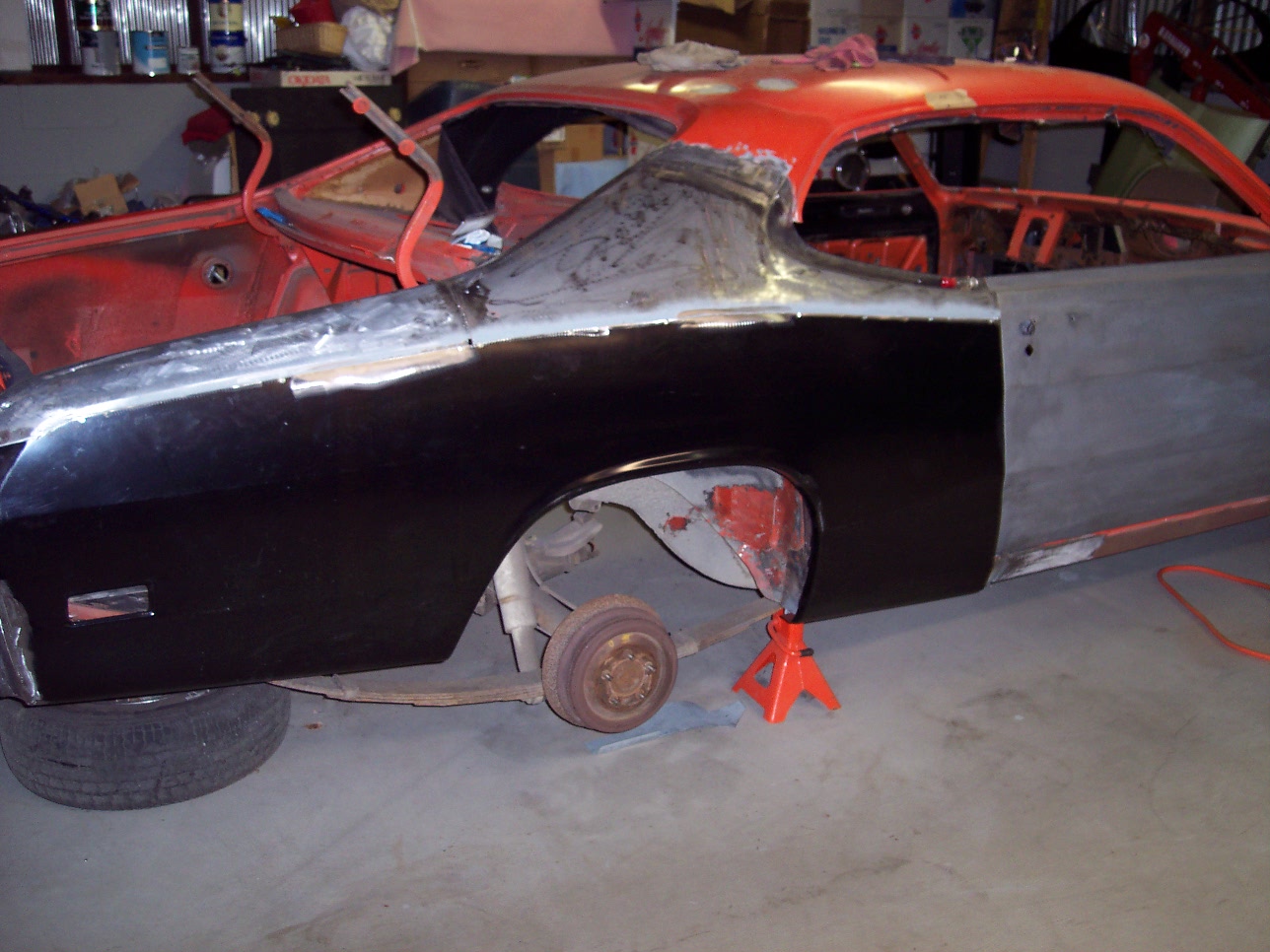

Quarter panel skin install

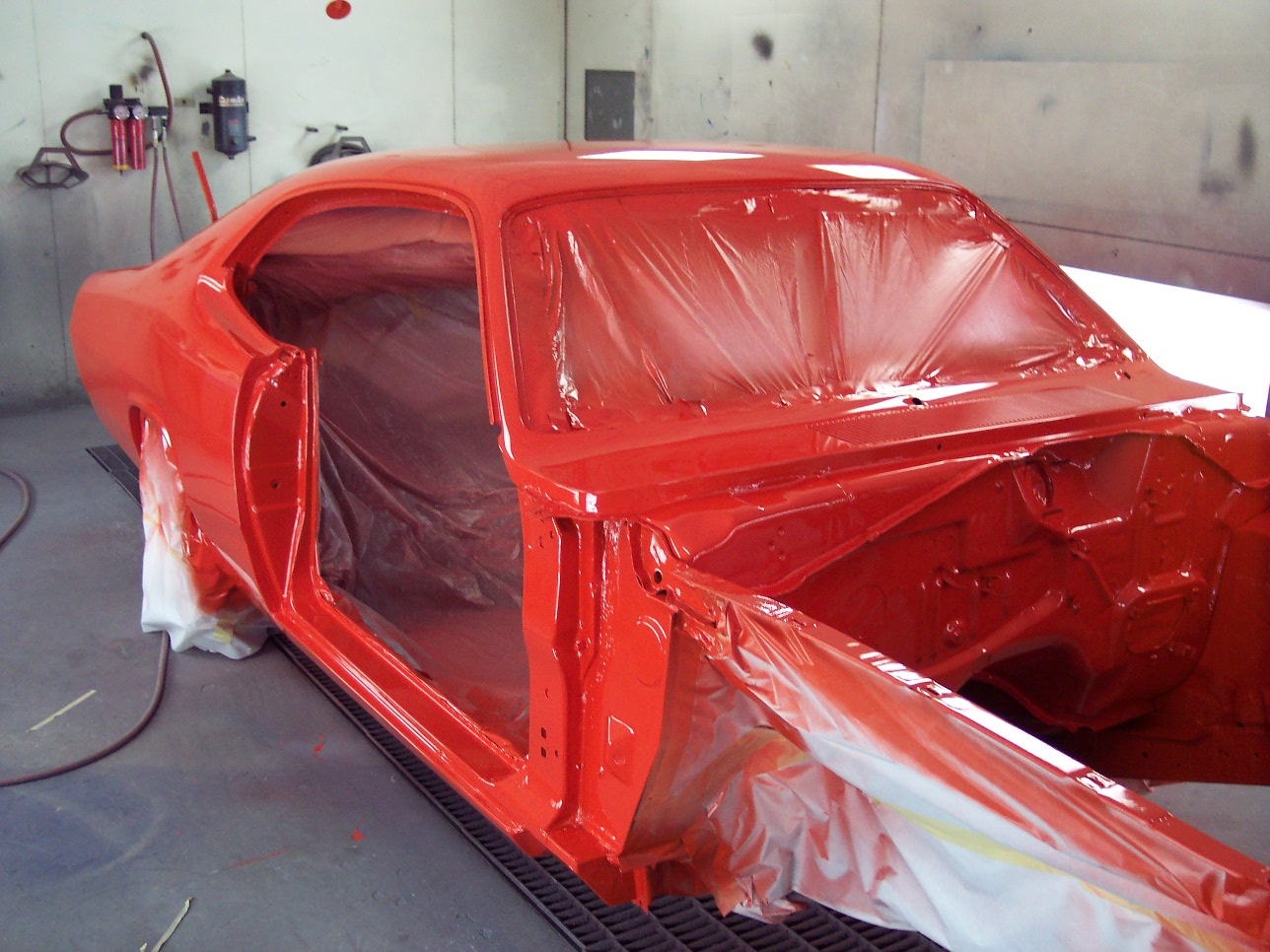

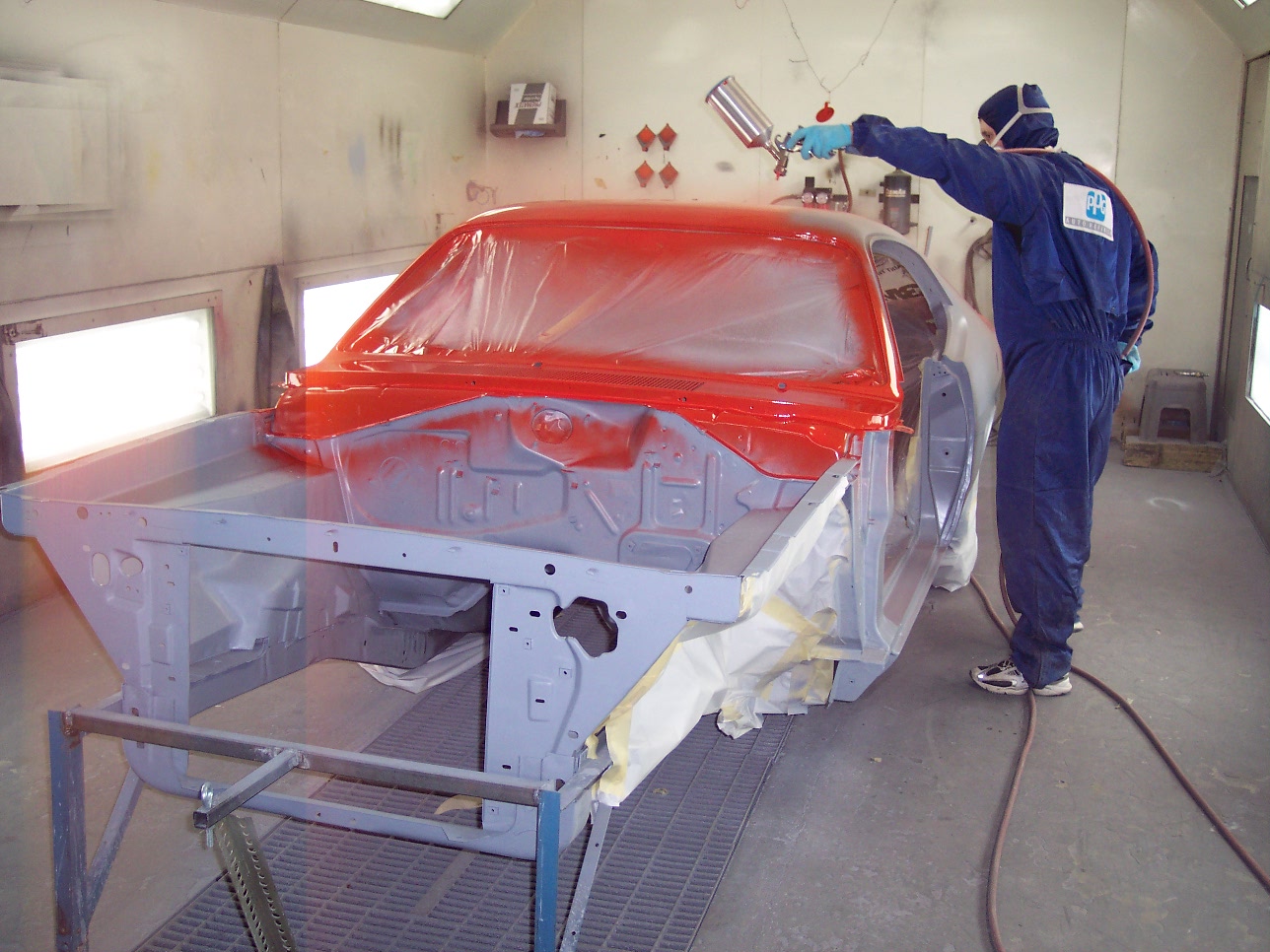

Duster being painted
Fresh glove box liner in custom dash
Duster wheel wells cut out accommodate wider tires
Wheel wells located inboard with gap to be filled
325 tire and small backspace wheels are mocked into wider tub to determine axle width

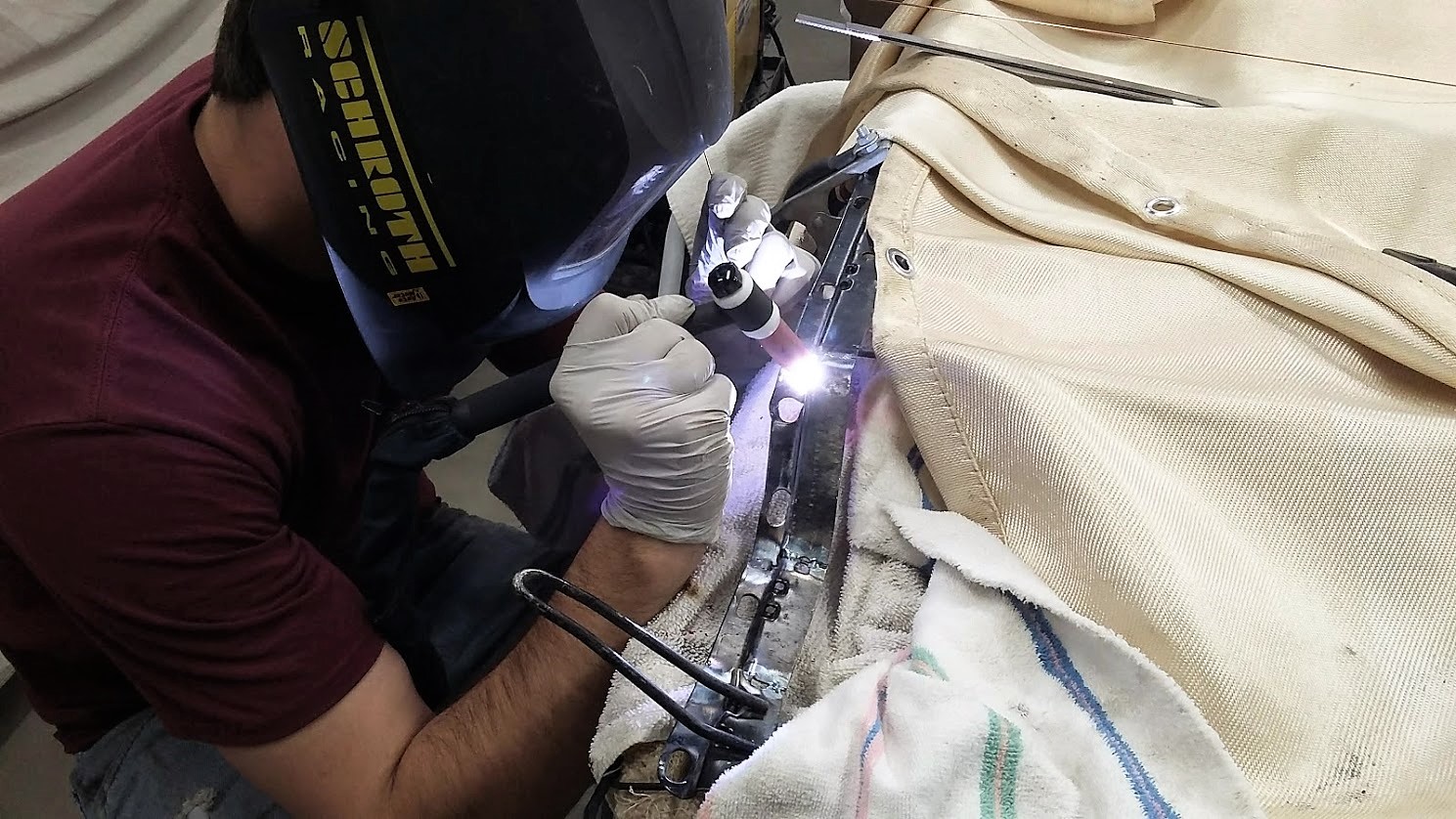

Austin TIG welds modified rear seat back frame to provide needed room for wheel tubs
6-71 Blower built with DPI bearing plates, front cover. Case is powder coated in black wrinkle finish
Blown
1975 Big Block Dodge D100 Truck - Pro Street

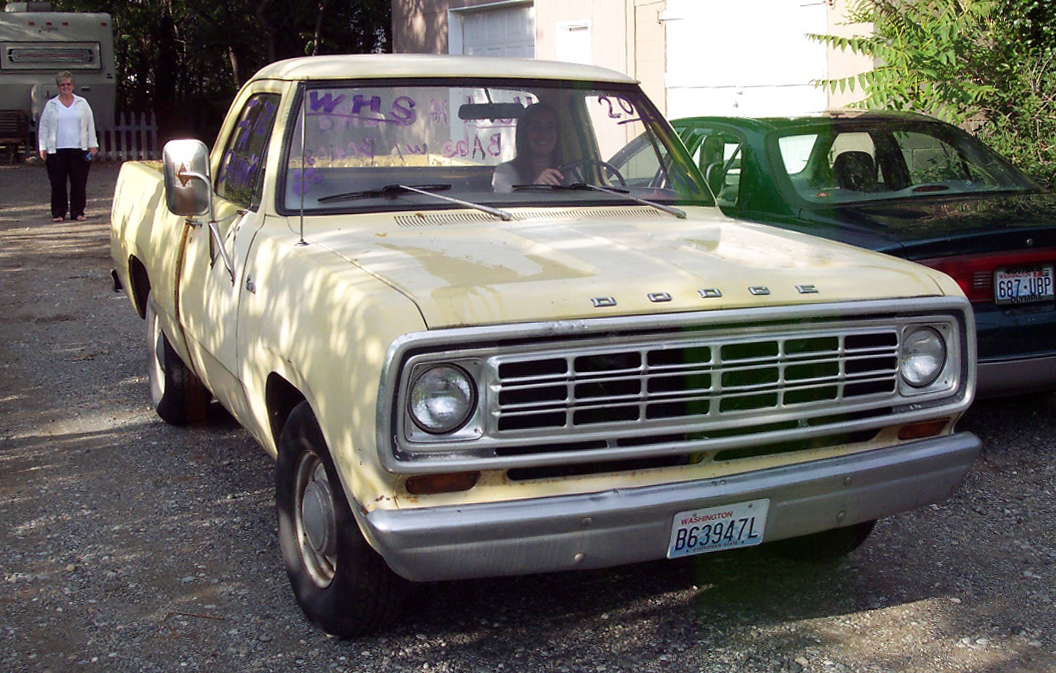

Junk yard dog started life with a utility company
440 engine during final assembly

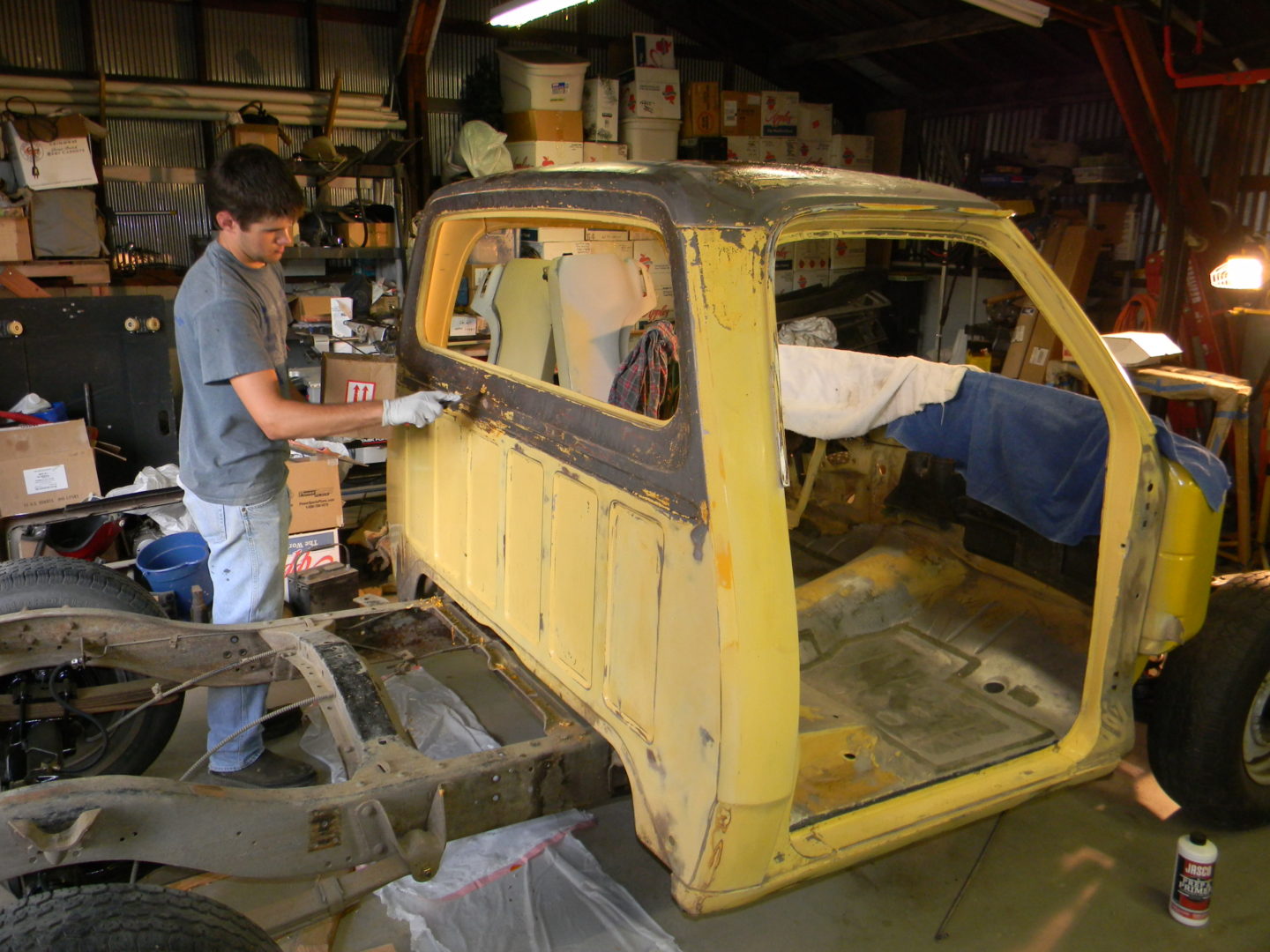

Stripping multiple layers of paint from the cab

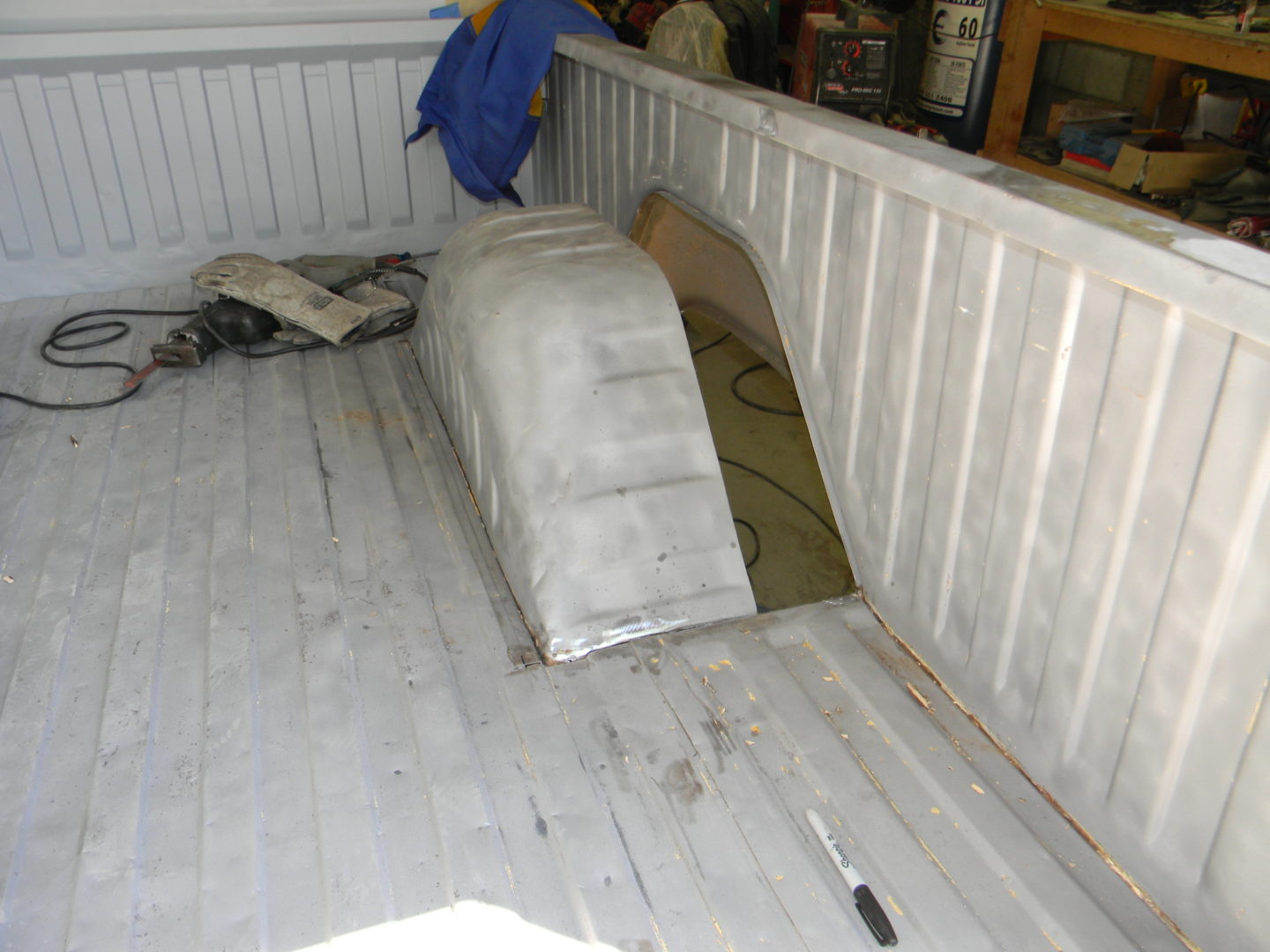

Wheel tub moved over and just a matter of filling the gap with a strip of metal

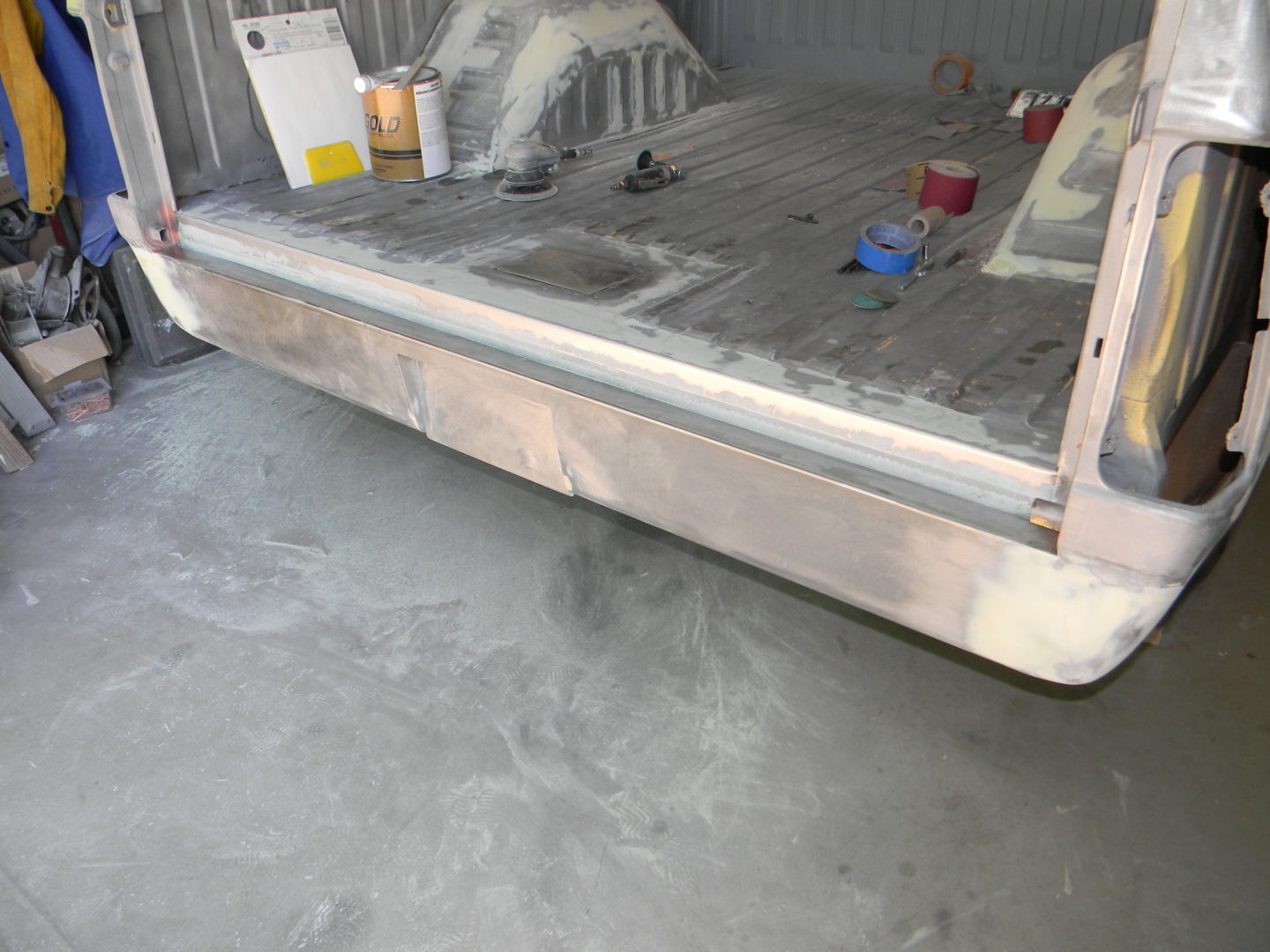

Bumper is shaved in favor of a roll pan

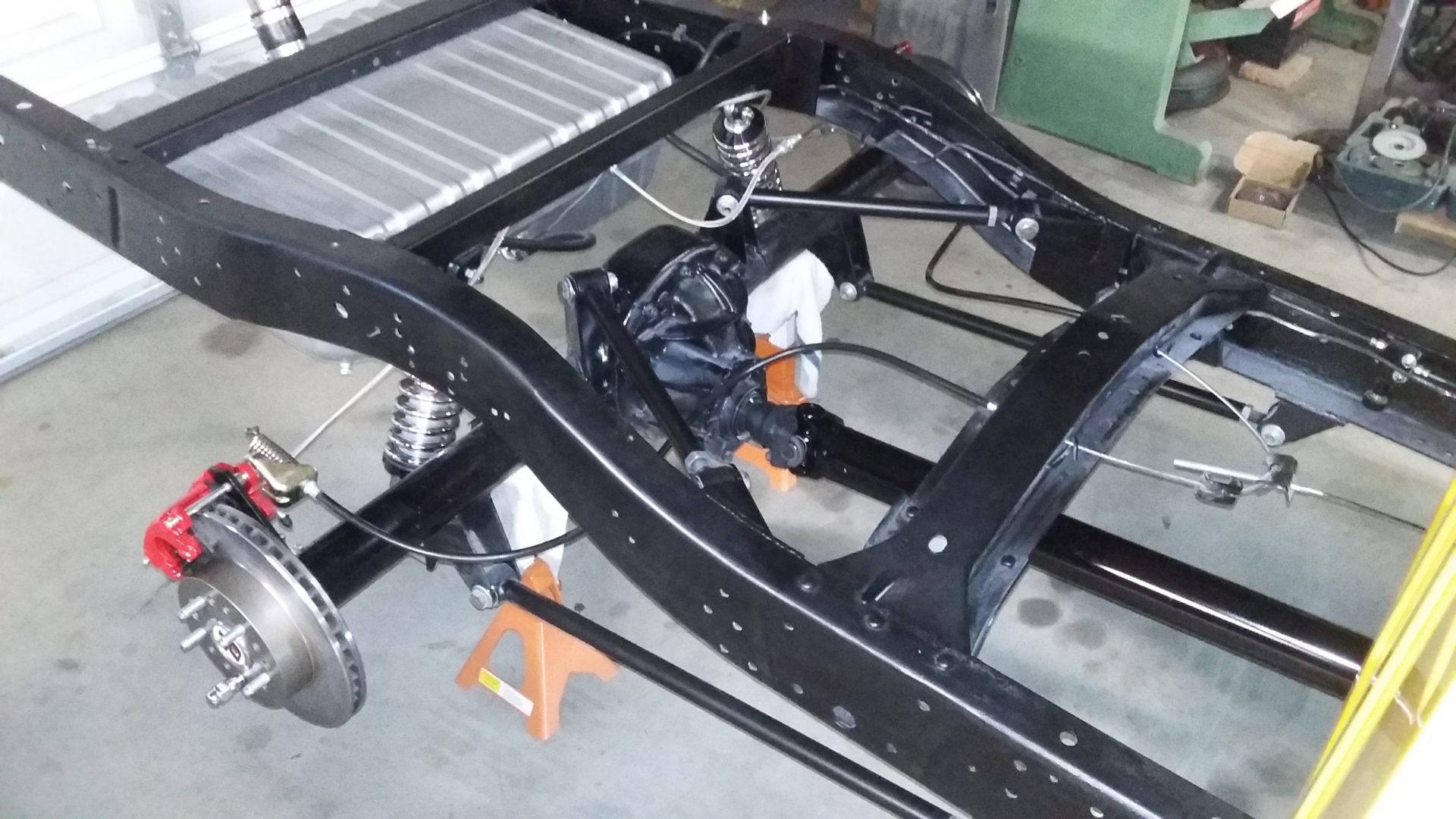

Original axle and suspension ditched for Ford 9", 4-link, and disc brakes

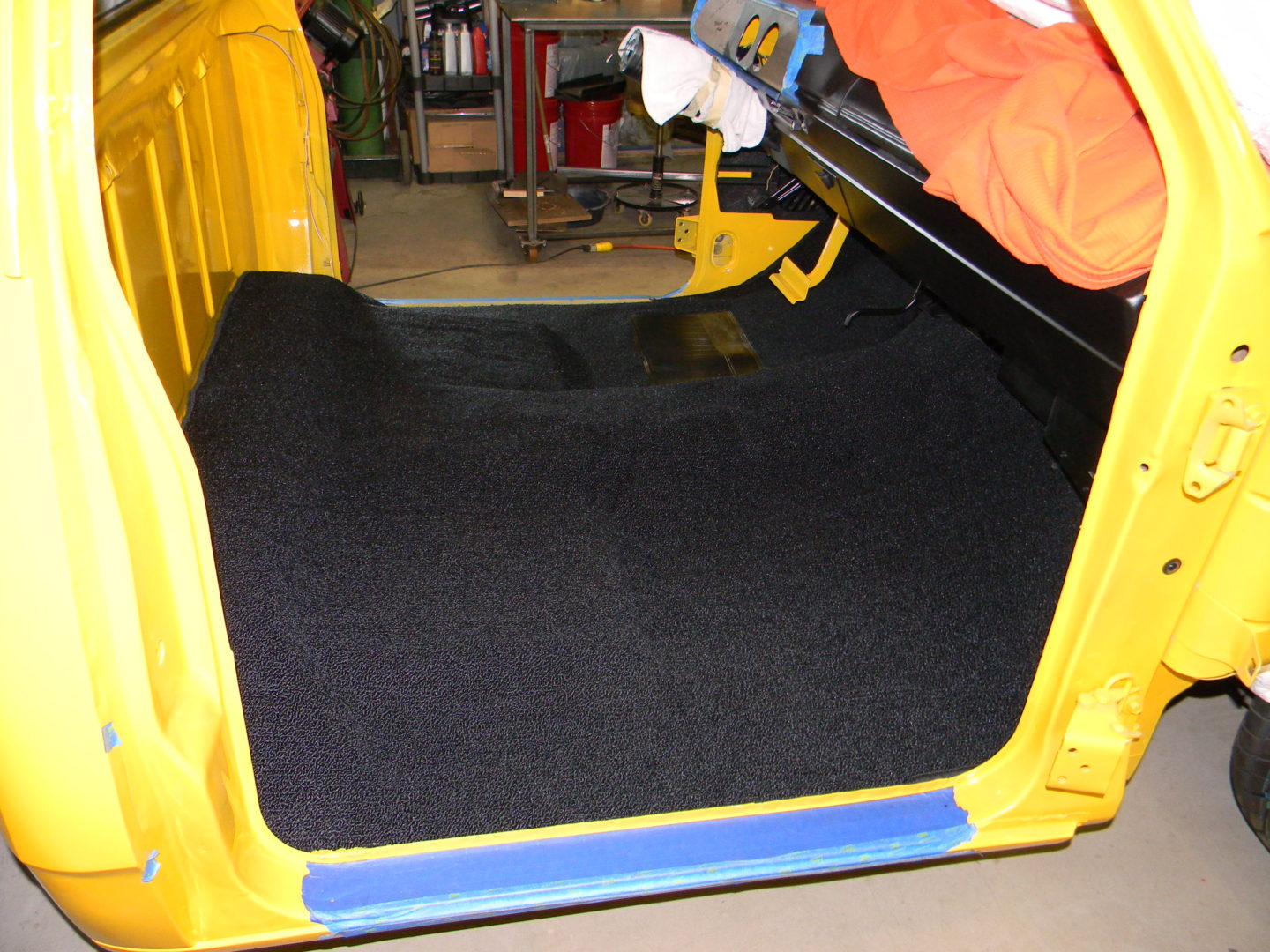

Cab reassembly started with some fresh carpet

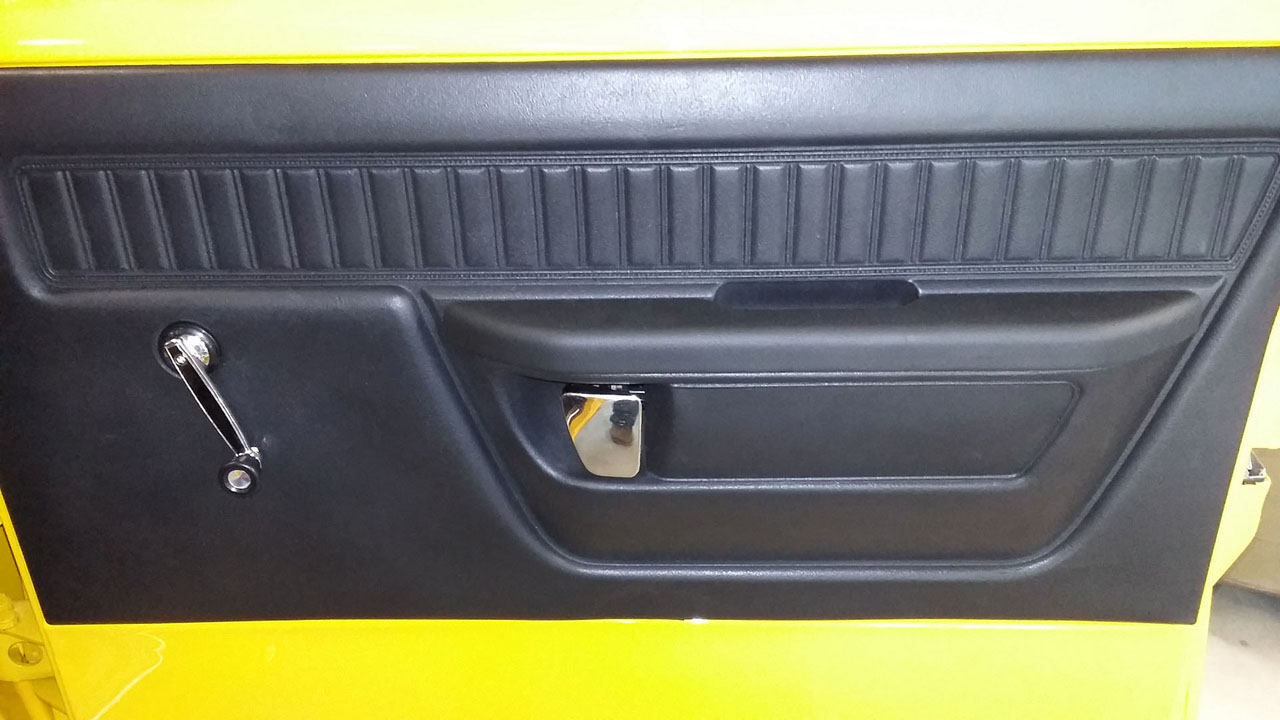

Restored and installed original plastic door panels

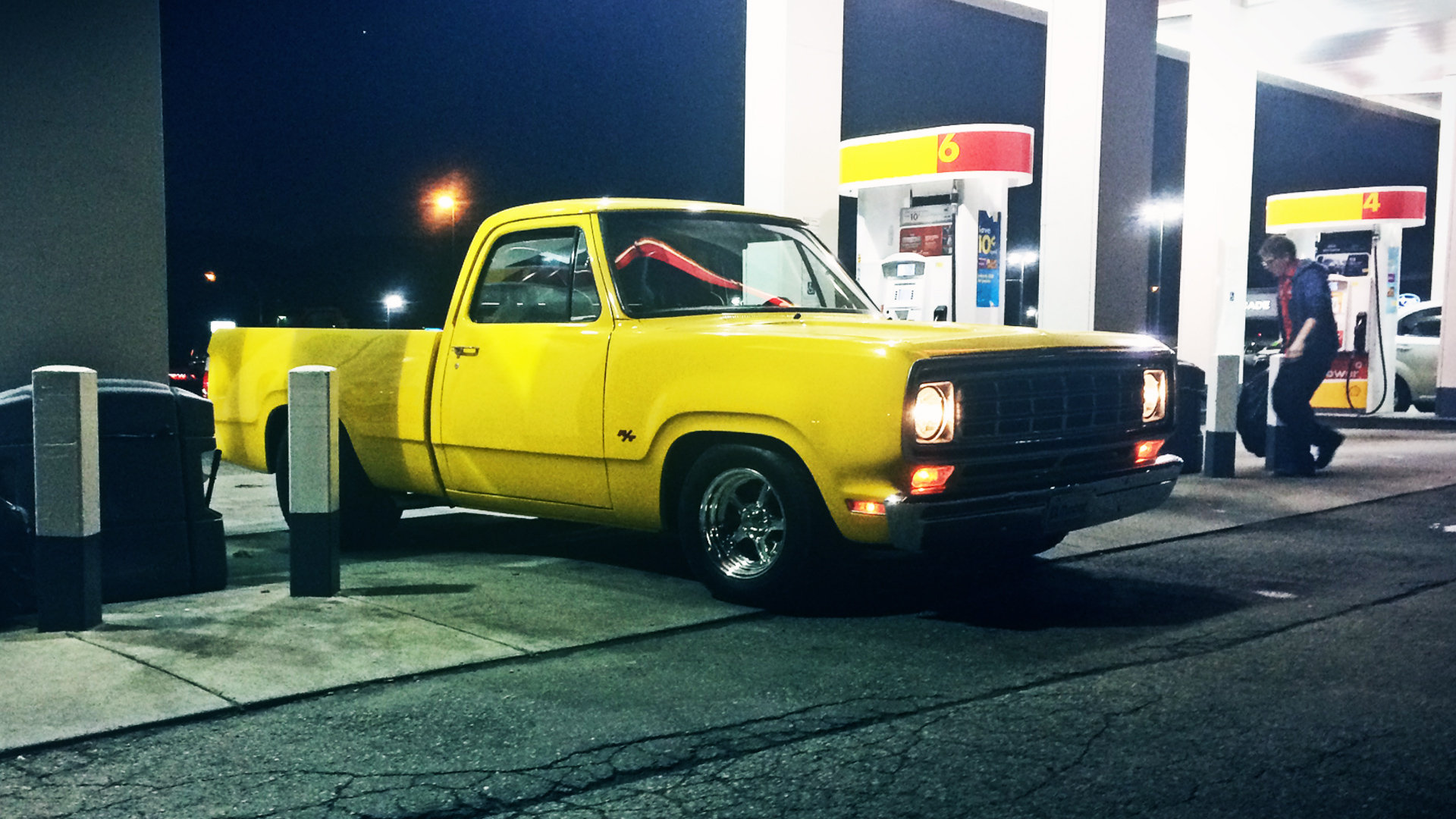

Big Block Dodge D100 - Pro Street

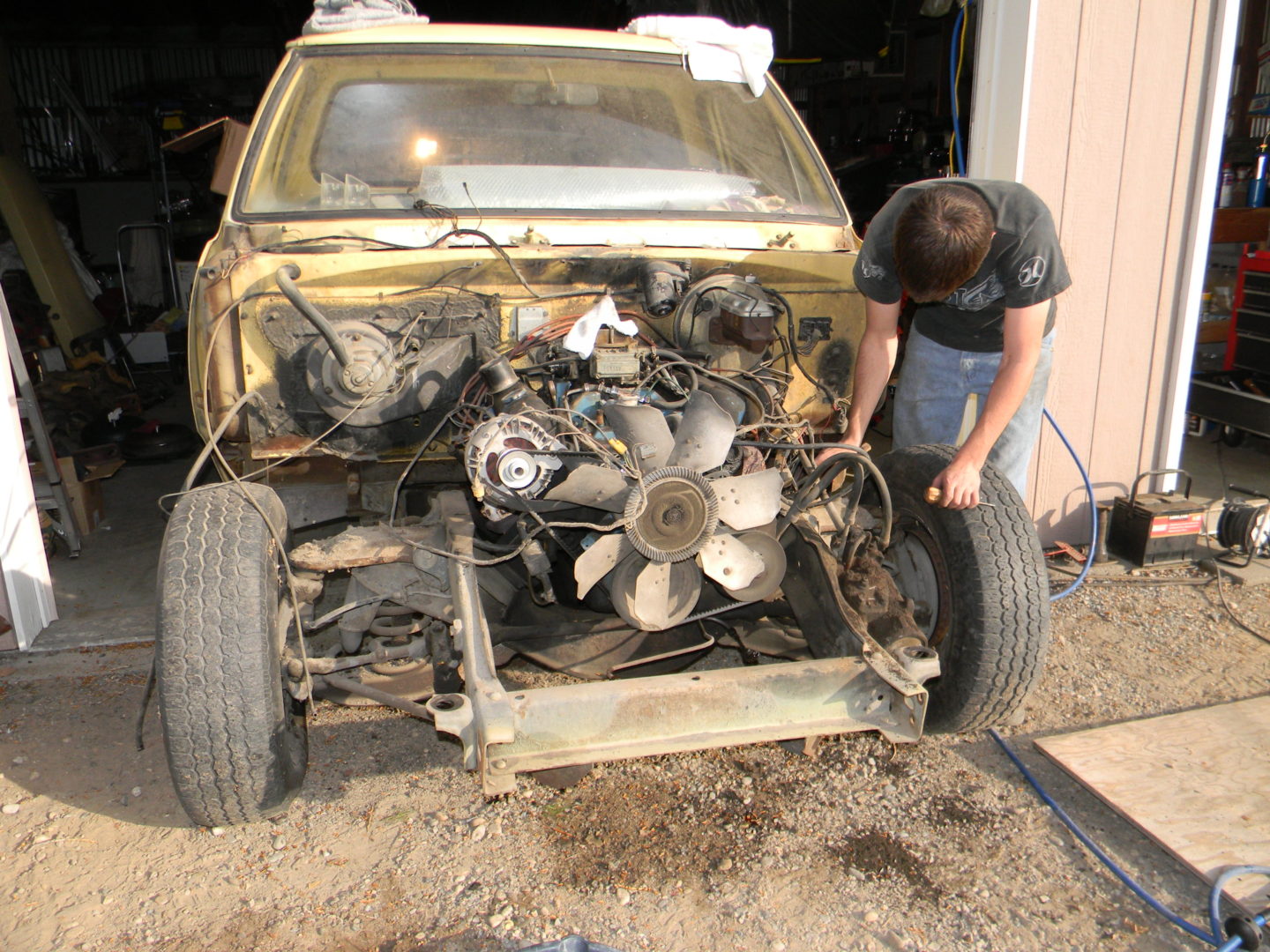

Tearing it down and pulling the old engine and trans

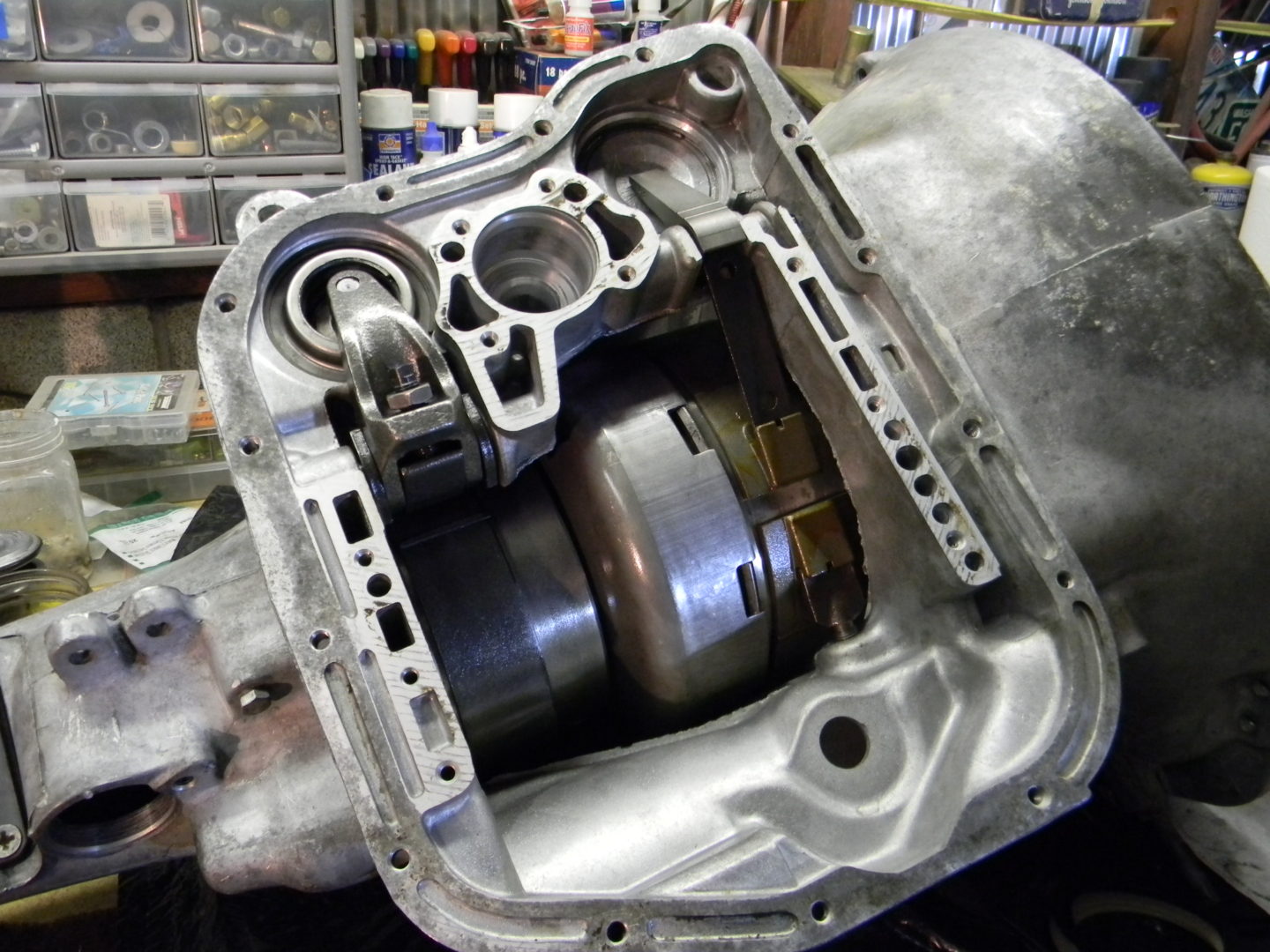

727 automatic transmission is fully rebuilt with TF-2 shift kit

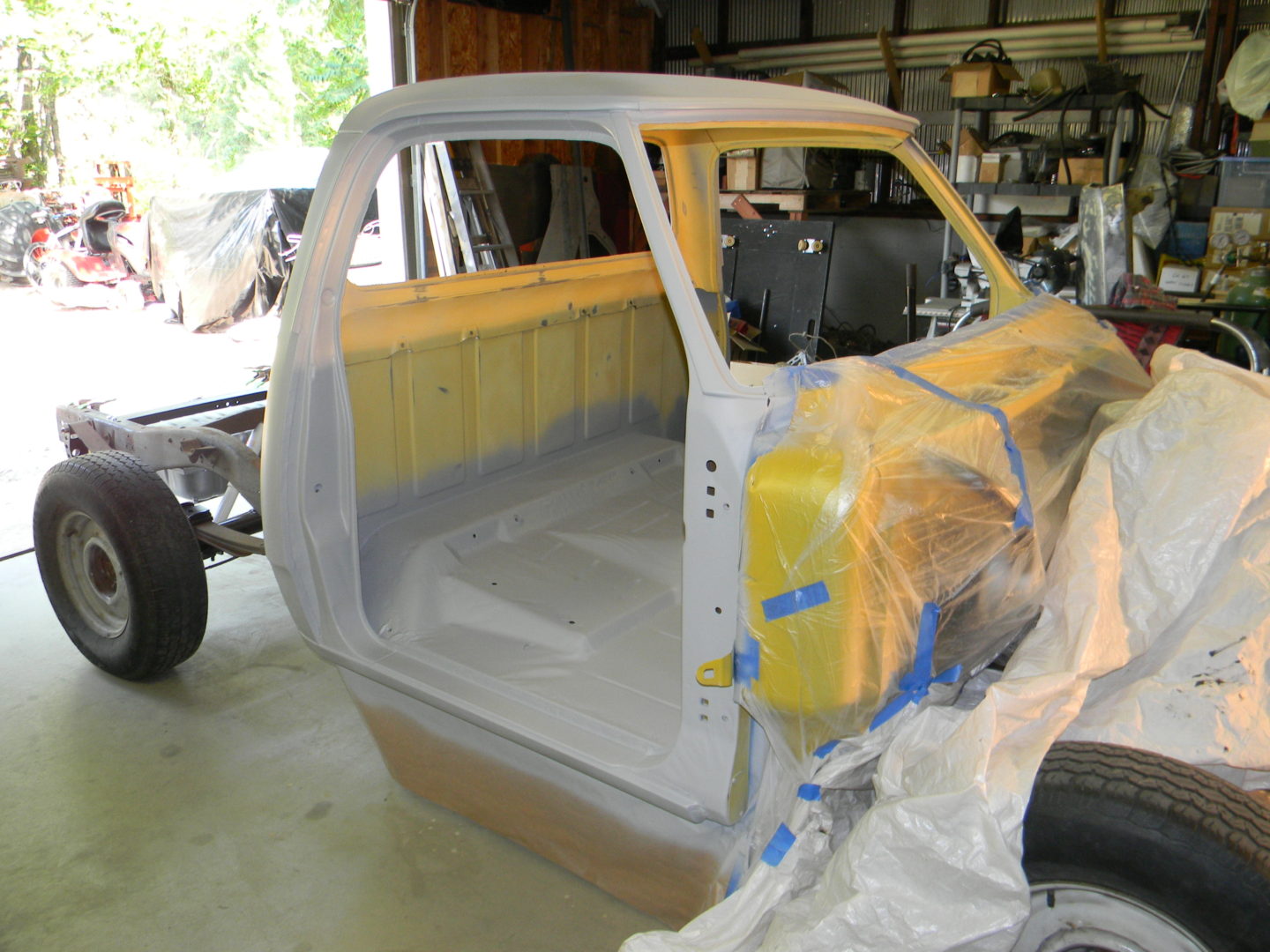

Floors repaired, cab stripped, body worked, and primed
Lots of pieces get some color

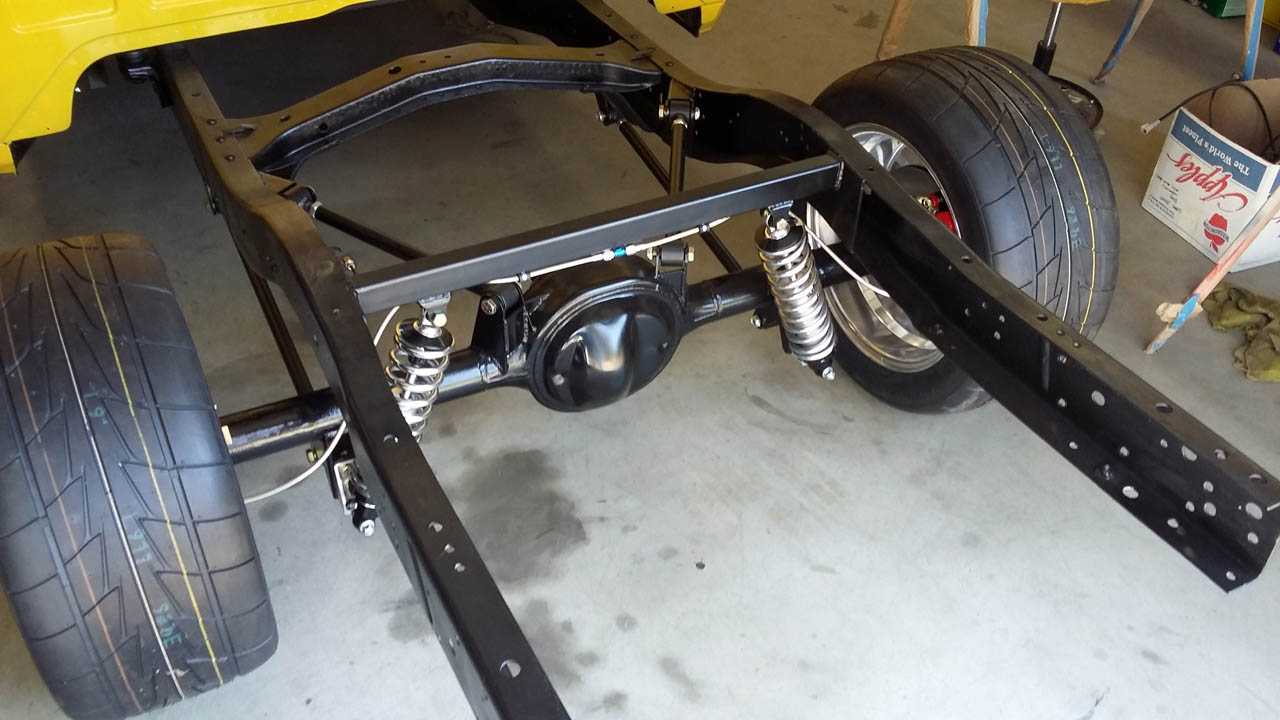

Ford 9", 4-link, and disc brakes and meaty tires

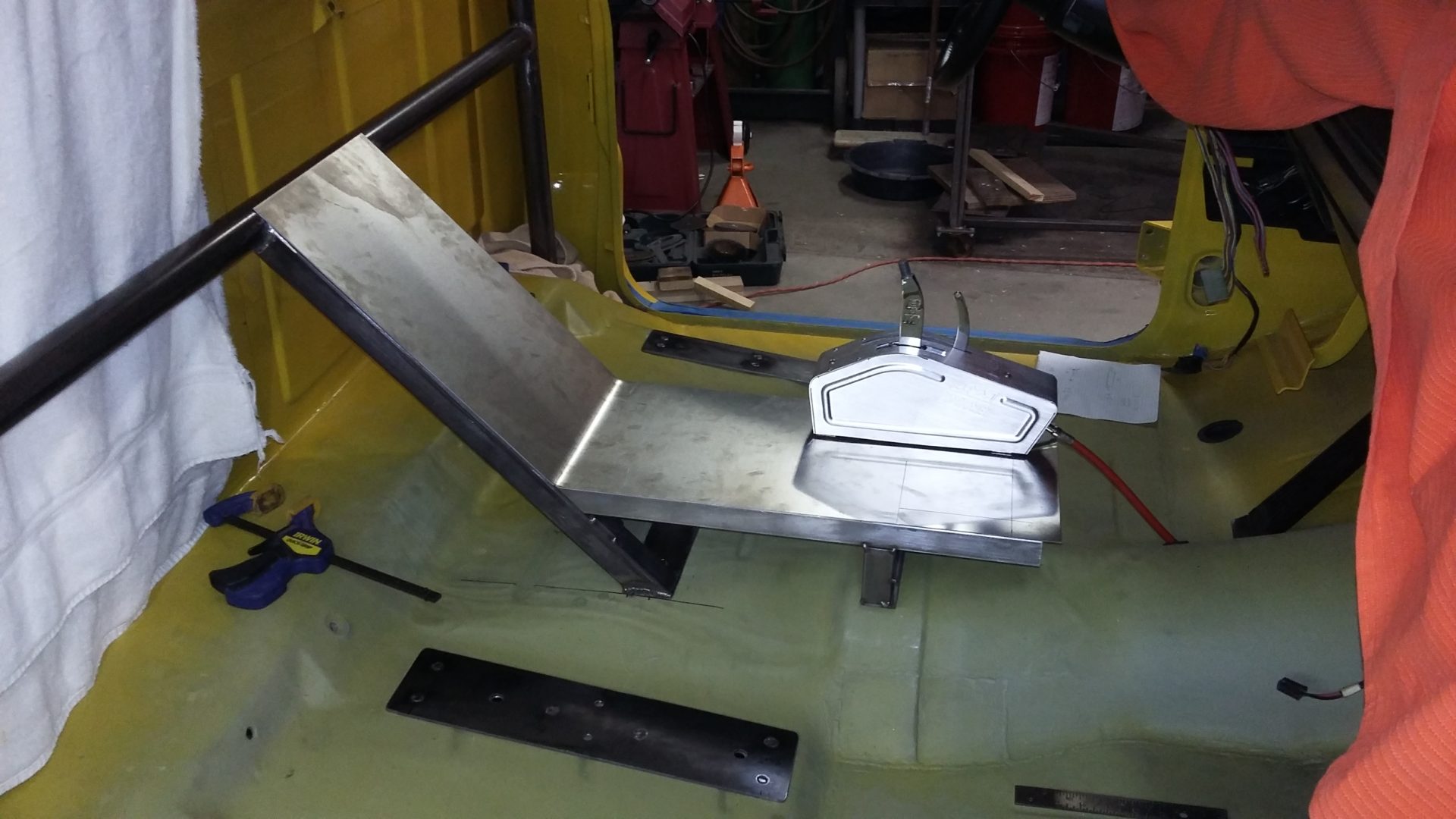

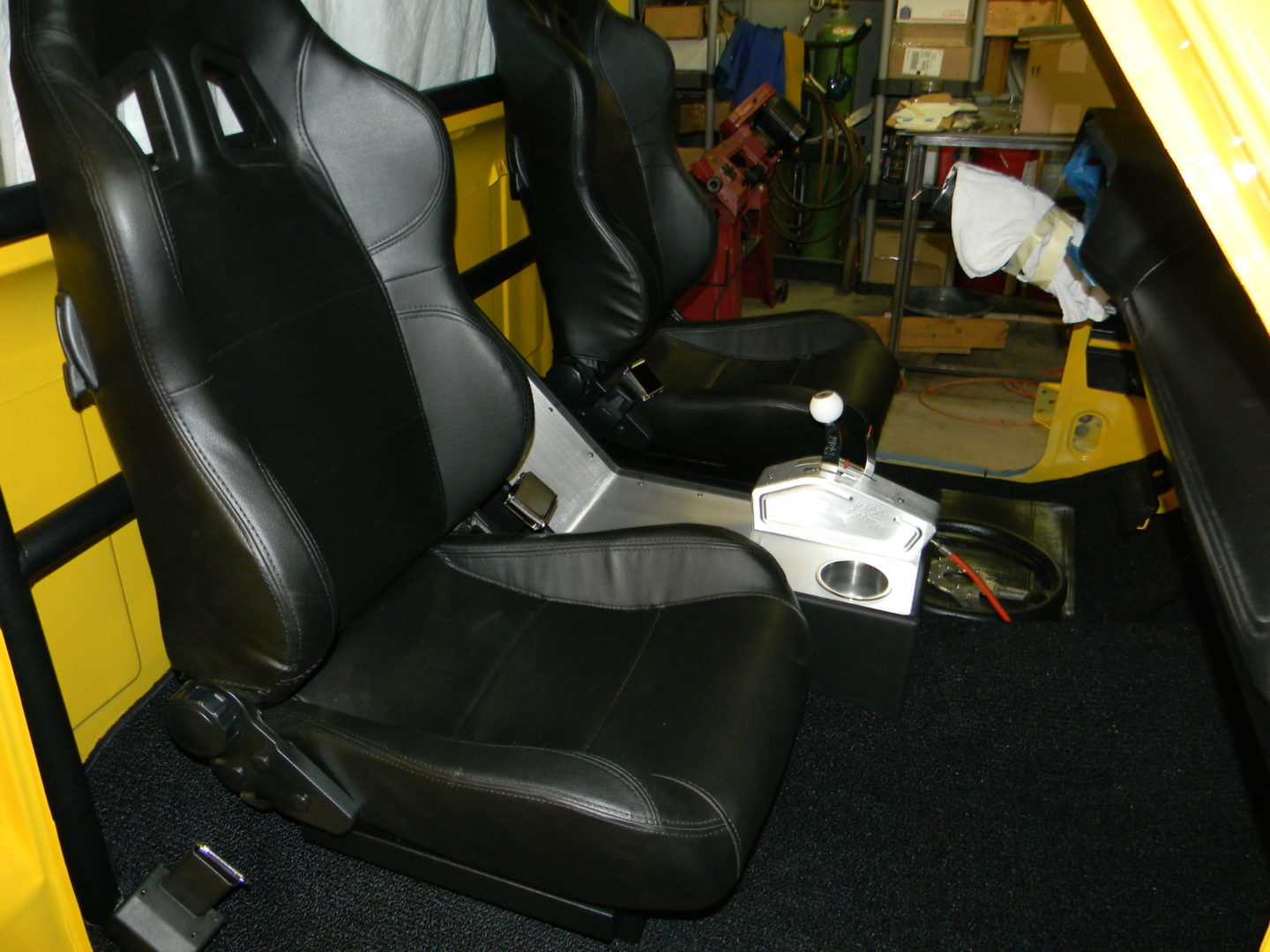

Custom console with shifter and race style seats

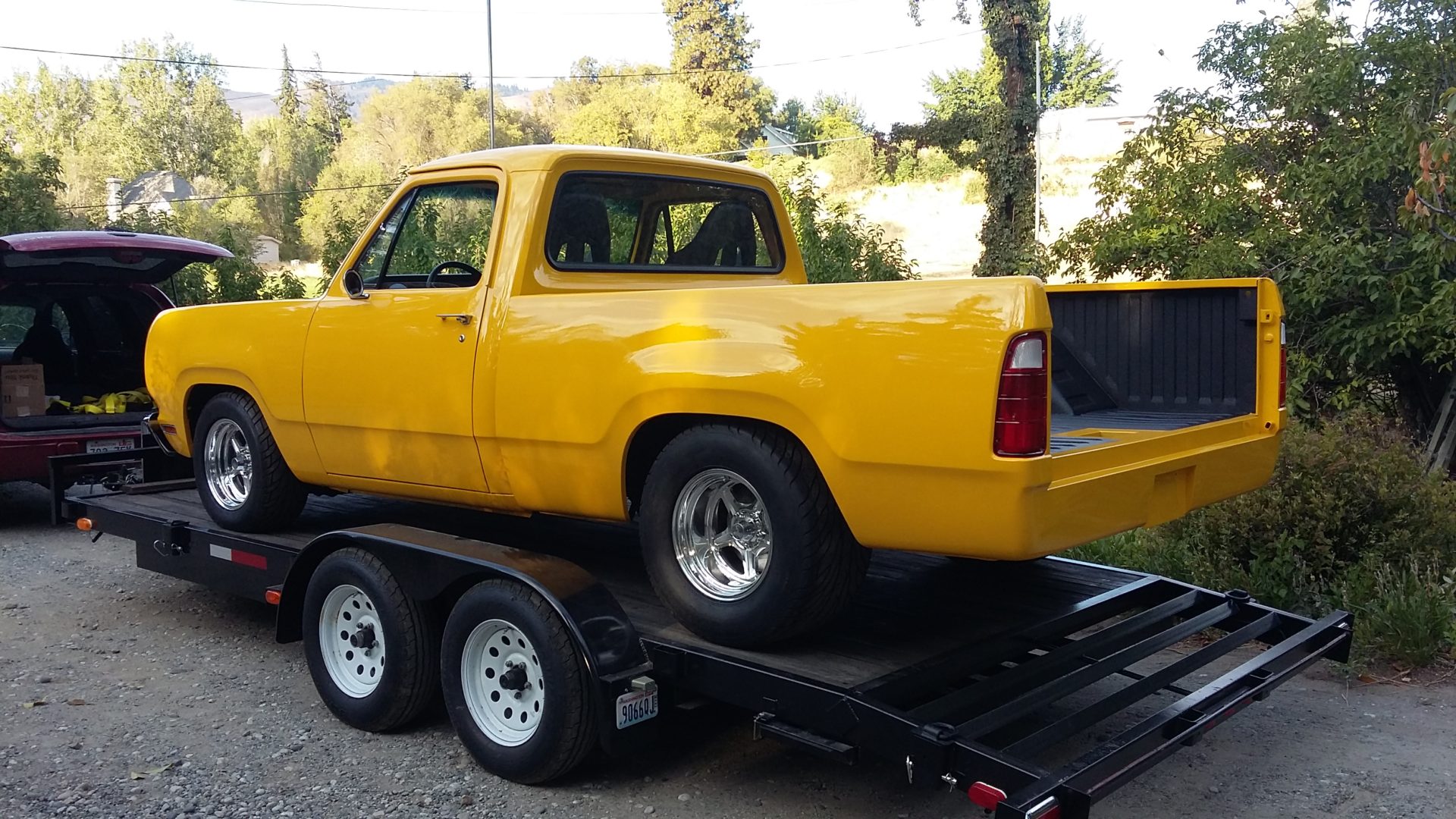

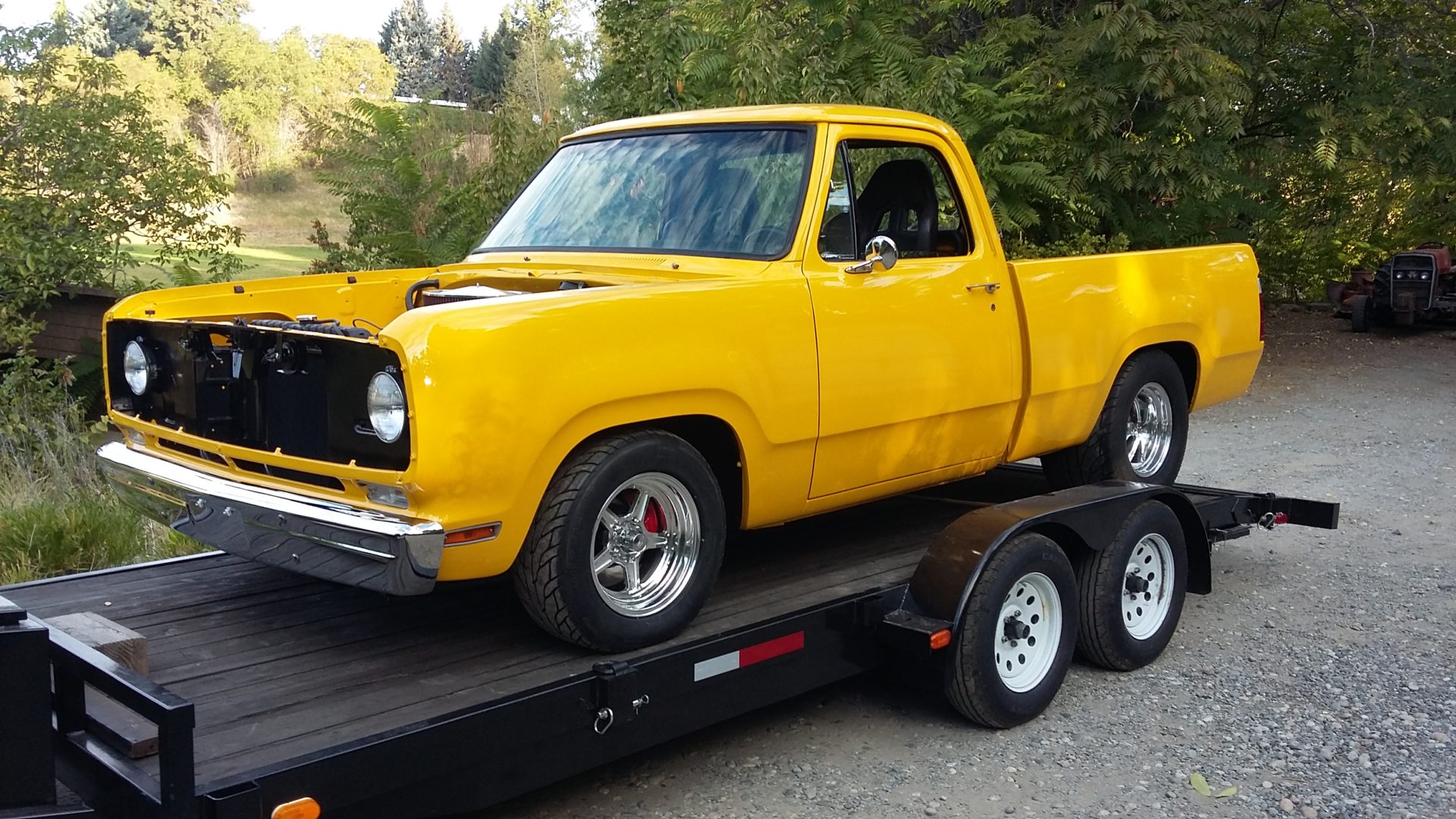

Truck staged for first Classy Chassis Parade event

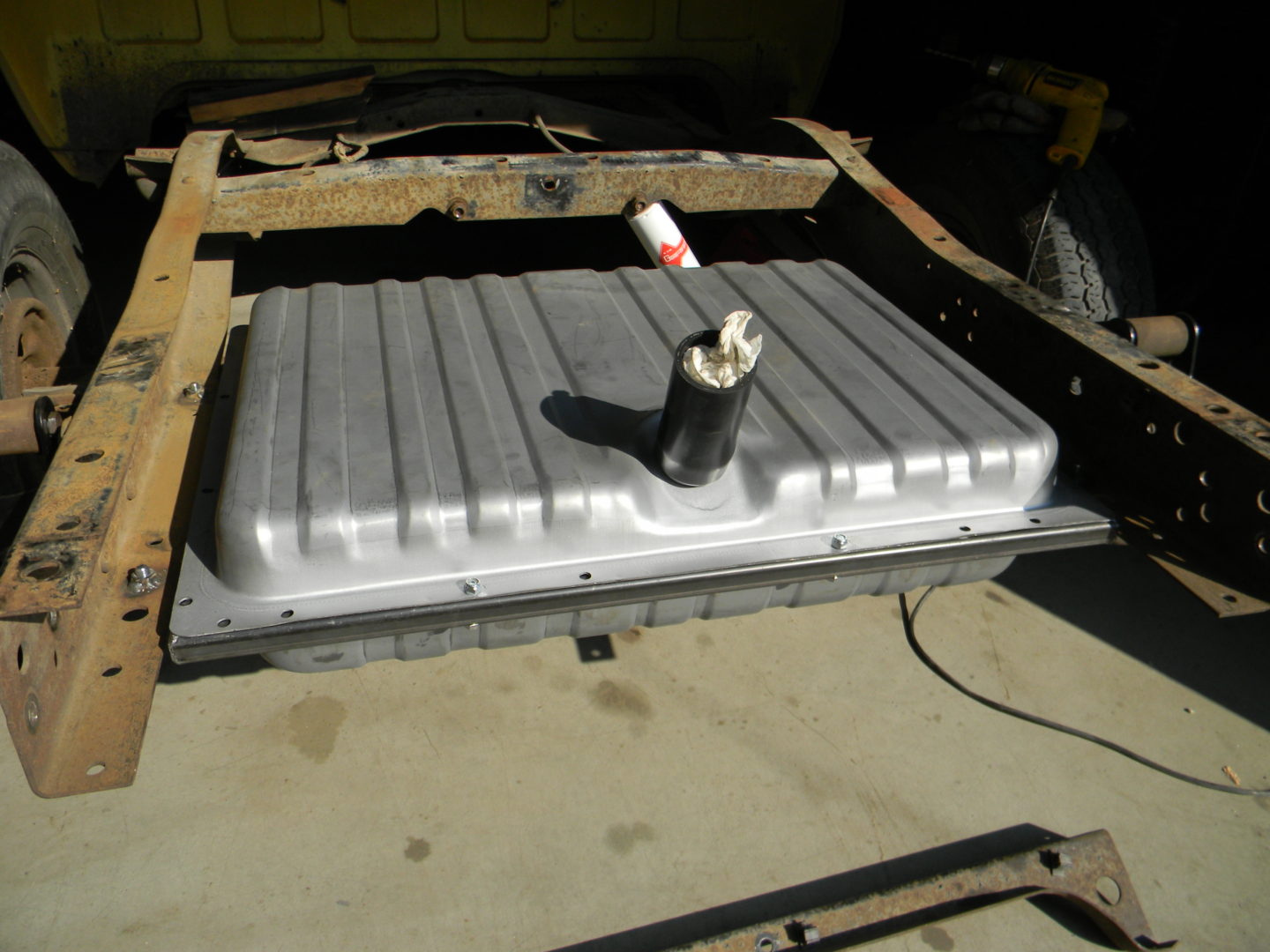

A Mustang tank is located between the frame rails at the rear

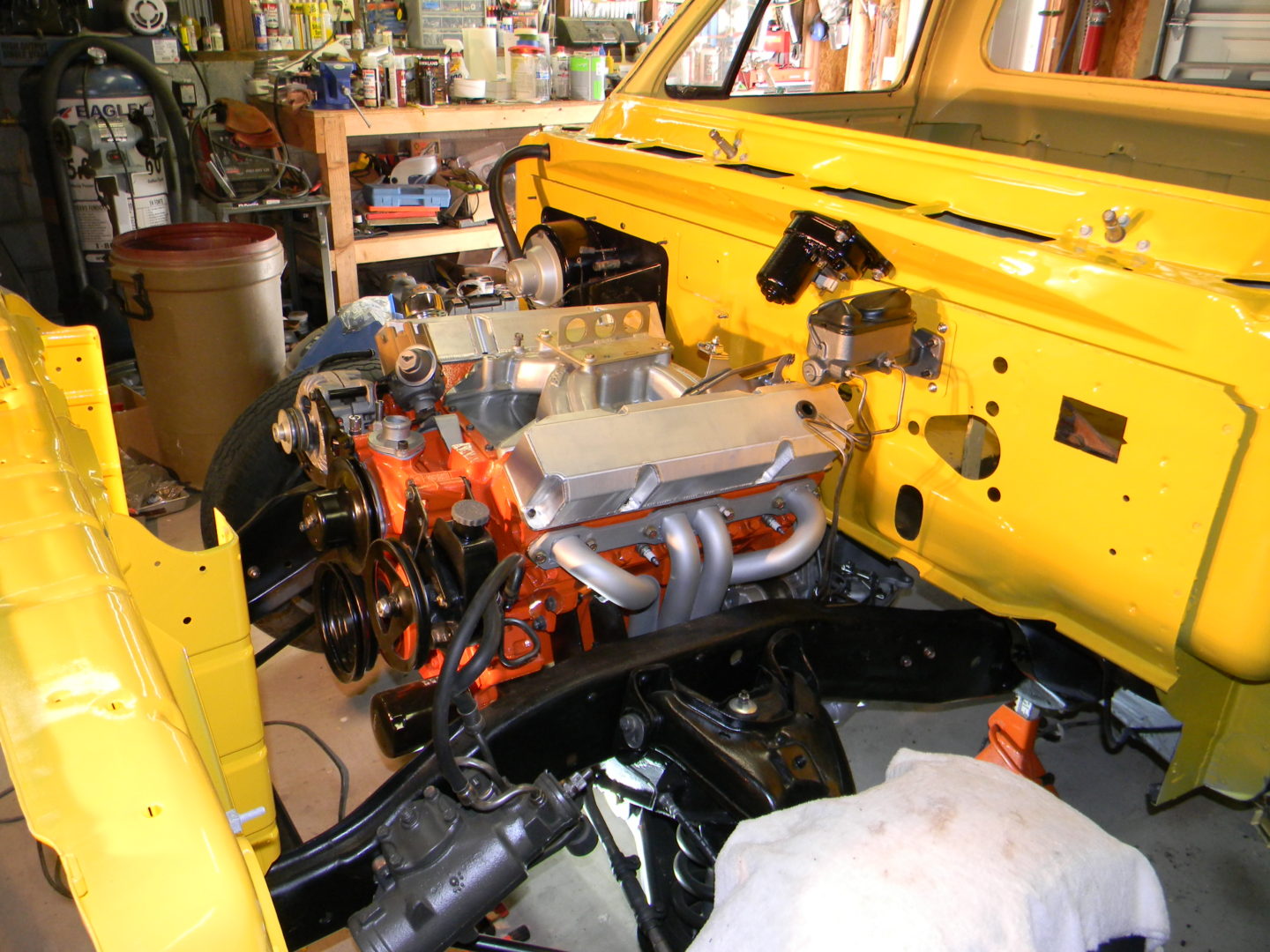

440 installed in its new home

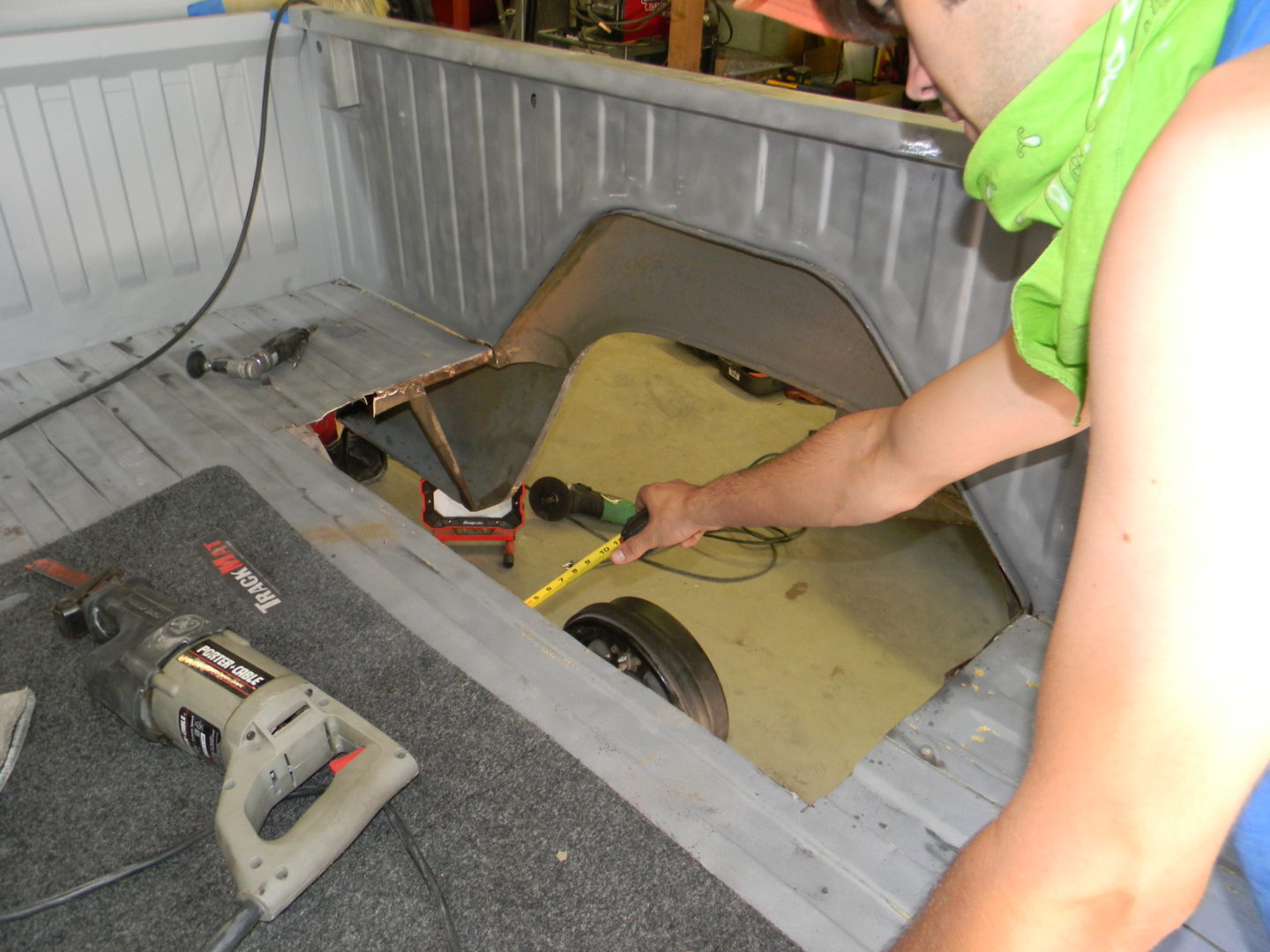

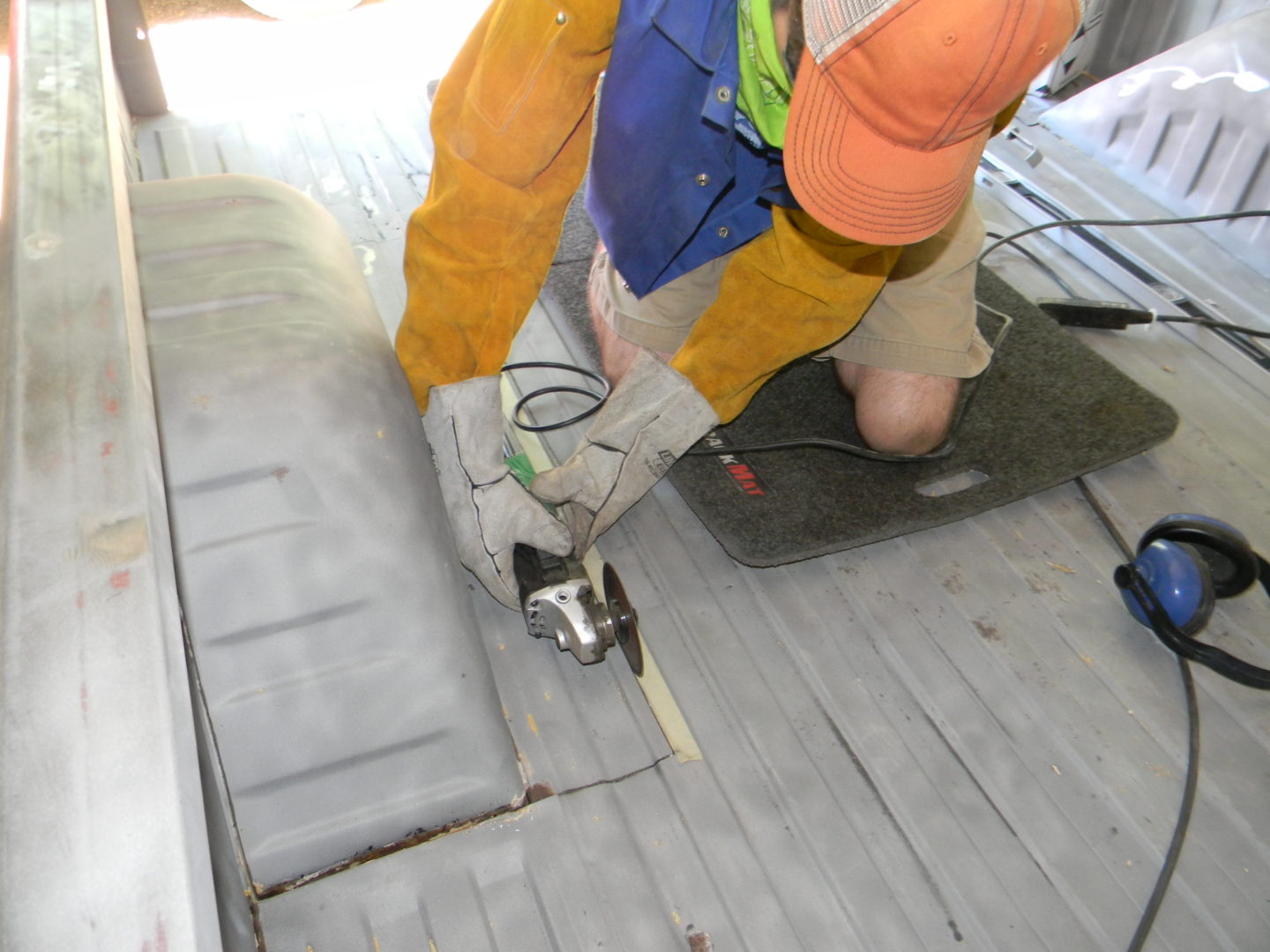

Cutting tub and floor to make room for wider tires

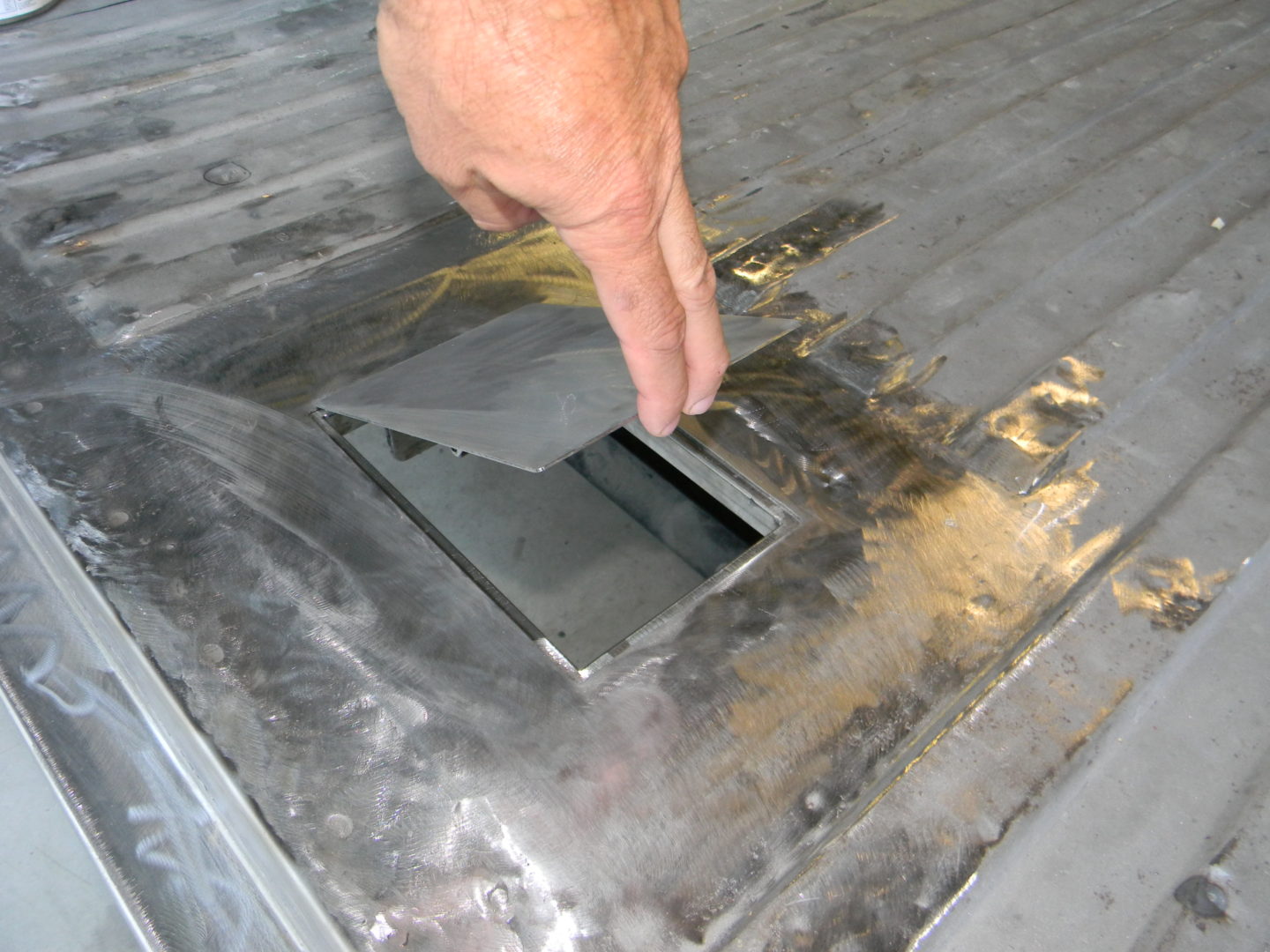

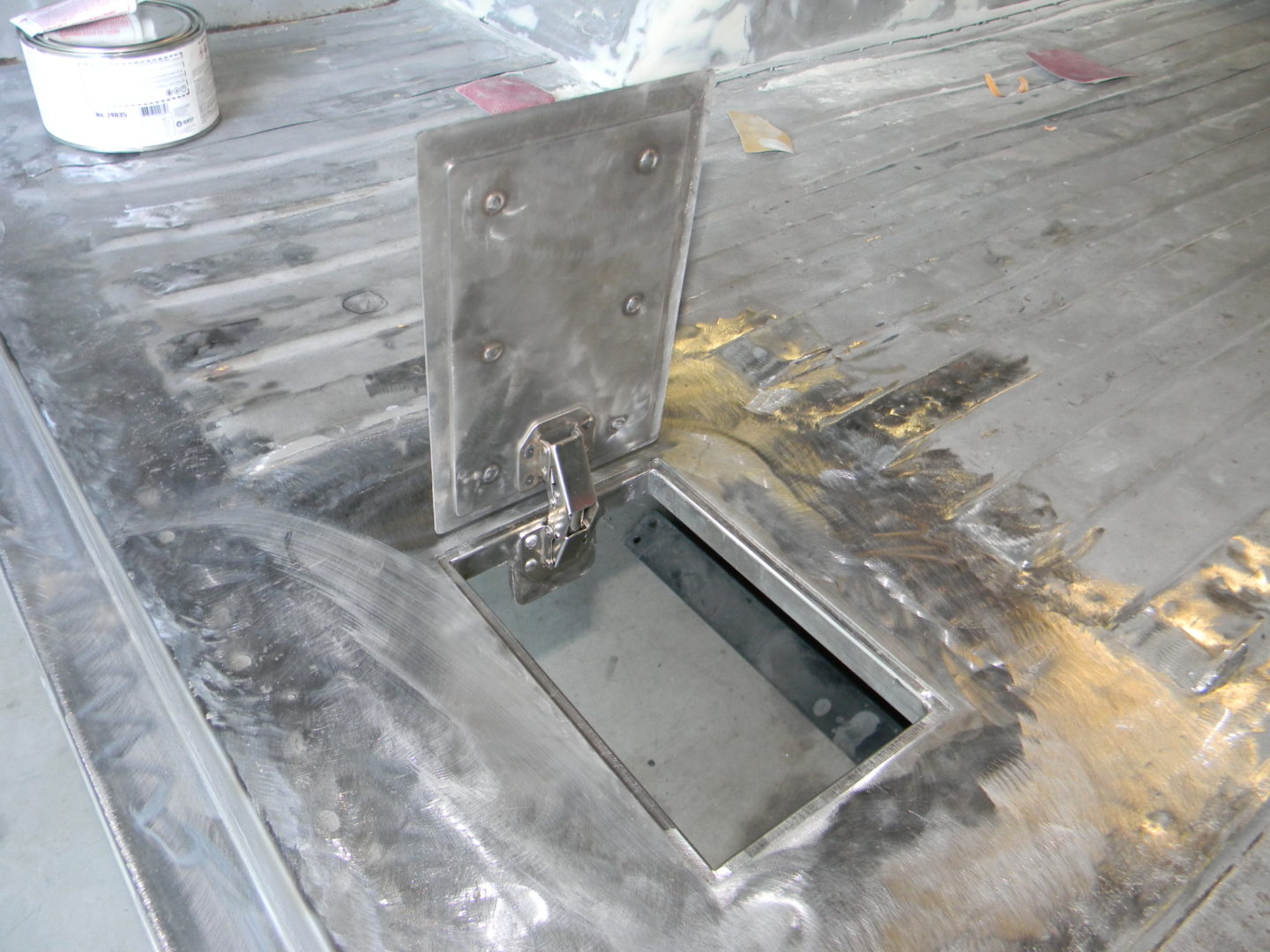

Door hinged for access to fuel filler

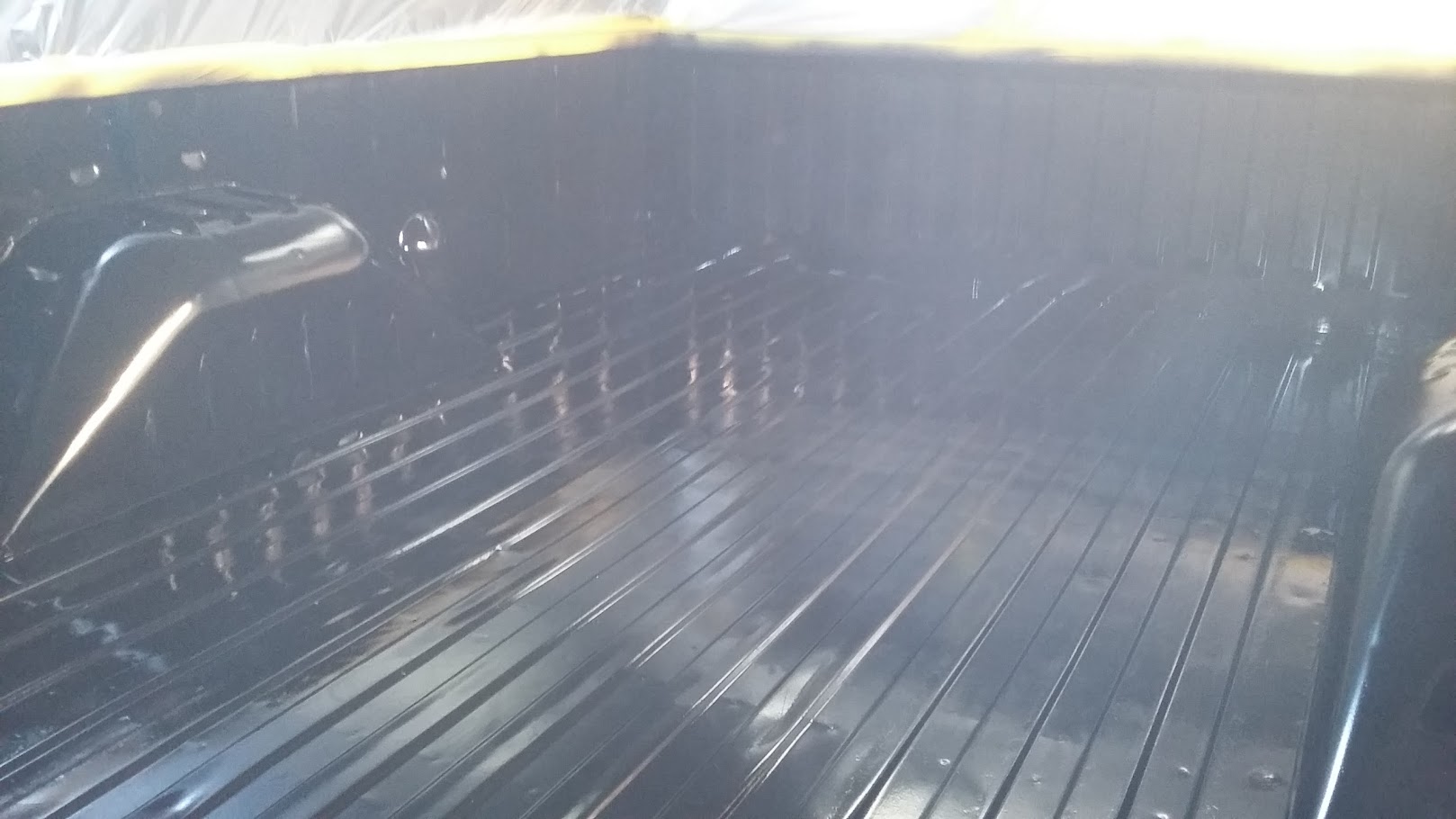

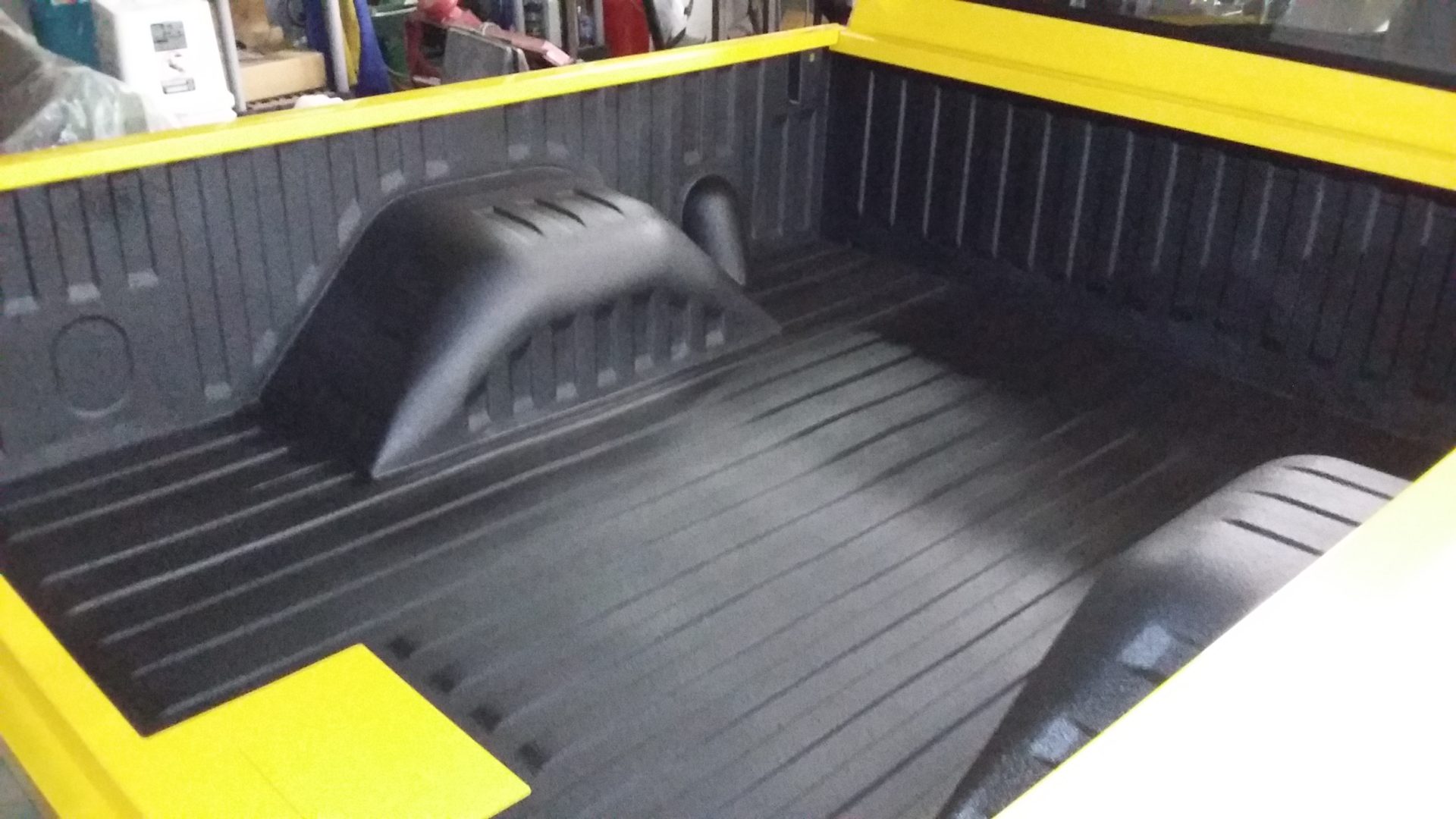

Truck bed is finished with spray in Raptor Liner

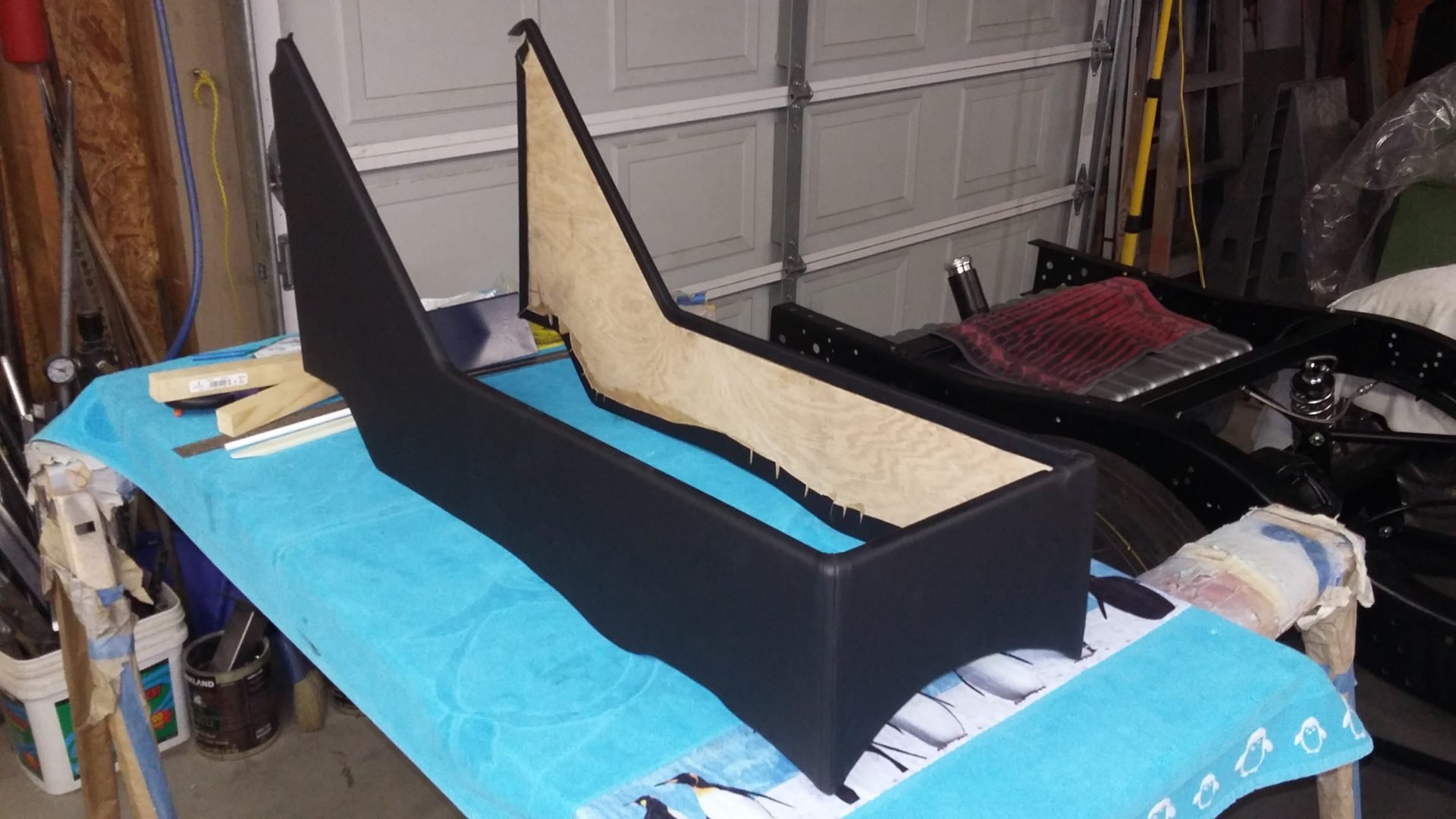

Custom console wrapped in faux leather

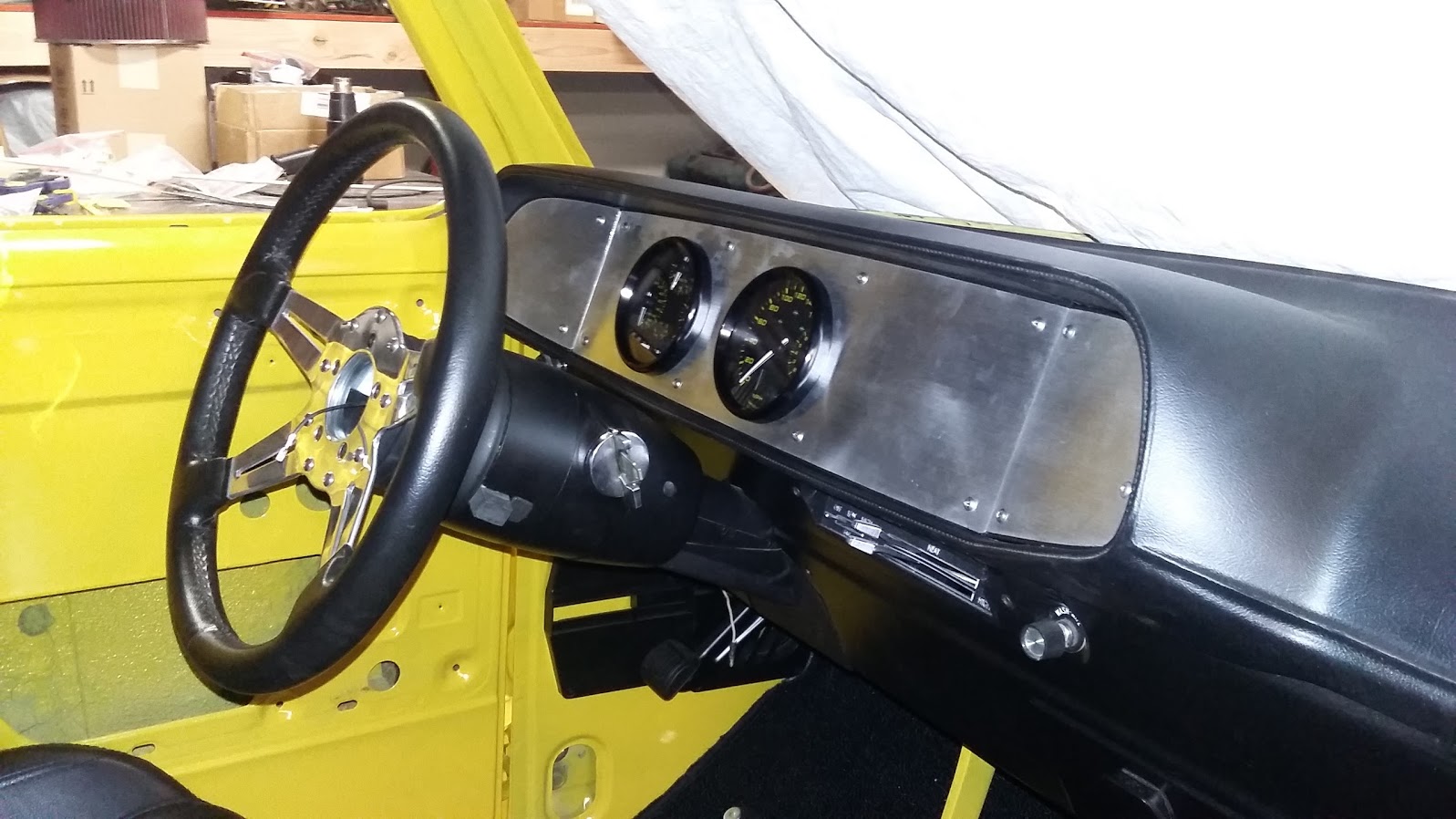

Custom Speedhut gauges installed for a condensed layout of all the vitals

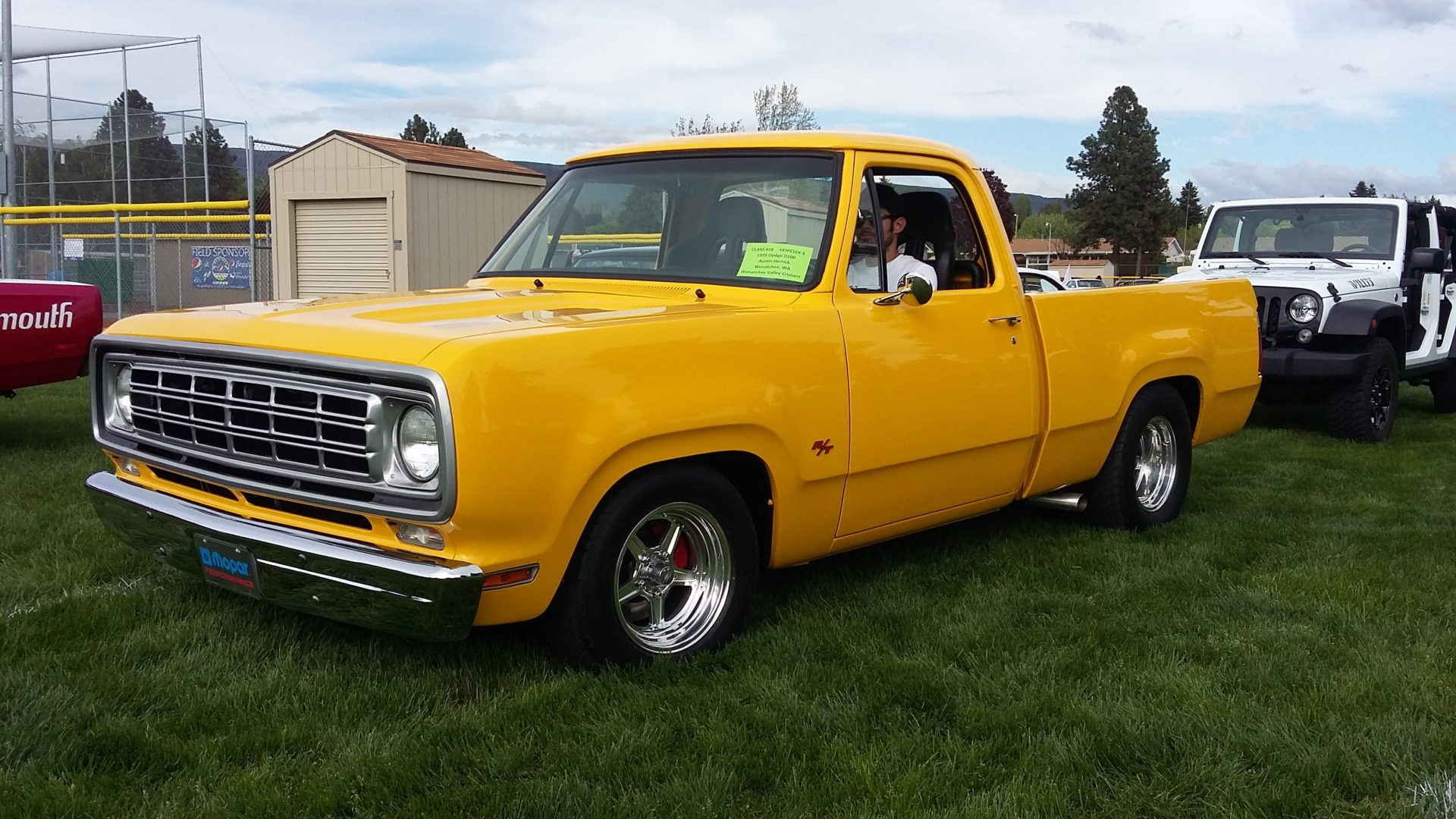

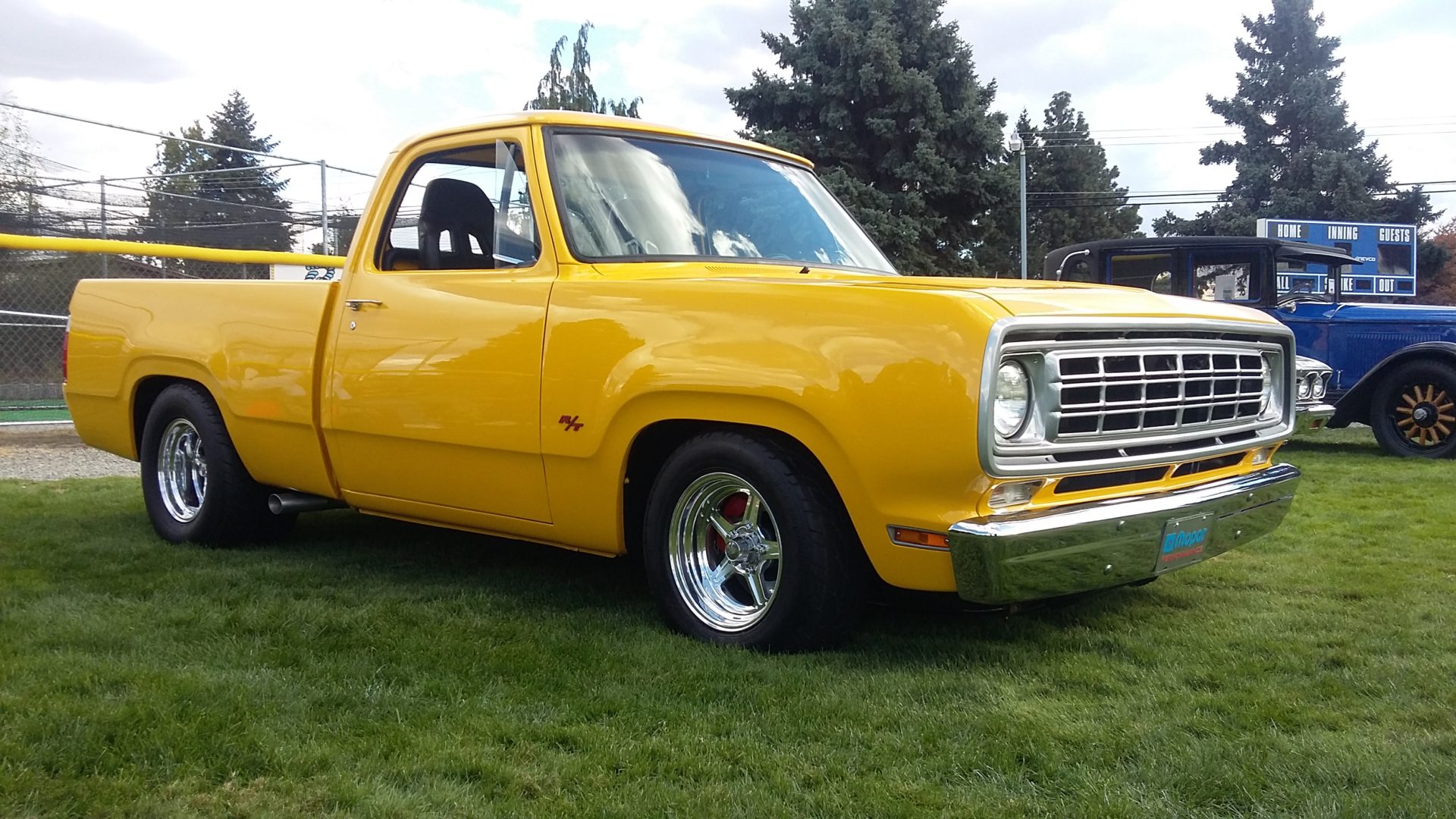

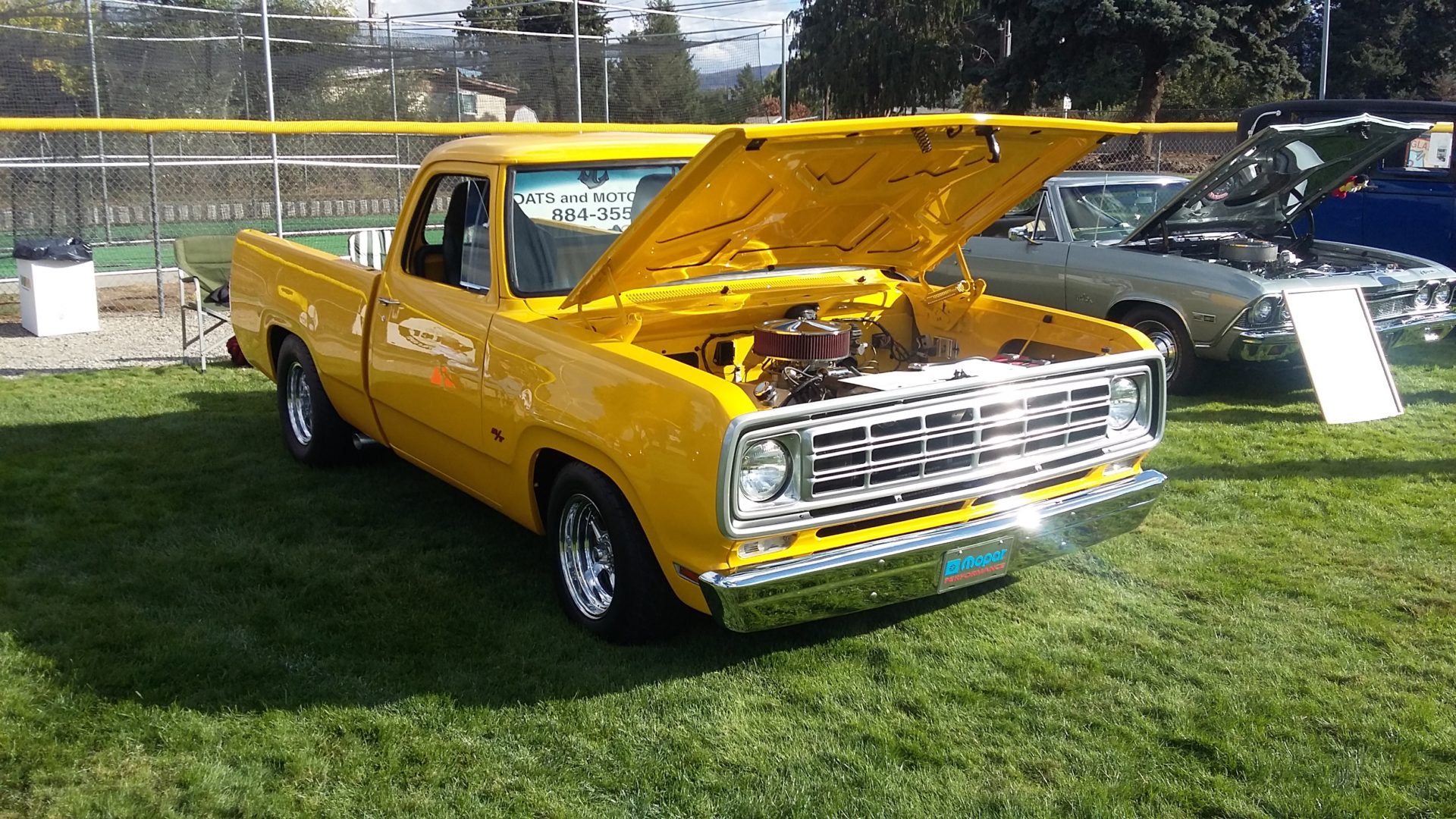

D100 at its first event: Classy Chassis car show

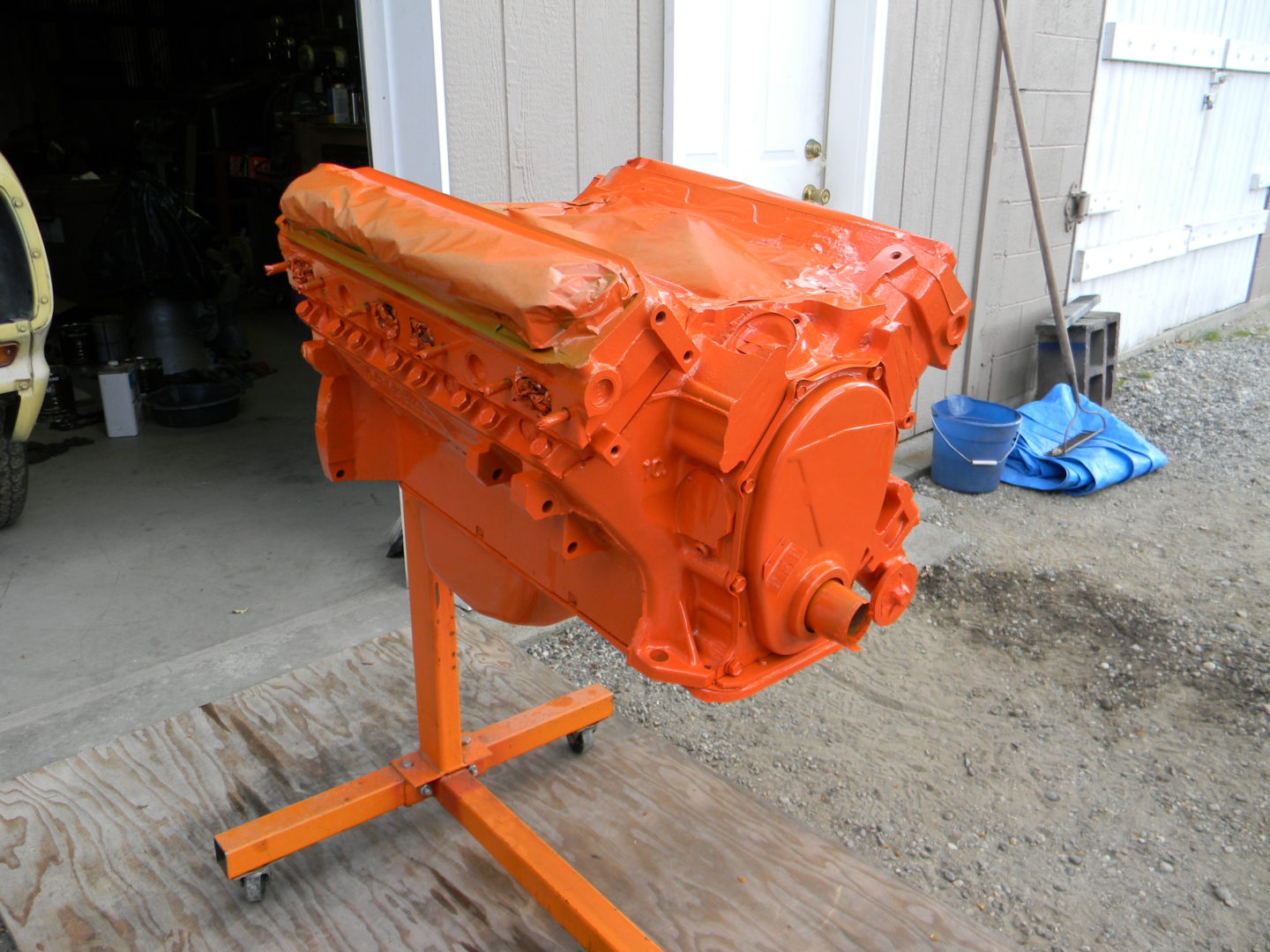

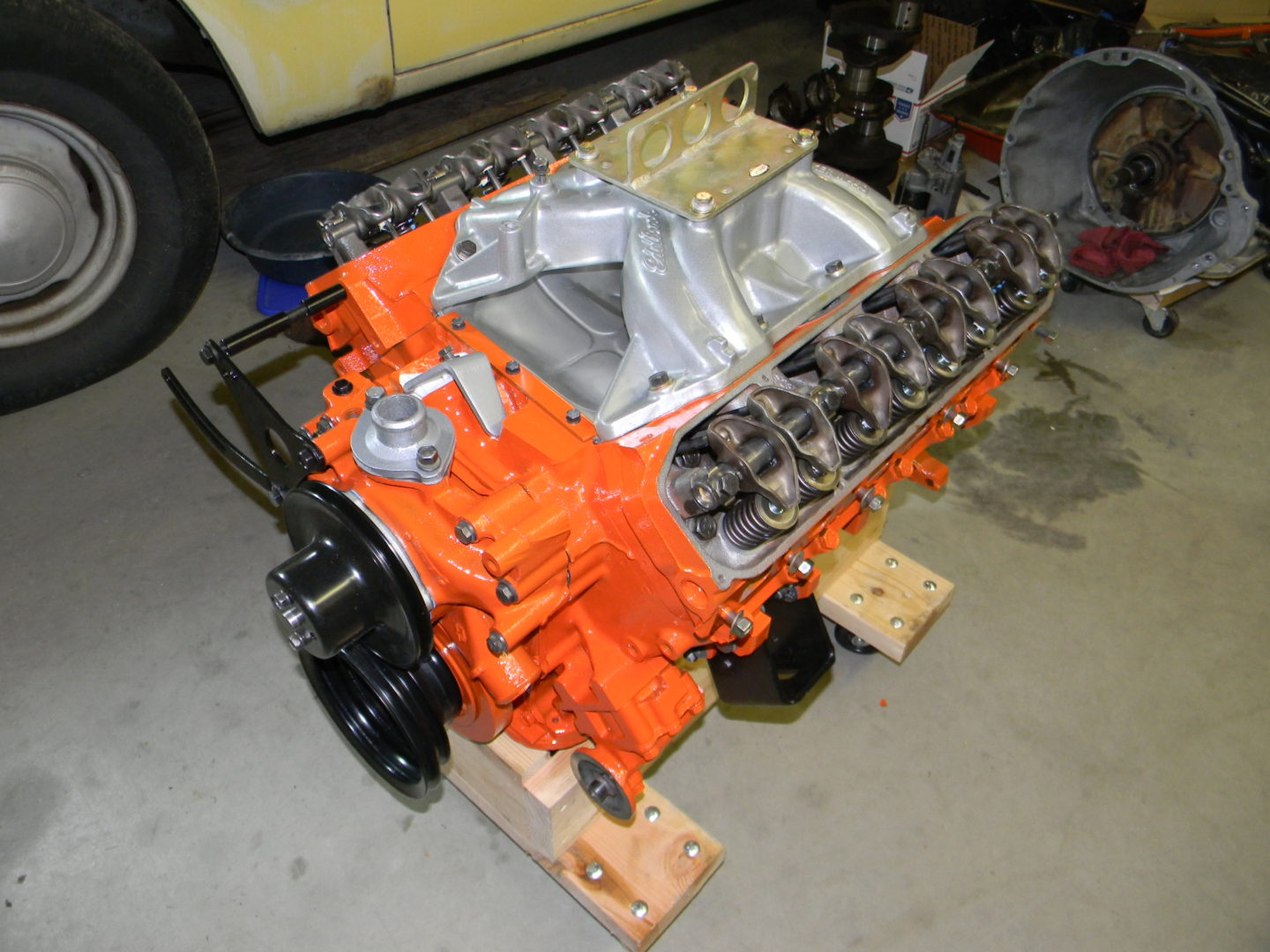

Rebuilt 440 engine with fresh coat of hemi-orange paint
Stripping multiple layers of paint from the hood
Cutting tub and floor to make room for wider tires

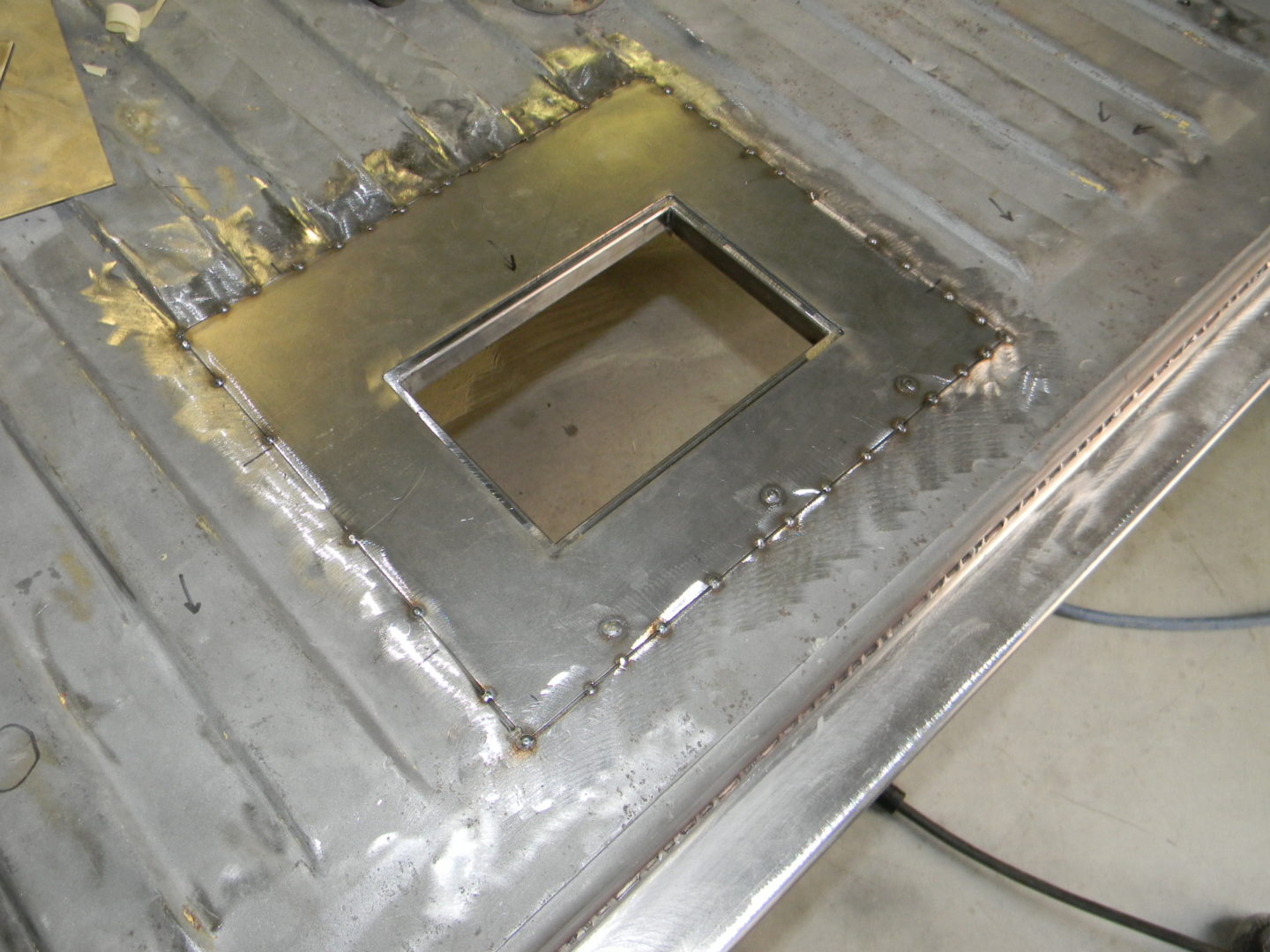

Door hinged for access to fuel filler

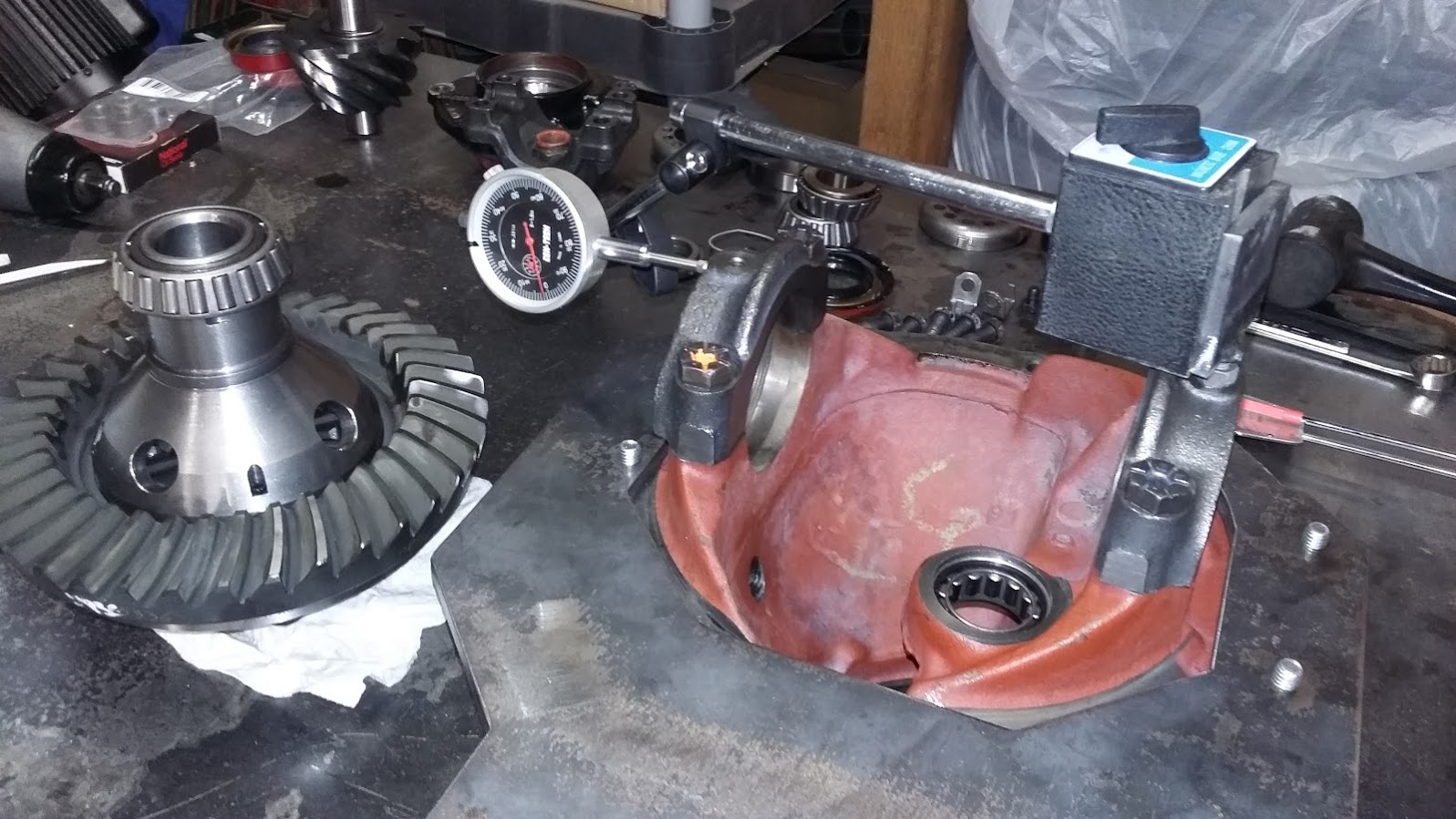

Ford 9" differential with positraction setup

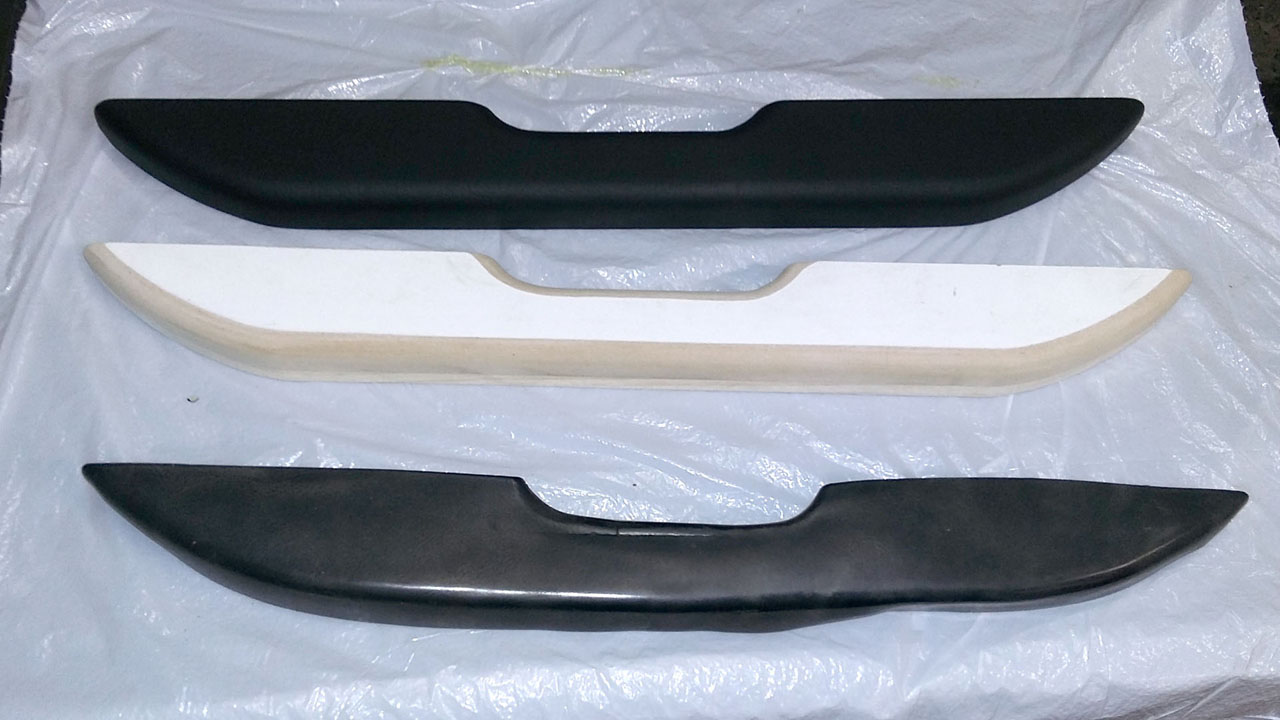

Original arm rests (bottom) are replaced with wood wrapped in faux leather

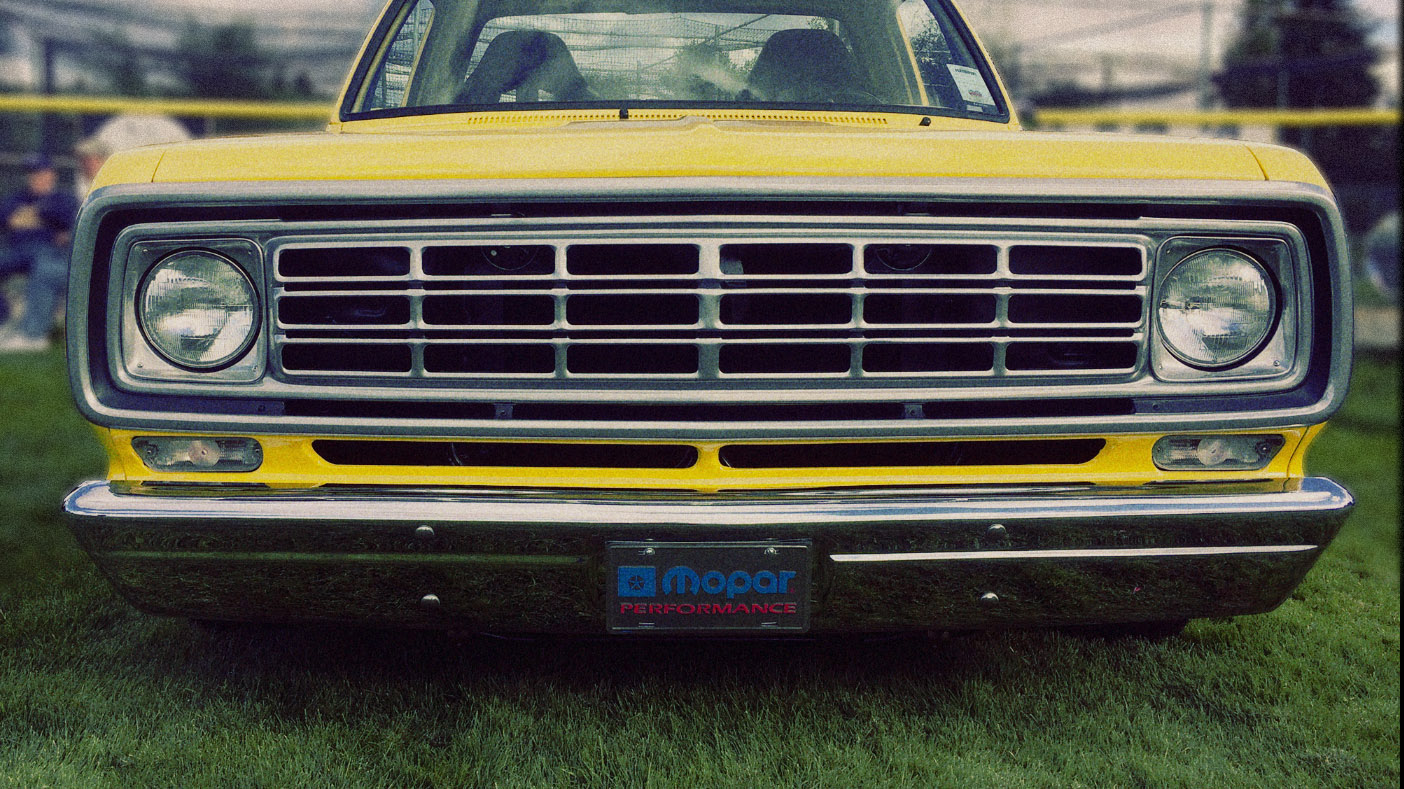

Donor grill straightended, powder coated, and painted. Original on bottom
Dodge D100 - Pro Street
D100 at its first event: Classy Chassis car show
1993 Dodge W250 Diesel Cummins 4x4

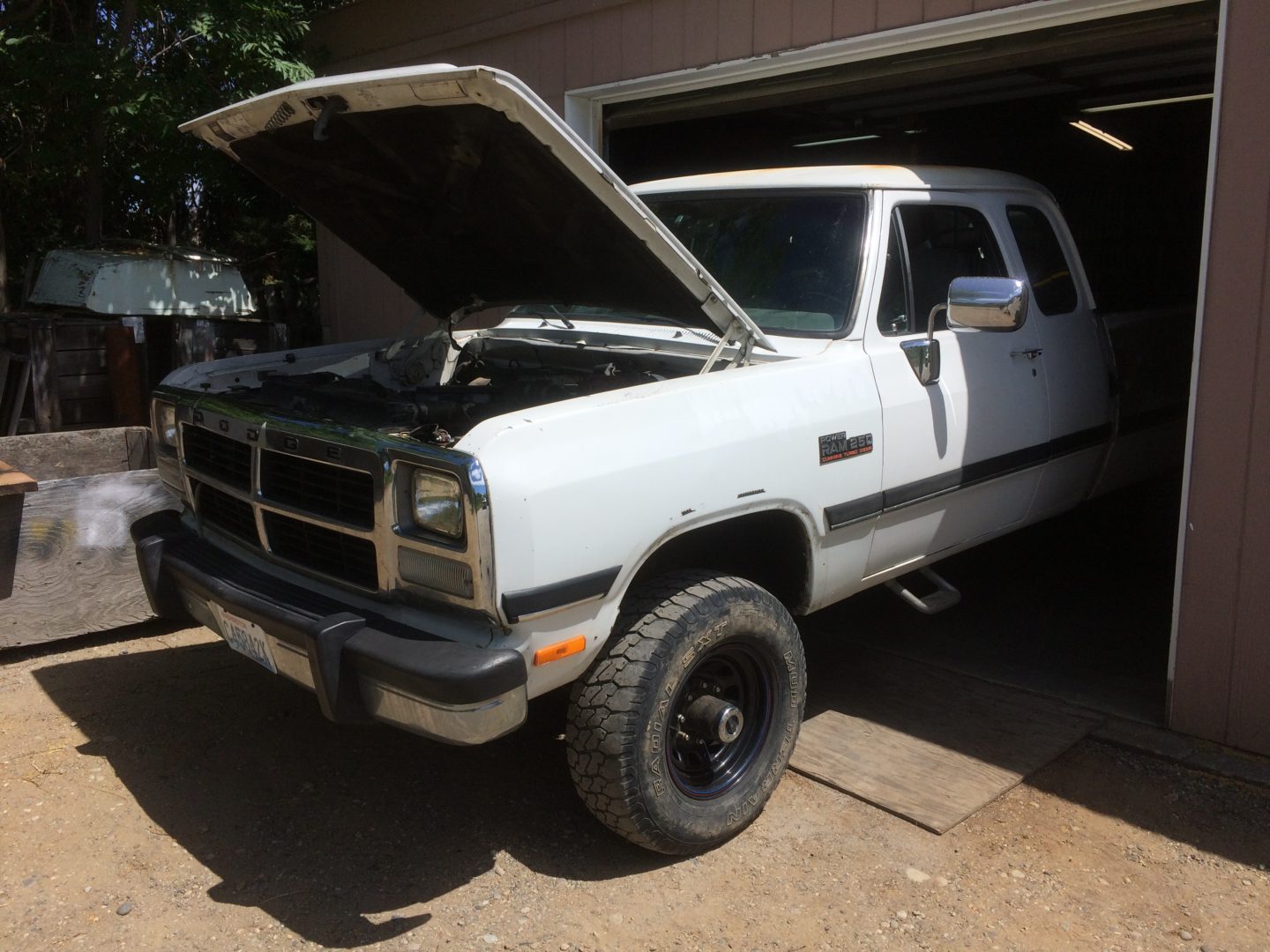

Well worn 4x4 - and this is the good side

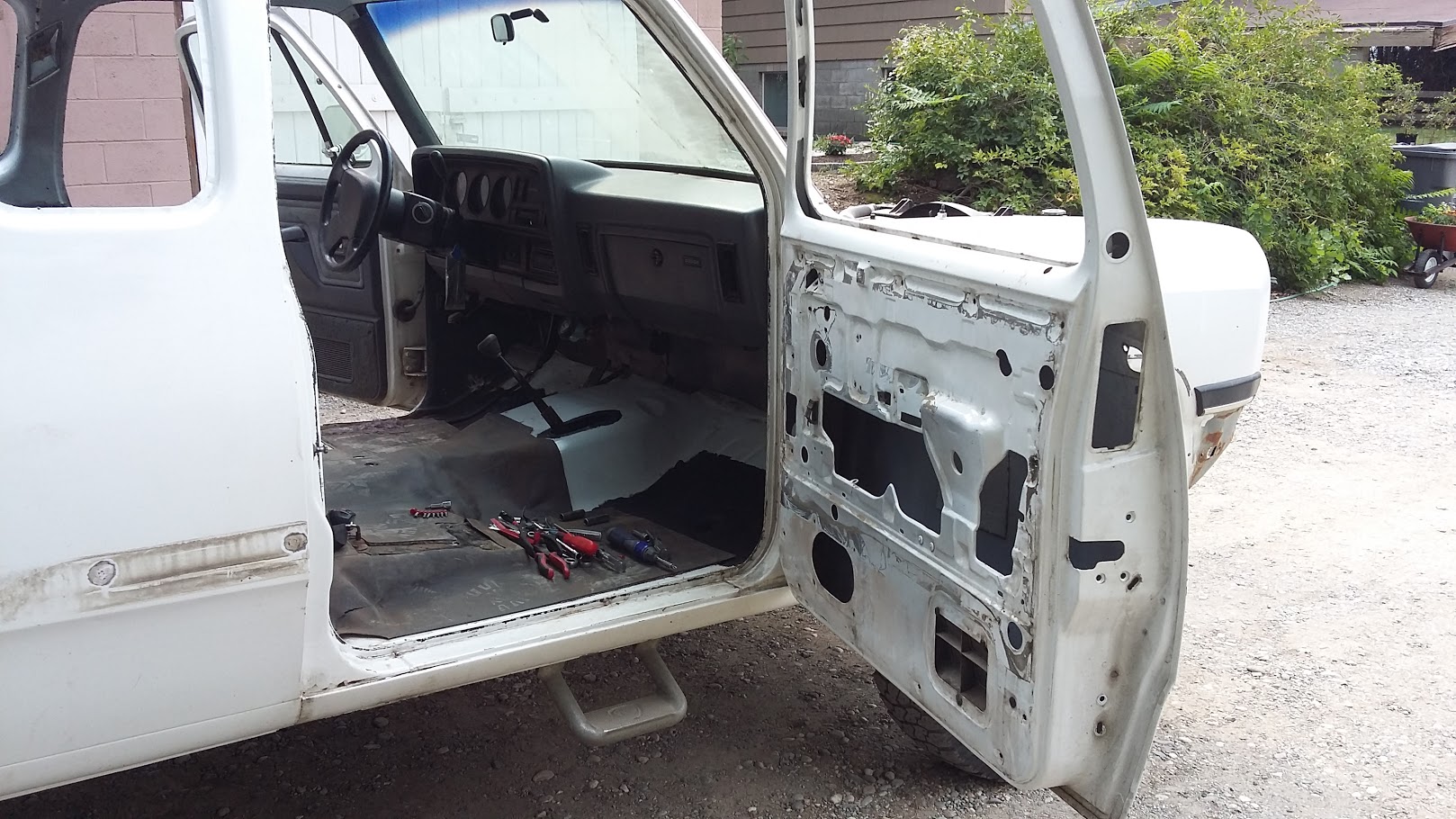

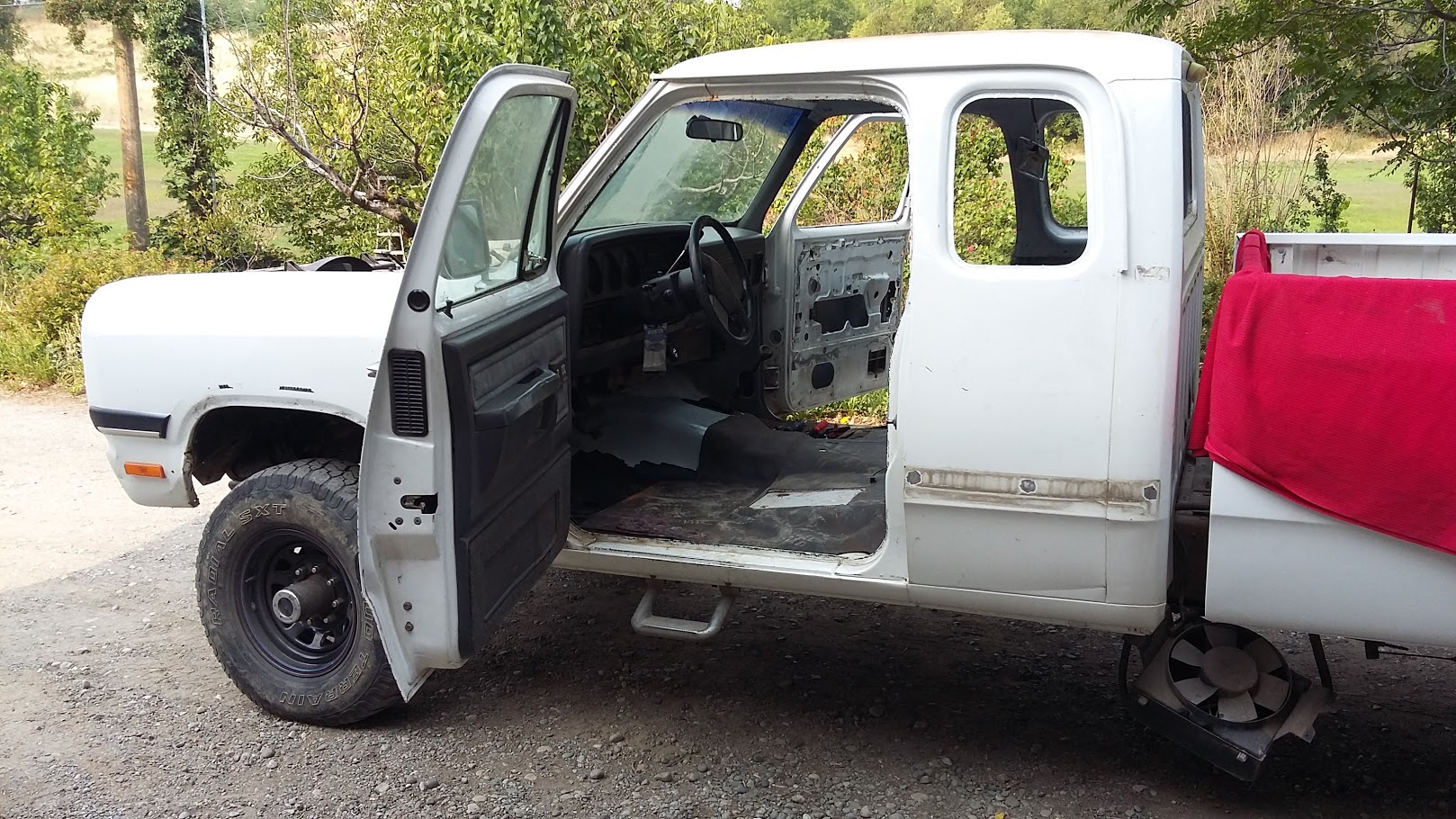

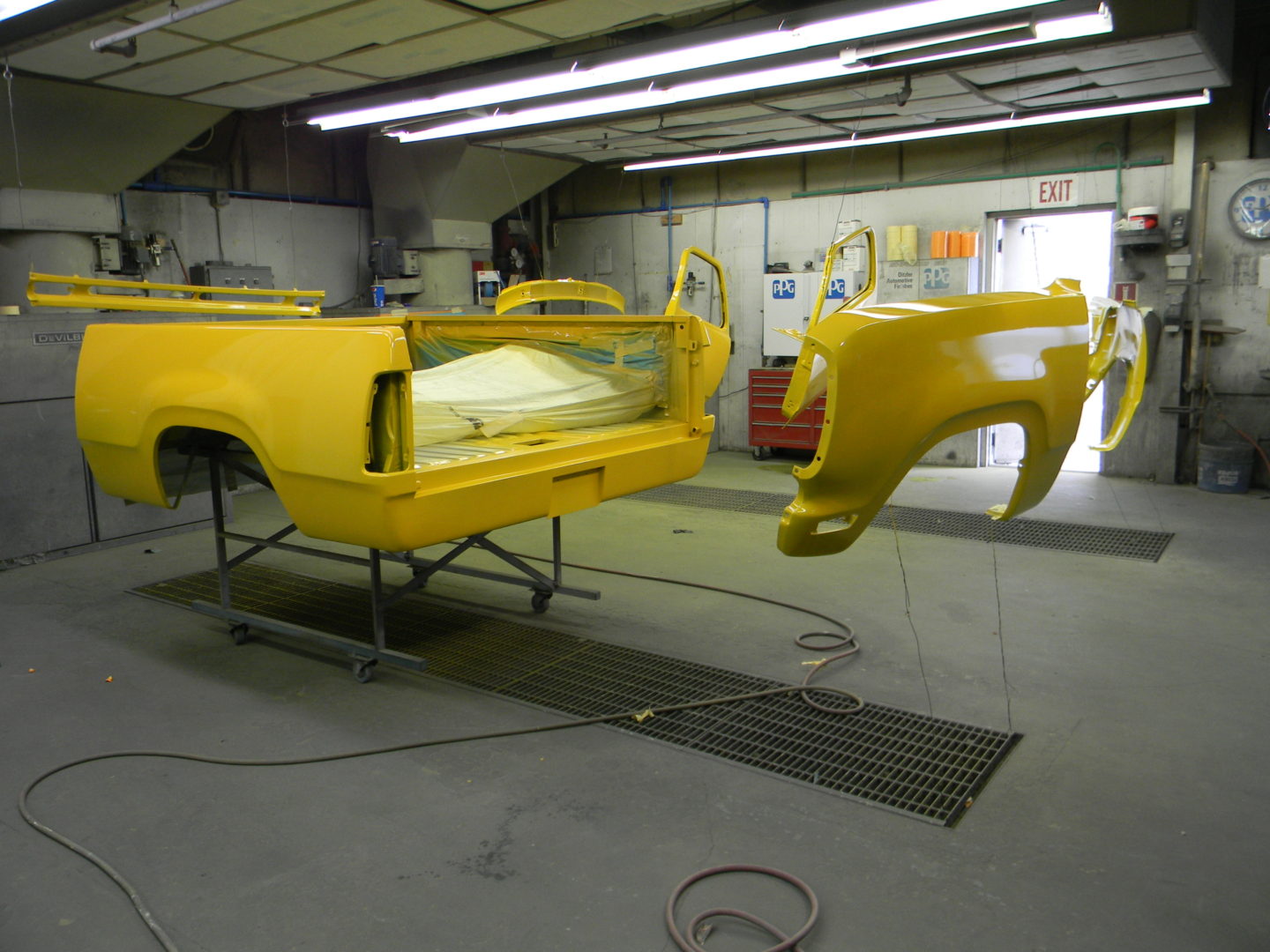

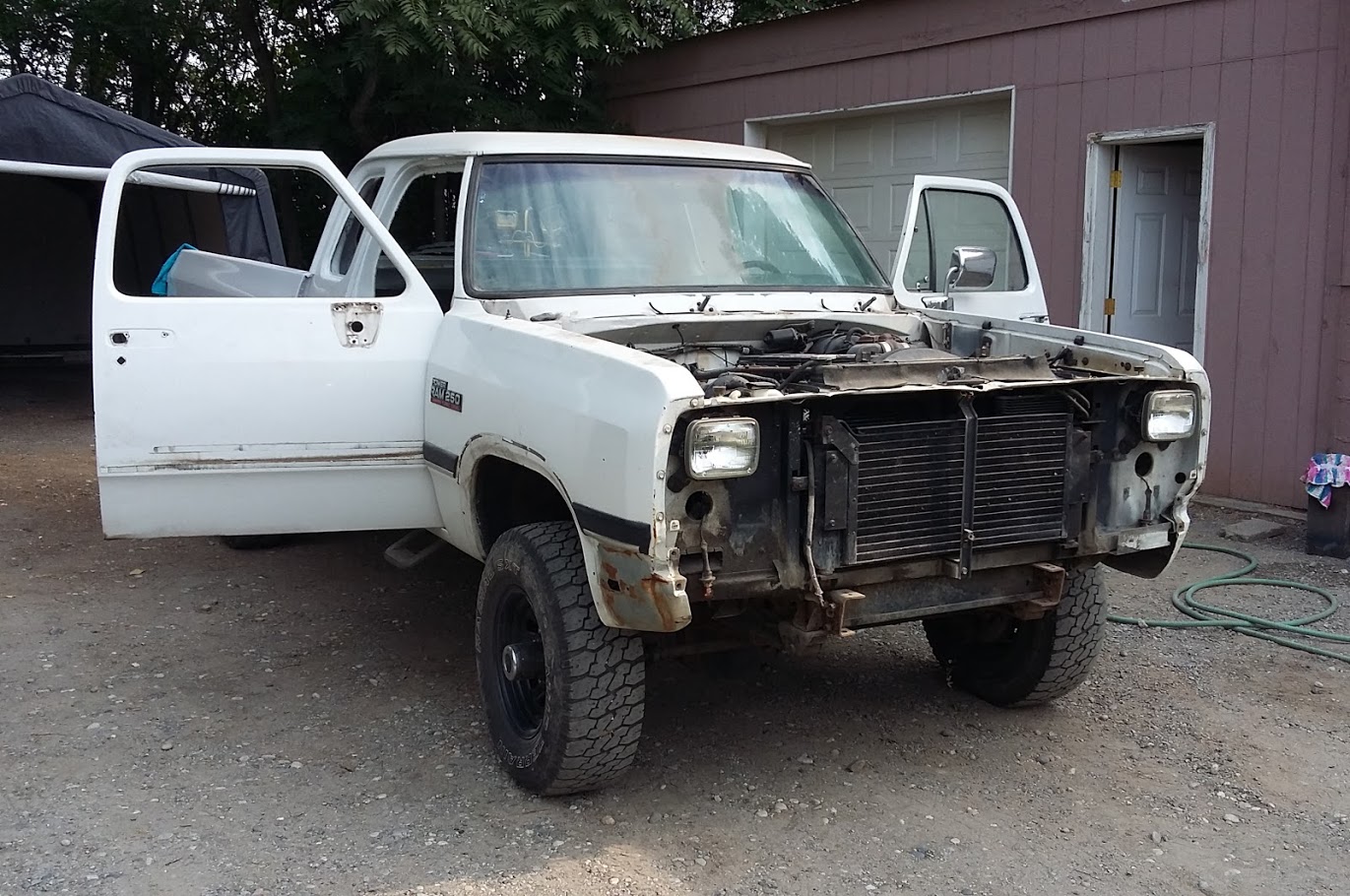

Truck blown apart and gutted for body repairs, and paint

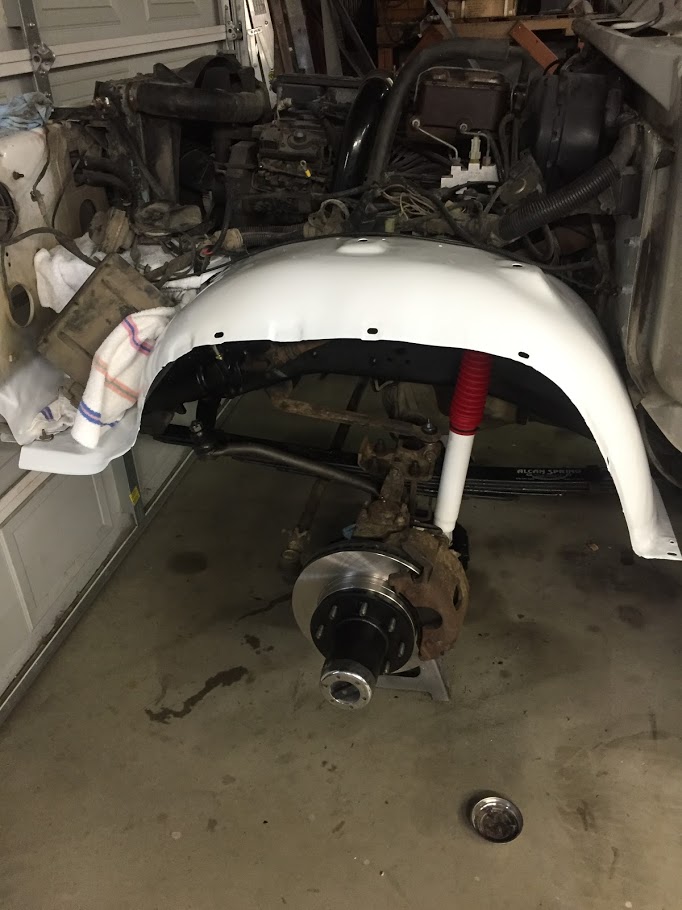

Inner fenders are painted and undercoated. Front includes fresh brakes, performance shocks

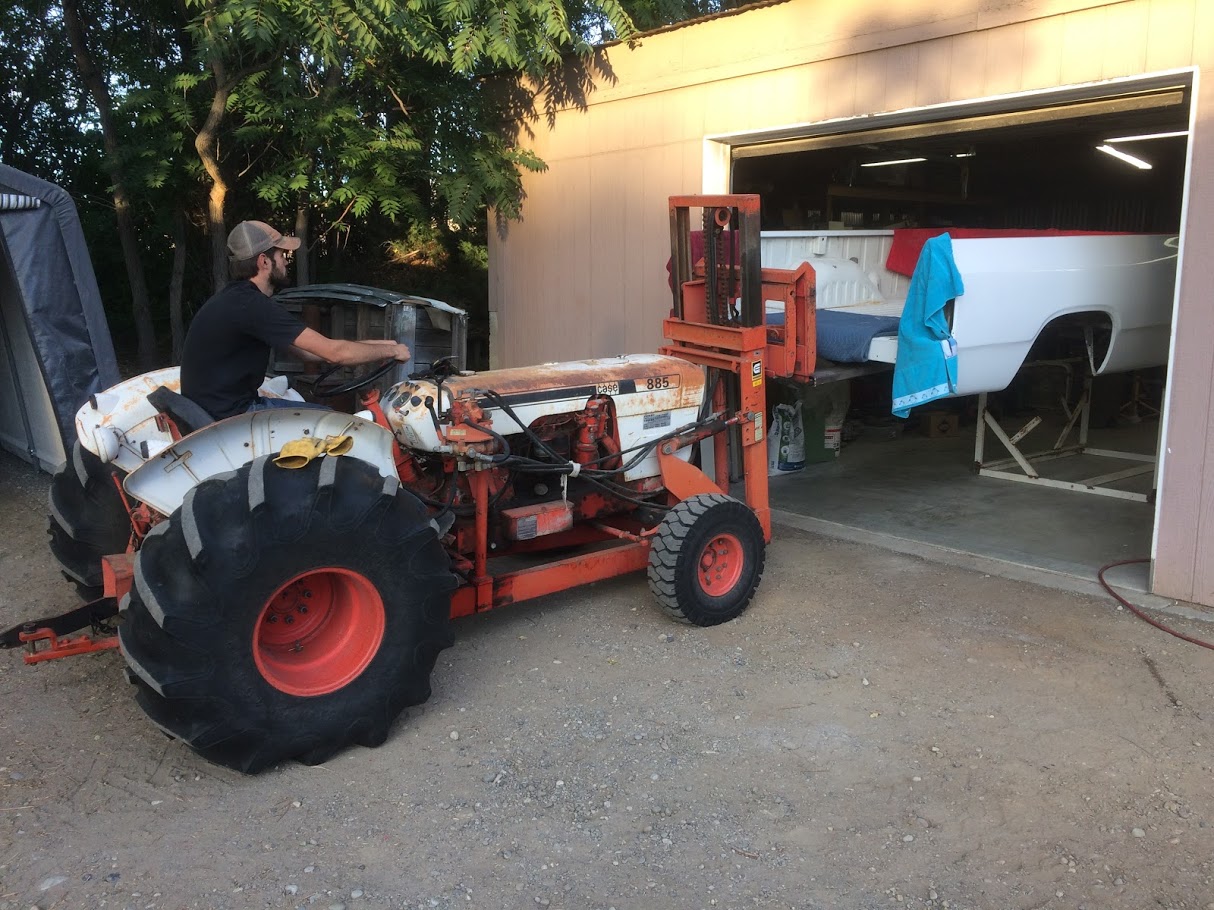

Moving painted bed back into shop to spray liner

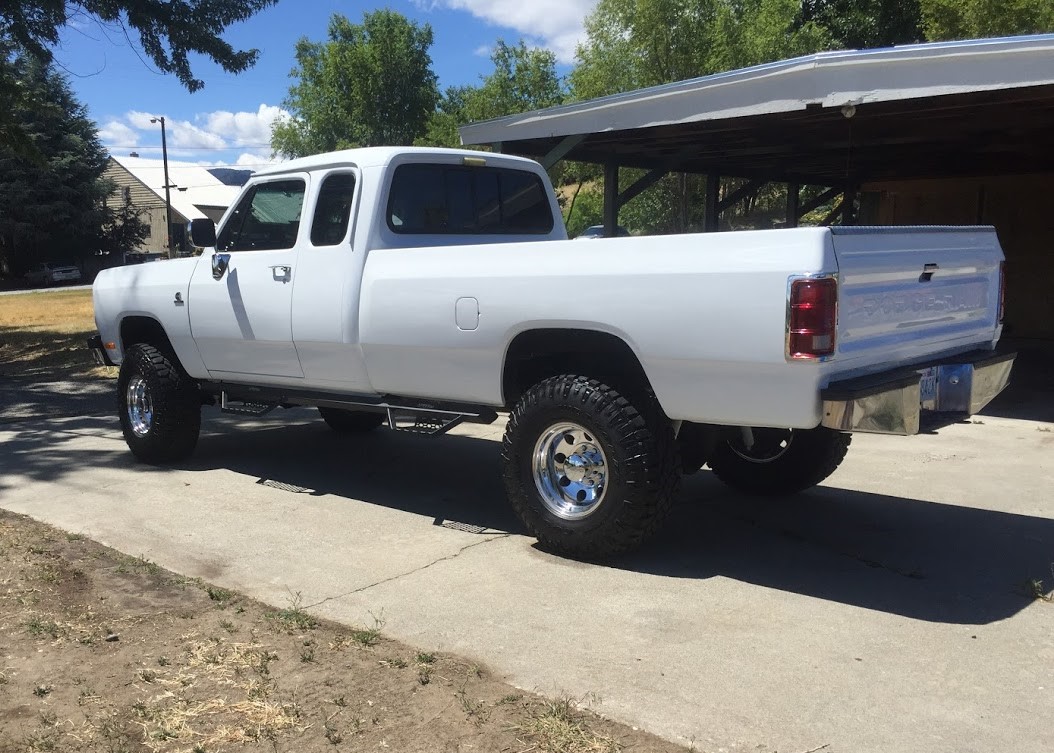

The finished truck gets compliments wherever it goes
Previous crash damage. Also a bullet hole in cab floor
Truck blown apart and gutted for body repairs, and paint

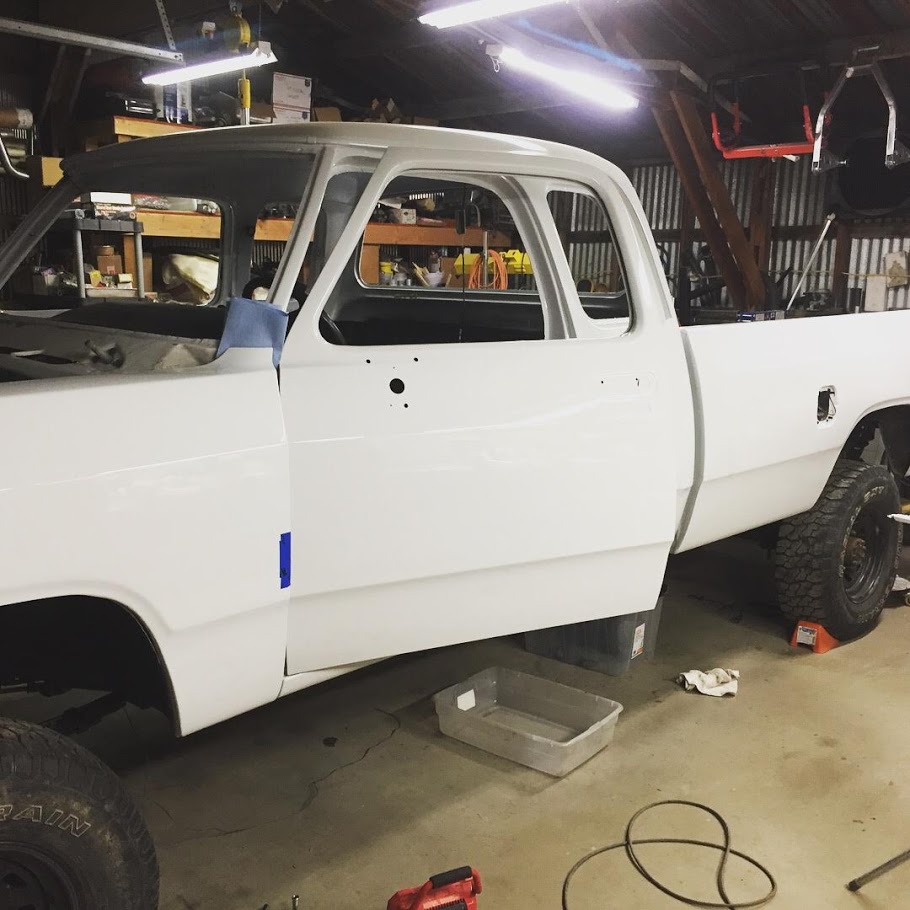

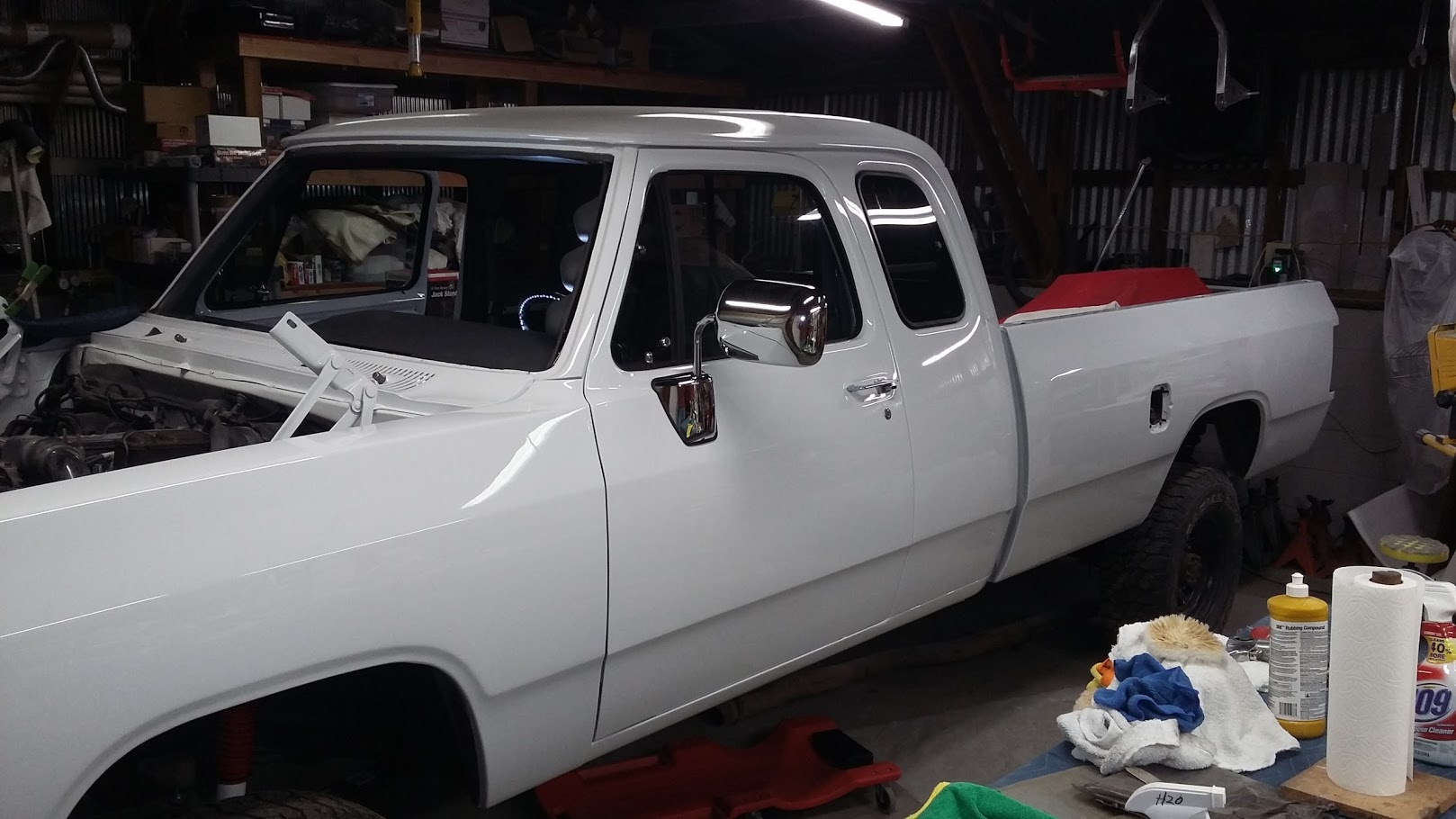

Doors and fenders rehung and fitted
Austin mixes black epoxy as a base for the Raptor Liner bed liner

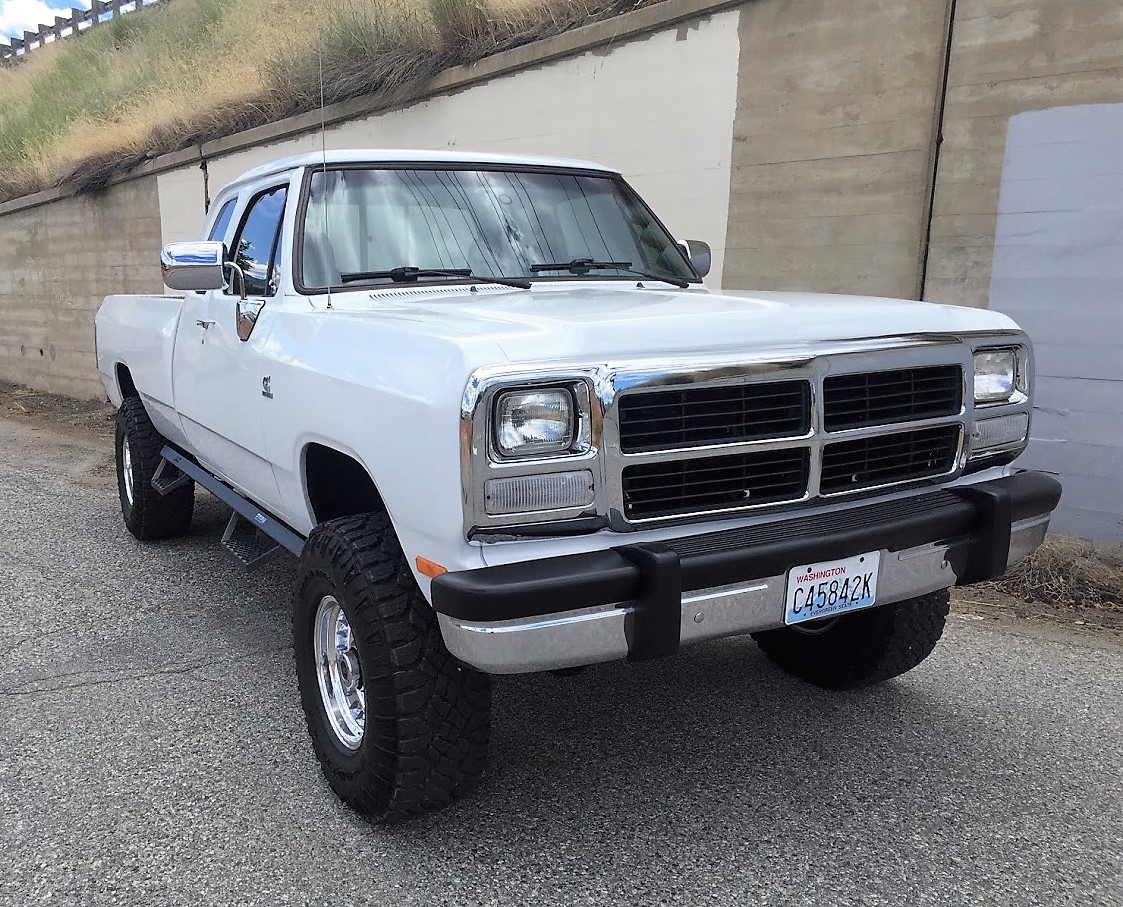

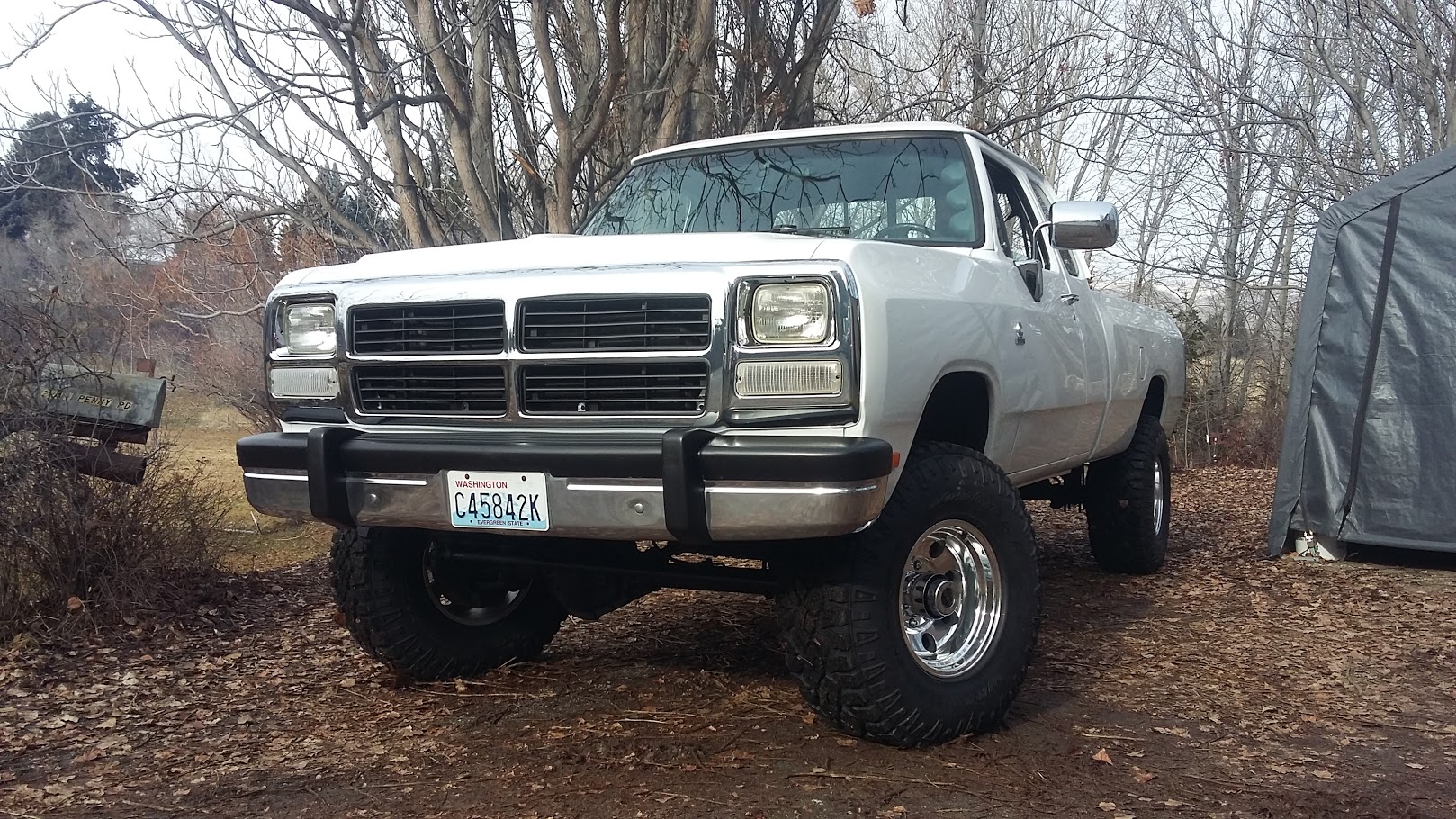

Aggressive good looks
The finished truck gets compliments wherever it goes

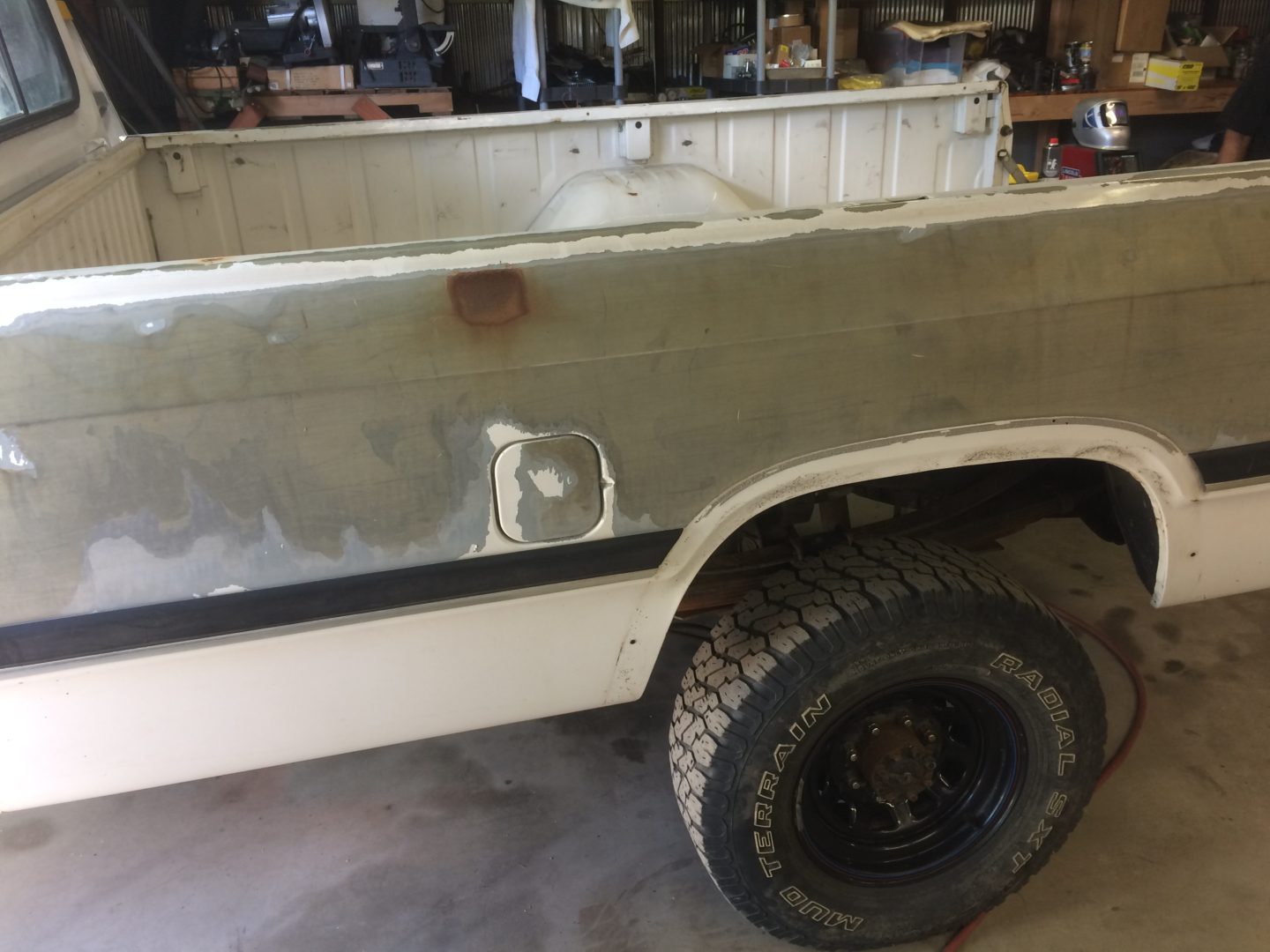

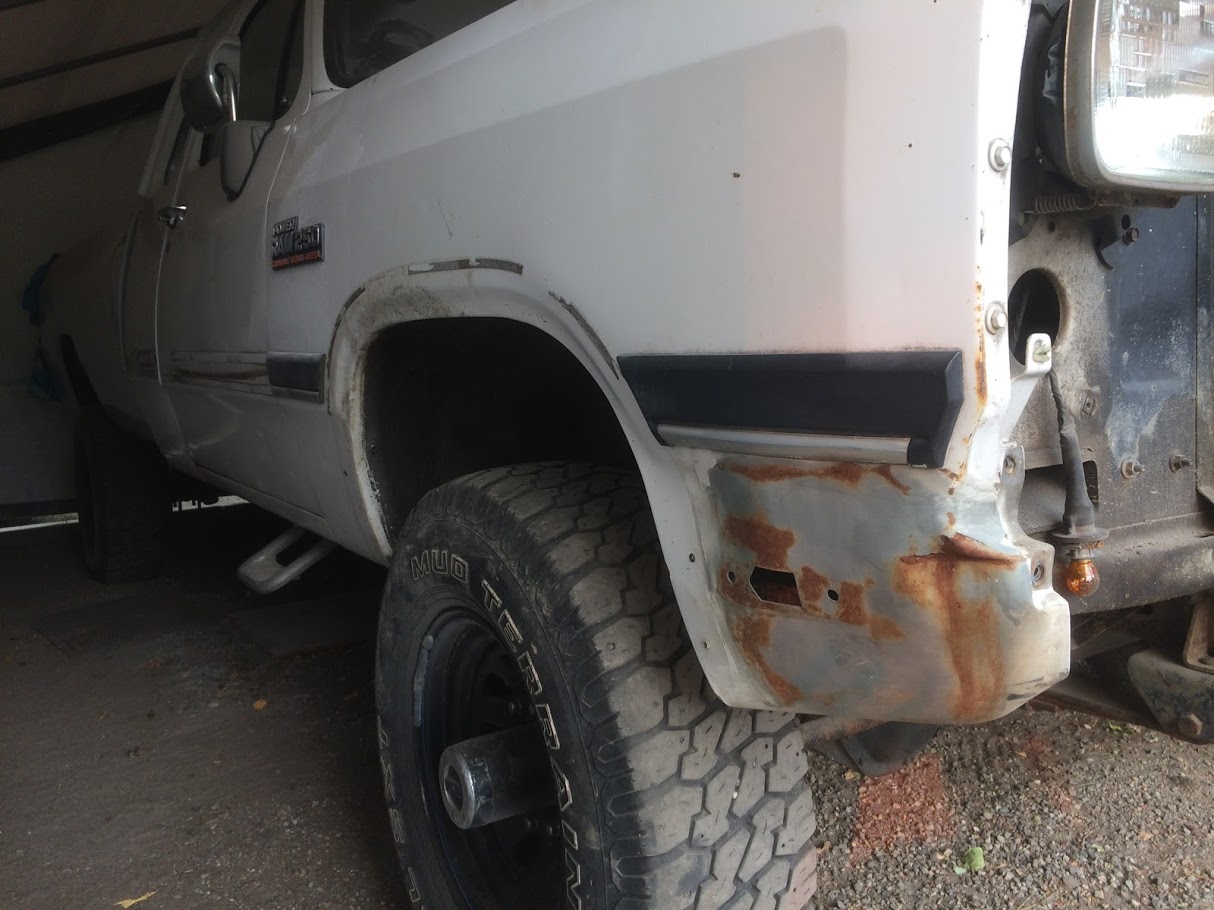

Failed paint and surface rust

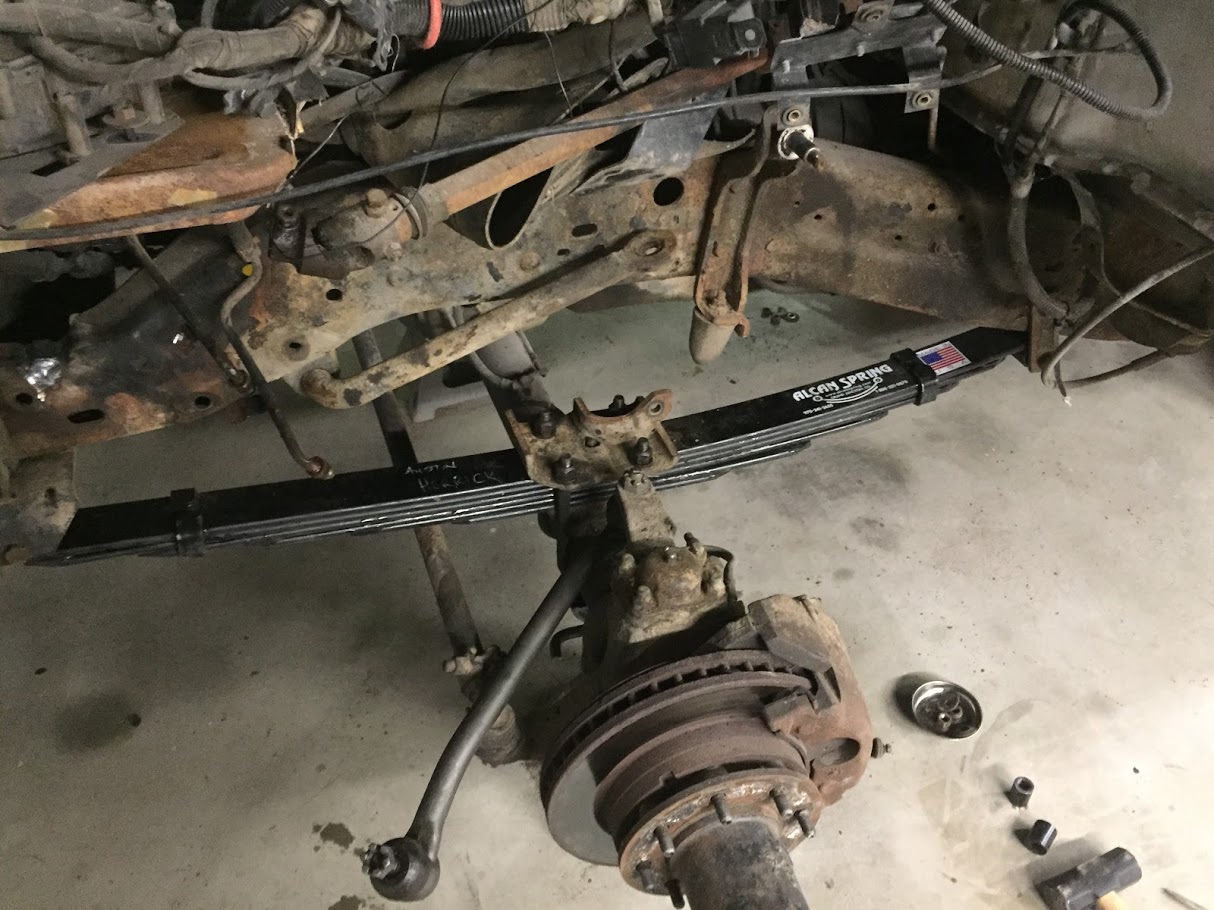

Tired old front leaf springs are replaced to restore proper ride height and performance
Glasss in and fresh exterior accessories go back on
Bed primed prior to spraying Raptor Liner bed liner

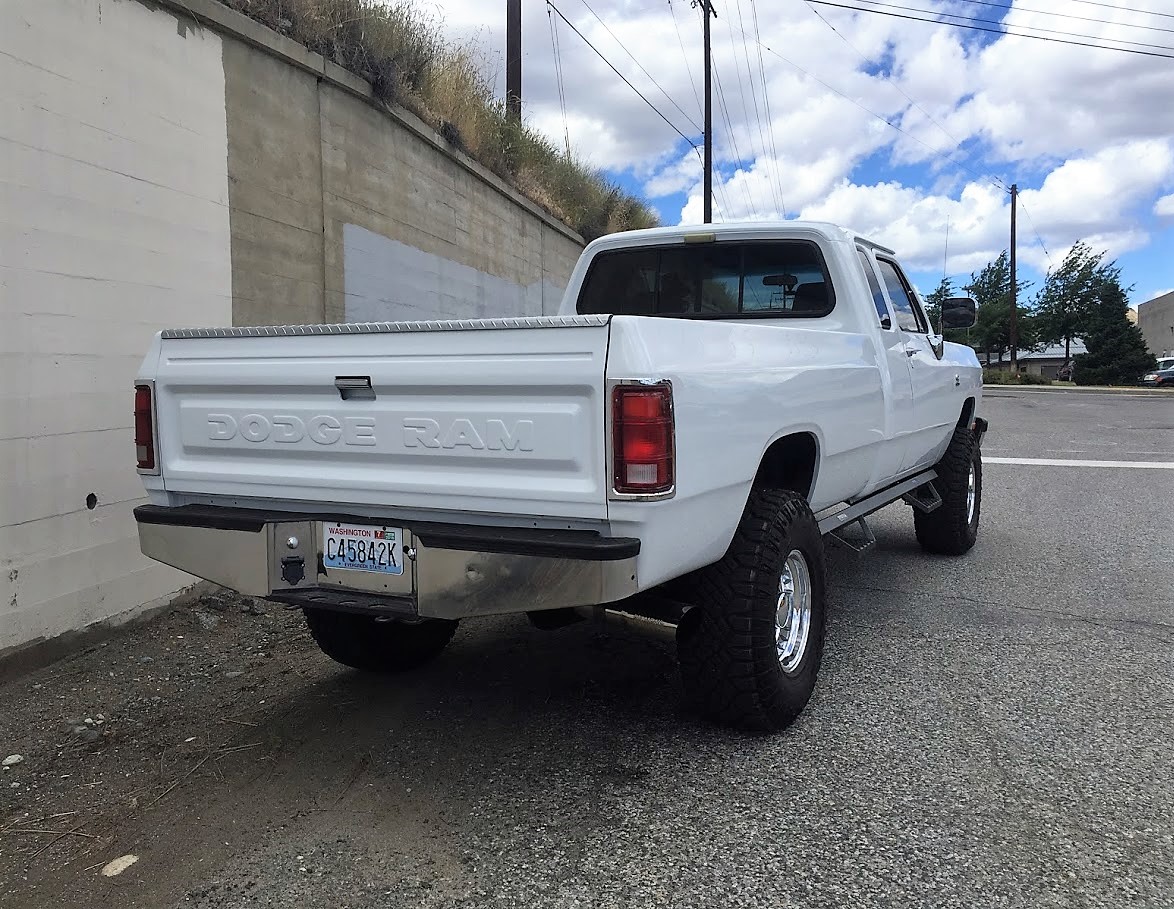

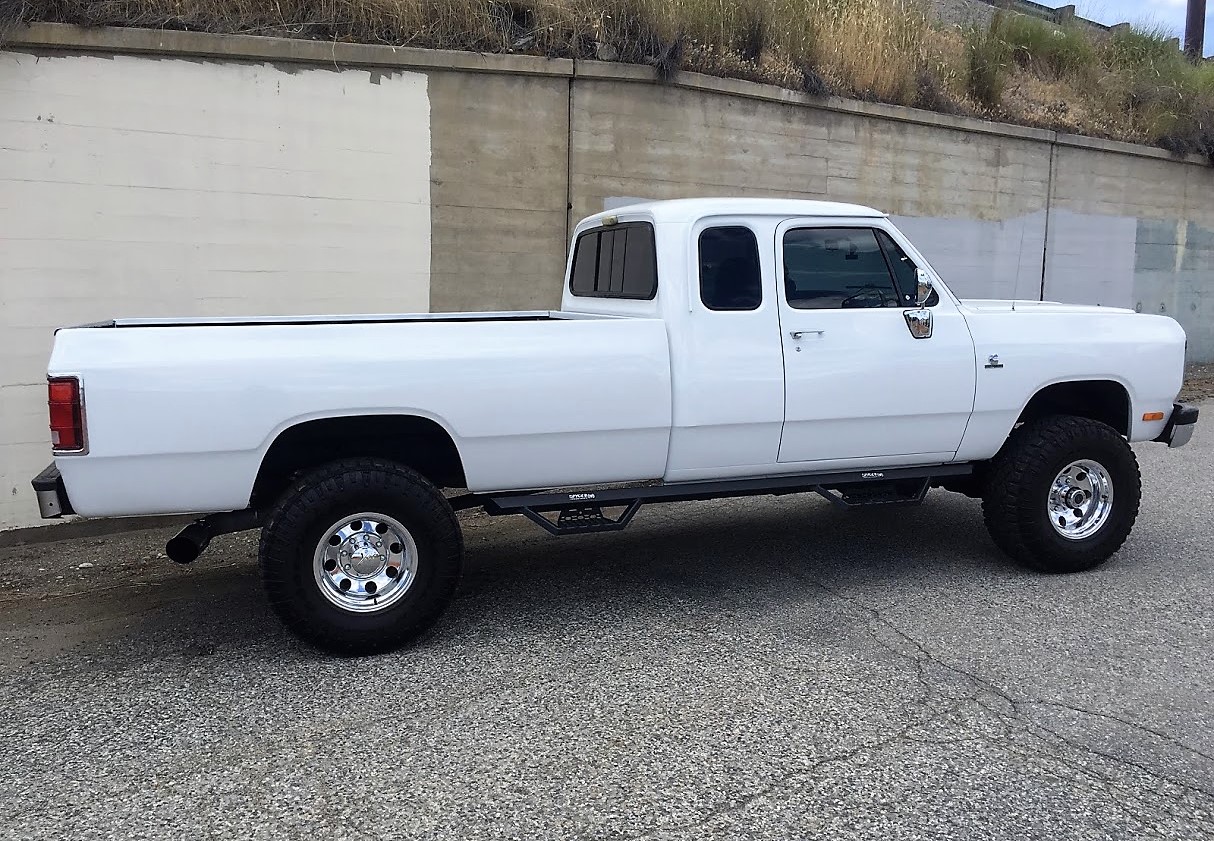

Long bed and extended cab make for a big truck. Note the custom side steps
Truck blown apart and gutted for body repairs, and paint

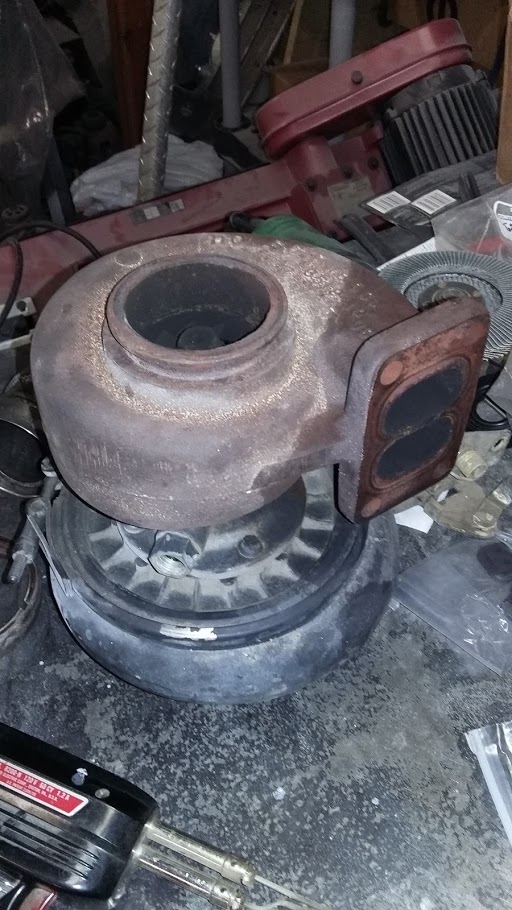

Turbo is removed and upgraded to larger unit. Other eninge mods and upgrades including all new and bigger exhaust

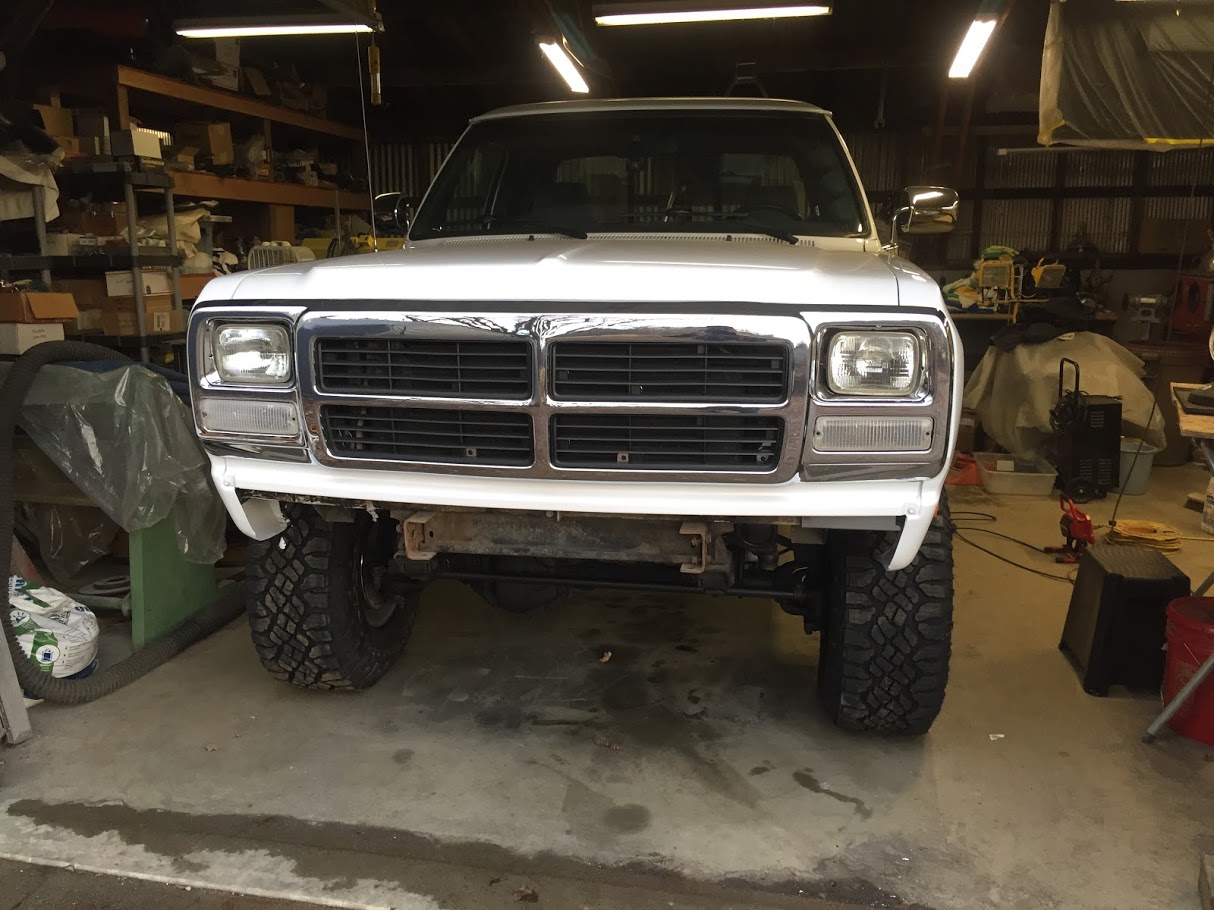

A new grill can make all the difference

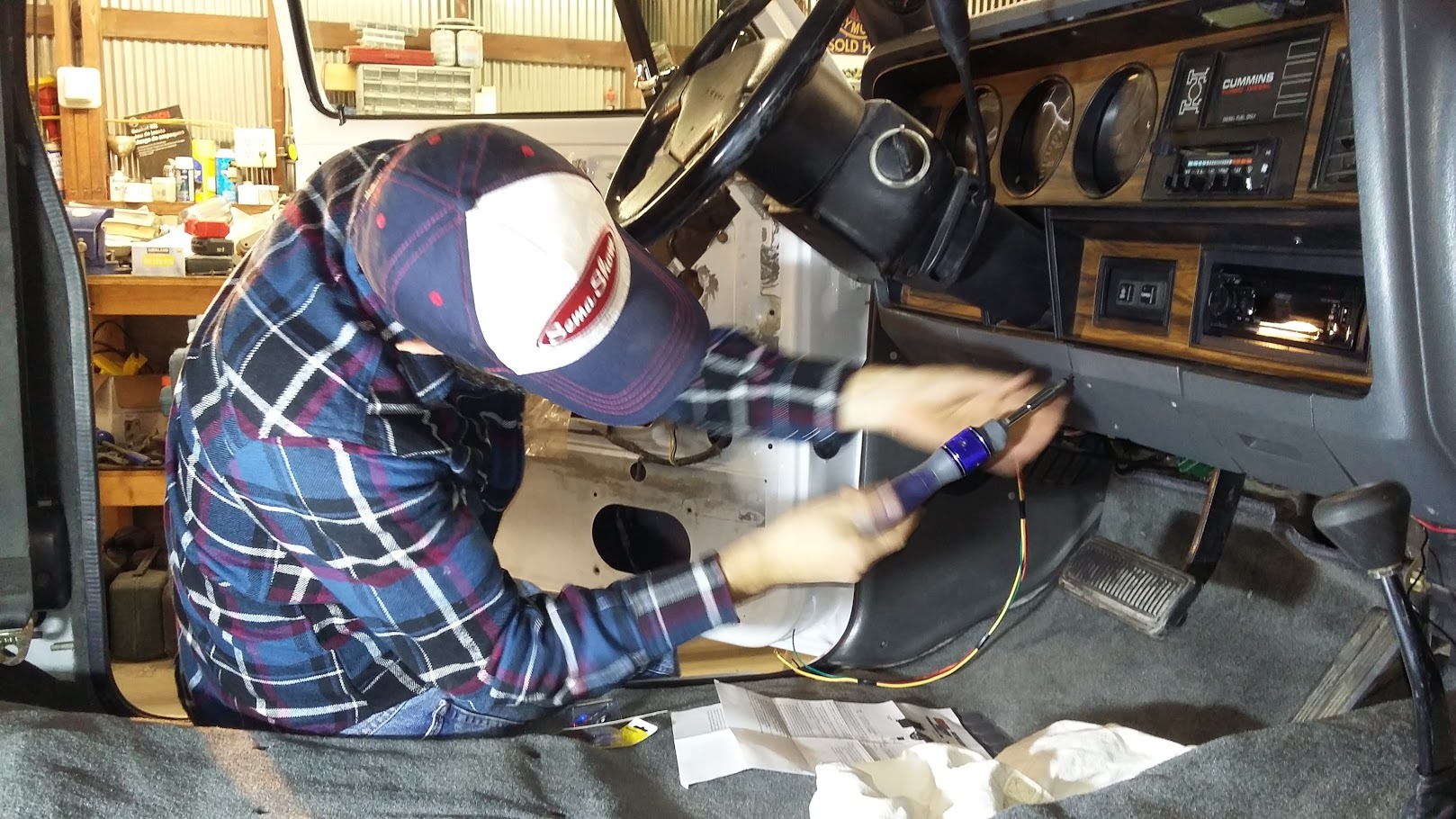

Ausitn reinstalling the restored interior including new carpet and headliner
Clean and mean from all angles
